Builder’s package – Proff 1

900-00BRANSJE1

Working height: 6 / 8m
Platform height: 4 / 6m
Scaffolding length: 9.21m x2 / 15.35m x2
Number of sections length: 2x 3 / 2x 5
Bay length: 3,07m

Load class 3 (200kg/ m²)
Certified

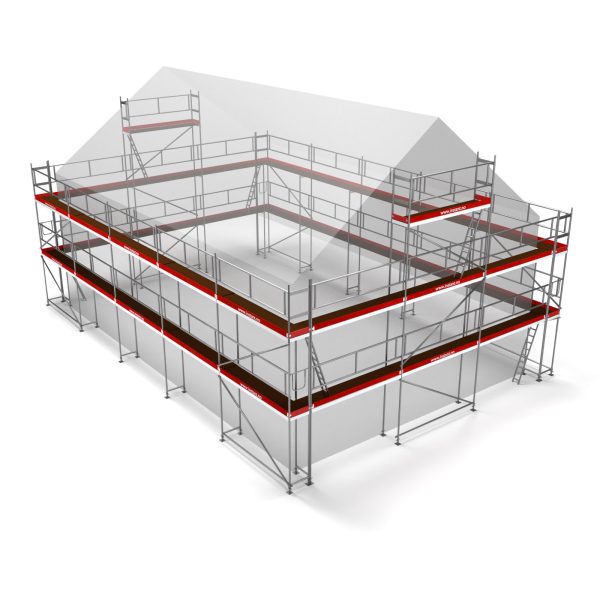

Master builder package for those who need scaffolding around larger buildings – typically detached houses/projects. With this package you can easily cover the gable walls and long sides. The scaffolding can also be mounted in other ways than in the picture, and it is possible to buy extra components for expanding the scaffolding. The scaffolding is complete and there is ladder access on all sides.

Call for Price

Send Request
Area:

Gable: 56m2 with extract x2
Long side: 84m2 with extension x2
Scaffolding length:

Gable: 9.21m x2
Long side: 15.35m x2
Height:

Working height: 6 m / 8 m.
Platform height: 4 m / 6 m.
*Dimensions are without the use of leg adjustment.
Components:

44 pcs Vertical frame 2.0m – aluminium
08 pcs End railing top platform height
12 pcs L-frames
08 pcs End railings other platform height
34 pcs Double aluminium railing
40 pcs Leg adjustment w/footplate 0.6m
28 pcs Platform standard 3.07m length – aluminium profile
06 pcs Platform w/hatch and ladder 3.07m length – aluminium profile
34 pcs Skirting board
12 pcs Skirting board end piece
14 pcs Diagonal stiffener for 3.07m length
06 pcs Horizontal stiffener for 3.07m length
24 pcs Wall bracket
24 pcs Coupling for wall mount
24 pcs Eyebolt
Weight 2200 kg
Dimensions 620 × 160 × 180 cm

With few and simple details, Instant Blitz-Fix is very easy and quick to assemble/disassemble, which in turn increases efficiency and reduces costs. Instant Blitz-Fix is constructed in aluminium with very lightweight components, which contributes to minimal risk when working at height. The scaffolding system is designed with dimensions and specifications that allow the system to be used interchangeably with several other scaffolding brands. Scaffolding is type-approved with load class 3 (200kg/m2).

Instant Blitz-Fix facade scaffolding is manufactured under strict quality requirements for both raw materials and production. The scaffolding is tested and certified by a leading certification body in the EU.

The scaffolding system can be recommended for the vast majority of façade jobs. Construction work, maintenance, rehabilitation, plumbing, insulation work, carpentry, etc. The scaffolding is equally suitable for tradesmen and homeowners.

Key facts about Instant Blitz-Fix facade scaffolding:
– Type approved with load class 3 (200 kg/m2).
– Maximum platform height: 24m (without calculation)
– Base scaffolding span: 3,07m. Complete details also for scaffolding trusses: 0.50m, 0.73m, 1.09m, 1.57m, 2.07m and 2.57m
– Basic vertical frame: 2.00m x 0.73m. Levelling frames: 0.66m, 1.00m and 1.50m
– Double railings in aluminium or single railings in galvanised steel.
– Platform with aluminium square profiles and platform plate in 12mm non-slip waterproof veneer. Also available with aluminium platform plate.
– Access via platform with hatch and integrated inclined ladder or alternatively hatch and loose ladder.
– Full range of additional equipment such as external and internal brackets, mesh gratings for extra protection during roof work, various types of couplings, truss girders, pedestrian passage frames, etc.
