Roof railing – complete package

N/A

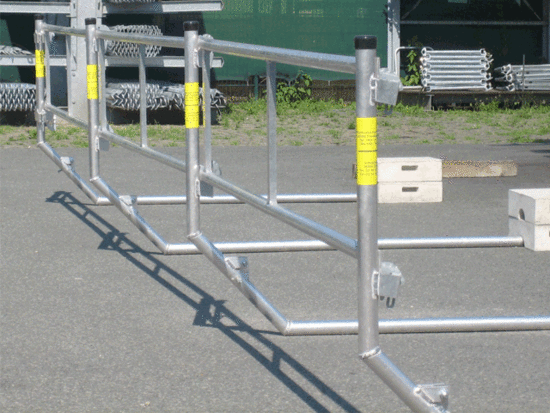

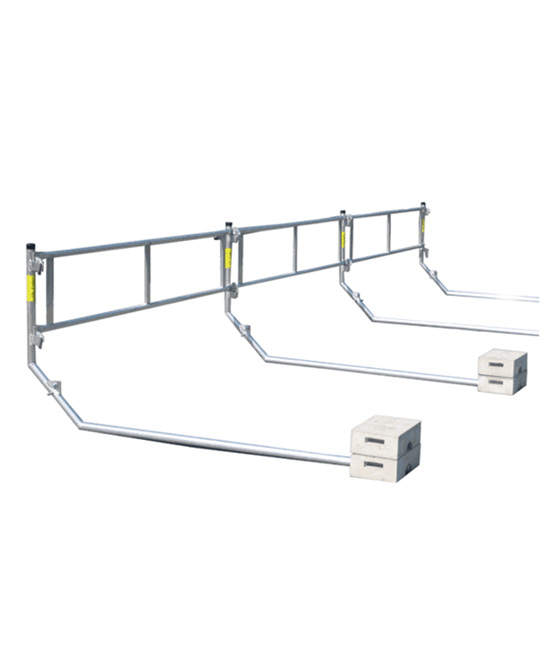

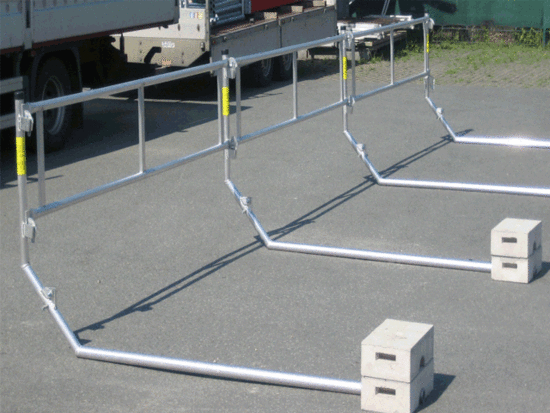

Instant roof railing systems are robust and easy to use. Our roof protection system for flat roofs is GS-approved and type-approved, giving you easy and almost tool-free installation. The posts are delivered with both wedge fasteners and rocker bolts, and this makes it possible to combine the system with the double railing that is common for Instant facade scaffolding and similar scaffolding systems.

Call for Price

Send Request
Length

15,35m, 21,49m, 30,7m, 49,12m

Components:

15,35m:
06pcs post
00pcs corner post
05pcs double railings in aluminum. (3,07m)
01pcs stiffener frame
12pcs counterweights 25 kg
…………….
21,49m:
07pcs post
01pcs corner post
07pcs double railings in aluminum. (3,07 m)
01pcs stiffener frame
16 pcs counterweight 25 kg
………………….
30,70m:
10pcs post
01pcs corner post
10pcs double railings in aluminum. (3,07 m)
01pcs stiffener frame
22pcs counterweights 25 kg
……………
49,12 pcs
15pcs post
02pcs corner post
16pcs double railings in aluminum. (3,07 m)
01pcs stiffener frame
34pcs counterweight 25 kg

Weight 214 kg
Dimensions 365 × 80 × 80 cm

Our roof railing system for flat roofs is GS-approved and type-approved, giving you easy and almost tool-free installation. The posts are delivered with both wedge fasteners and rocker bolts, and this makes it possible to combine the system with the double railing that is common for scaffolding systems.

By stiffening the frame, the posts can be tilted up so that you can freely perform roofing work without obstacles where the posts are located. The corner posts are equipped with 6 wedge fasteners so that the corners of the railing can also be mounted quickly, and you avoid the time-consuming task of screwing on couplings. With this system, you can ensure a flat roof in a cost-effective and time-saving way. Each item is marked in accordance with current regulations. The system is supplied with installation and operating instructions.

System components:
Post (68010-K)
Corner post (68010-KE)
Double railing in aluminum. (1.57, 2.07, 2.57 or 3.07 m length)

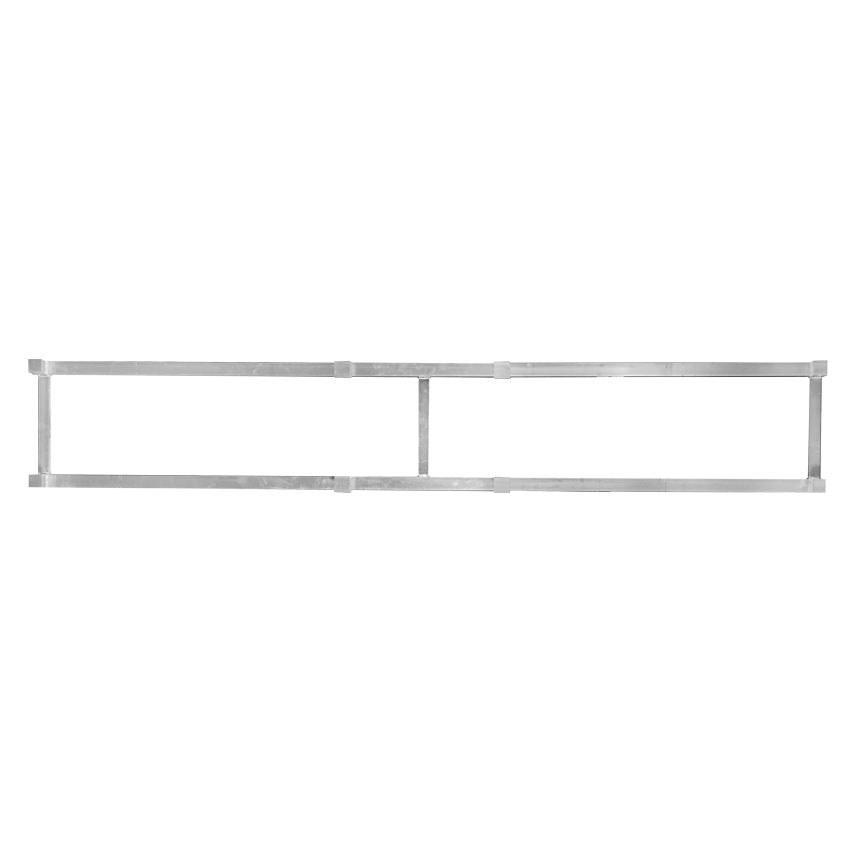

Stiffener frame (68010-AK)
Counterweight 25 kg (68010-B)
Safety device (68010-RS)
