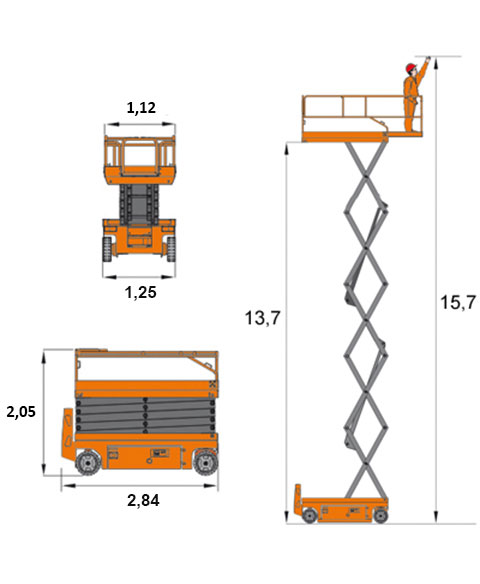

| Working height max | 15,7m |
|---|---|
| Platform height max | 13,7m |
| Lifting capacity | 200kg |
| Lifting capacity on extension | 113kg |
| Maximum number of people in the lift | 2 |
| Dimension (LxW) | 2,84 x 1,25m |
| Push | 0,9m |
| Ground clearance total / raised | 10 cm |
| Turning radius inside / outside | 0m / 2,65m |
| Speed, high / low (km / h) | 4 / 0,8 |
| Rise ability max | 25% |
| Raise / lower time (sec) | 88 / 60 |
| Deck | marking-free |
| Drive | 2WD |
| Power source | 4×12 V / 300 Ah |
| Length | 2,84m |
| Width | 1,25m |
| Height (railing up / down) | 2,59m/2,05m |
| Weight | 3180kg |
| Weight | 3180 kg |
| Dimensions | 284 × 125 × 259 cm |
Sale

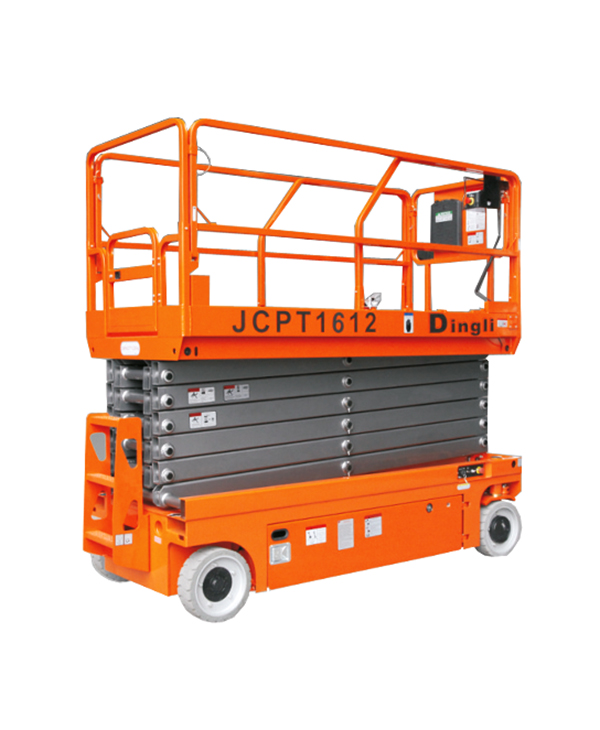

Dingli JCPT1612 HD – 16m (demo)
Demo lift – like new.
The scissor lift Dingli JCPT1612DC is made for indoor use and maintenance tasks. The lift offers calm and stable driving, which can also be used at full height.
This scissor lift can give you a working height of up to an incredible 15.7 m, and has a platform that can be loaded with up to 200 kg. In addition, the platform can be extended by 0.9 m. The extendable part of the platform can be loaded with up to 113 kg.
Call for Price
Send RequestStandard equipment:
- Battery powered
- Proportional driving
- 2WD
- Slide on platform
- Foldable railing
- Marking-free wheels
- Automatic braking system
- Automatic braking system
- Emergency stop
- Self-diagnosis System
- Self-diagnosis System
- Motion alarm
- Hour meter
- Forklift pockets
- Warning light
- Integrated battery charger
- CE marked
