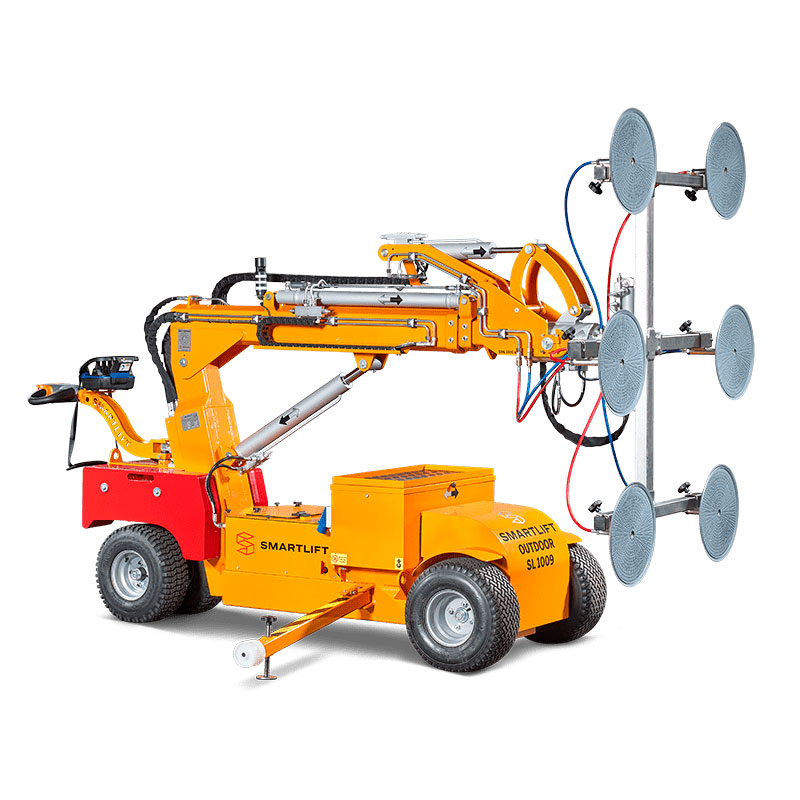

Smartlift SL 1009 Outdoor

The Smartlift SL1009 Outdoor is our most advanced lift that combines maximum lifting power and reach. The machine can lift a maximum of 1000kg and has a maximum lifting height of 4.65m.

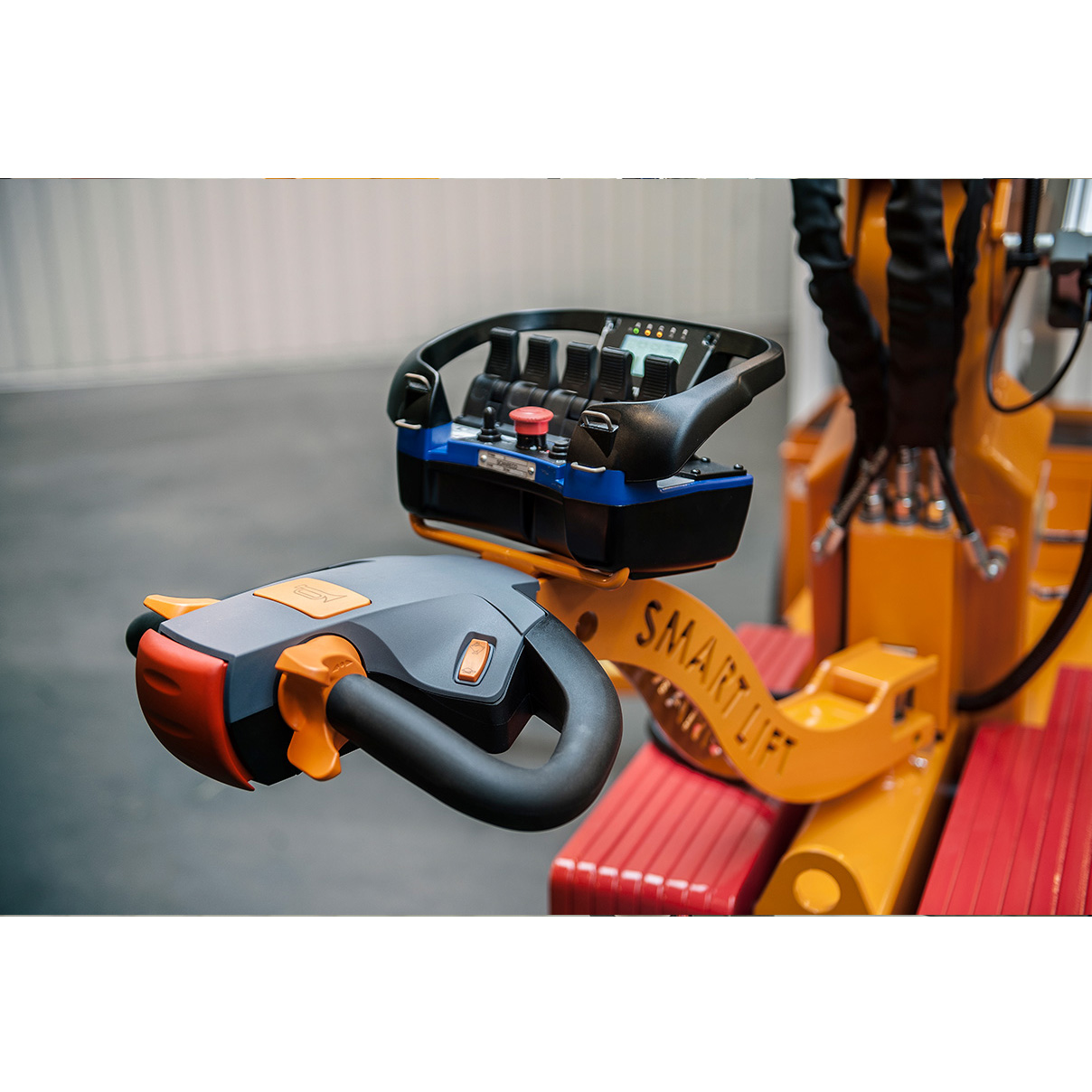

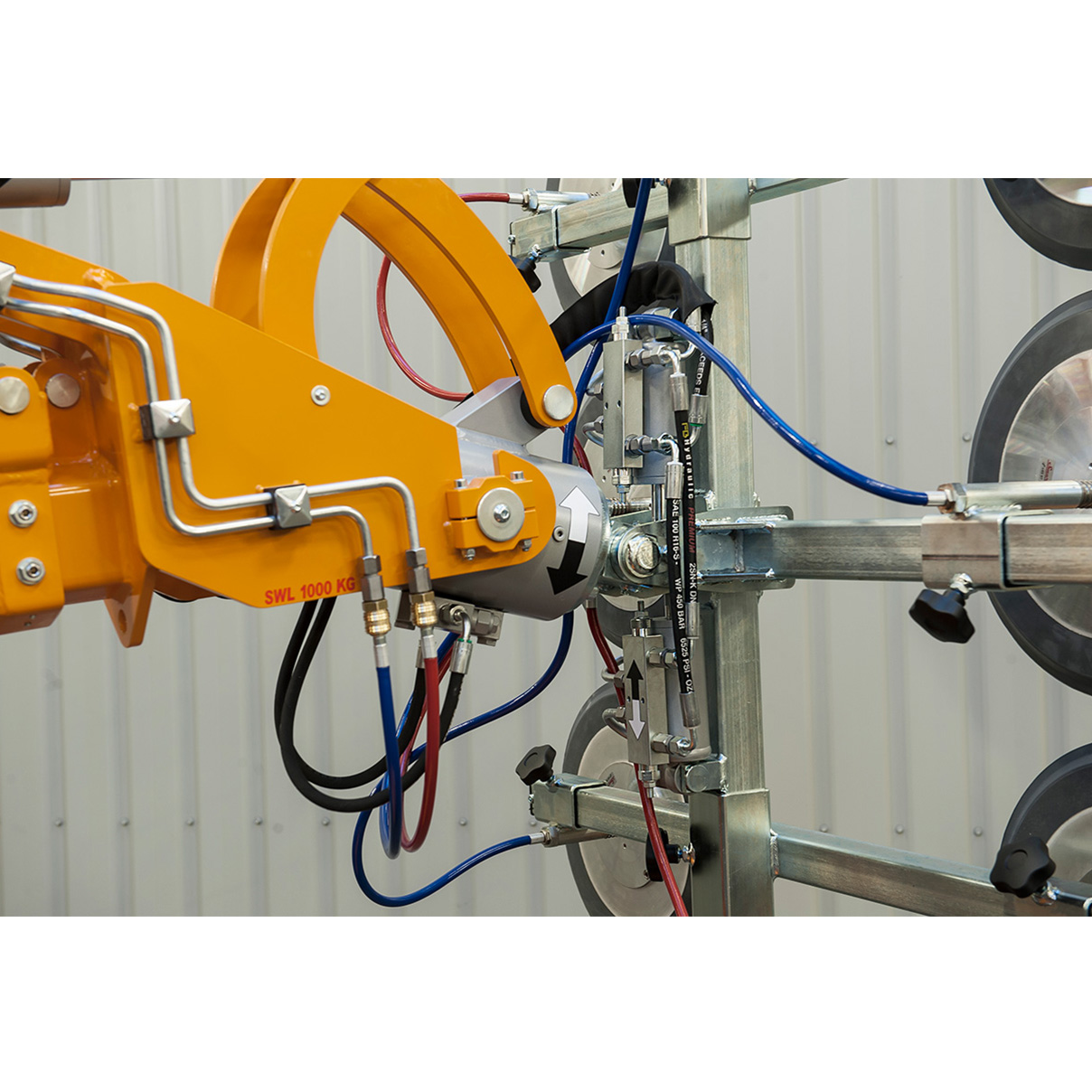

Large window sections are easily and precisely handled using the multifunctional yoke. The wireless remote control controls all functions and offers freedom of movement for the operator. A display gives the user a full overview of battery status, vacuum and actual load.

The lift has a proportional hydraulic system that allows for precise control of the arm, so that small adjustments to the control result in small adjustments to the yoke and arm. The SL 1009 Outdoor is equipped with wide tires to prevent the machine from getting stuck and to ensure unique stability when the lift is running with a full load.

Call for Price

Send Request
Maximum lifting height

4,4 m

Lifting capacity inside / extended

1000/ 280 kg

Machine height

1,92 m

Machine width (min)

1,10 m

Machine length (min)

3,3 m

Extension arm

2x 0,83 m

Page offset

0,1 m

The tip from the horizontal

42˚ back / 86˚ front


Stepless high / low

Vacuum system

2 circuits

Battery charger


Integrated charger

Cetek XT

Charging time

Ca. 8 hours


4 x 134 Ah AGM

Battery life

8 hours

Rear wheel drive

2000 W DC



Suction cups

6 x Ø400mm

Weight 1480 kg
Dimensions 283 × 102 × 157 cm

The SL 1009 Outdoor is the largest glass lifter in the Smartlift range. It has a proportional hydraulic system that allows the operator to control the arm and yoke with great precision. Small adjustments to the controls trigger small movements of the yoke and arm so you can feel confident when handling large glass elements.

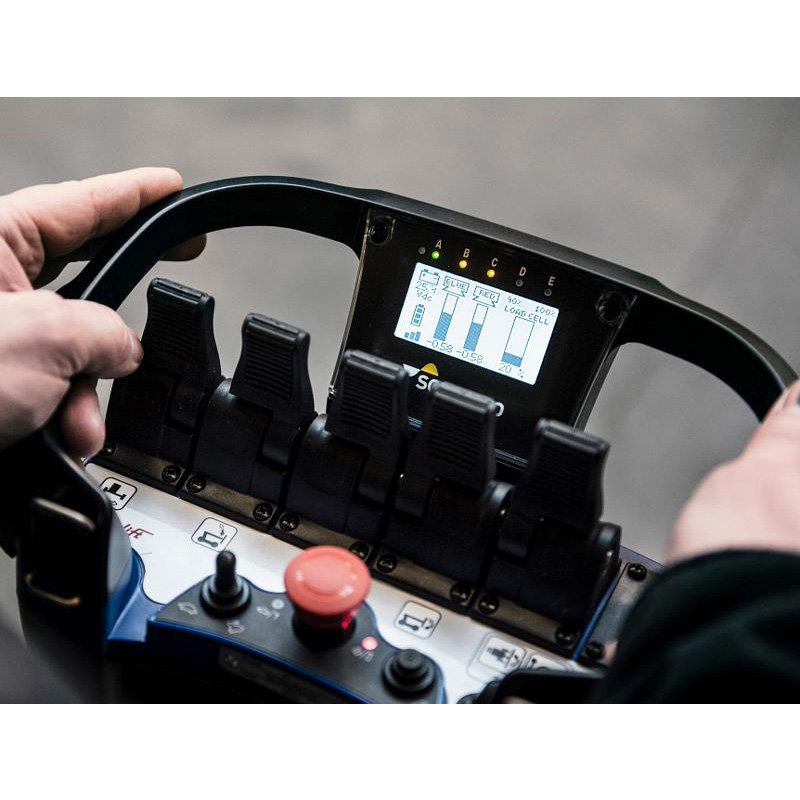

The wireless remote control gives you freedom of movement during installation so you can get a better overview of things. A built-in display gives you an overview of the battery status, vacuum level and actual load. This is a great feature when working with the heaviest elements and safety is paramount.
