| Maximum lifting height | 2.3 m |
|---|---|
| Lifting capacity inside / extended | 580 / 280 kg |
| Machine height | 1,74 m |
| Machine width (min) | 0,78 m |
| Machine length (min) | 2,39 m |
| Extension arm | 0,5 m |
| Page offset | 0,1 m |
| The tip from the horizontal | 25˚ back / 105˚ front |
| Speeds | Stepless high / low |

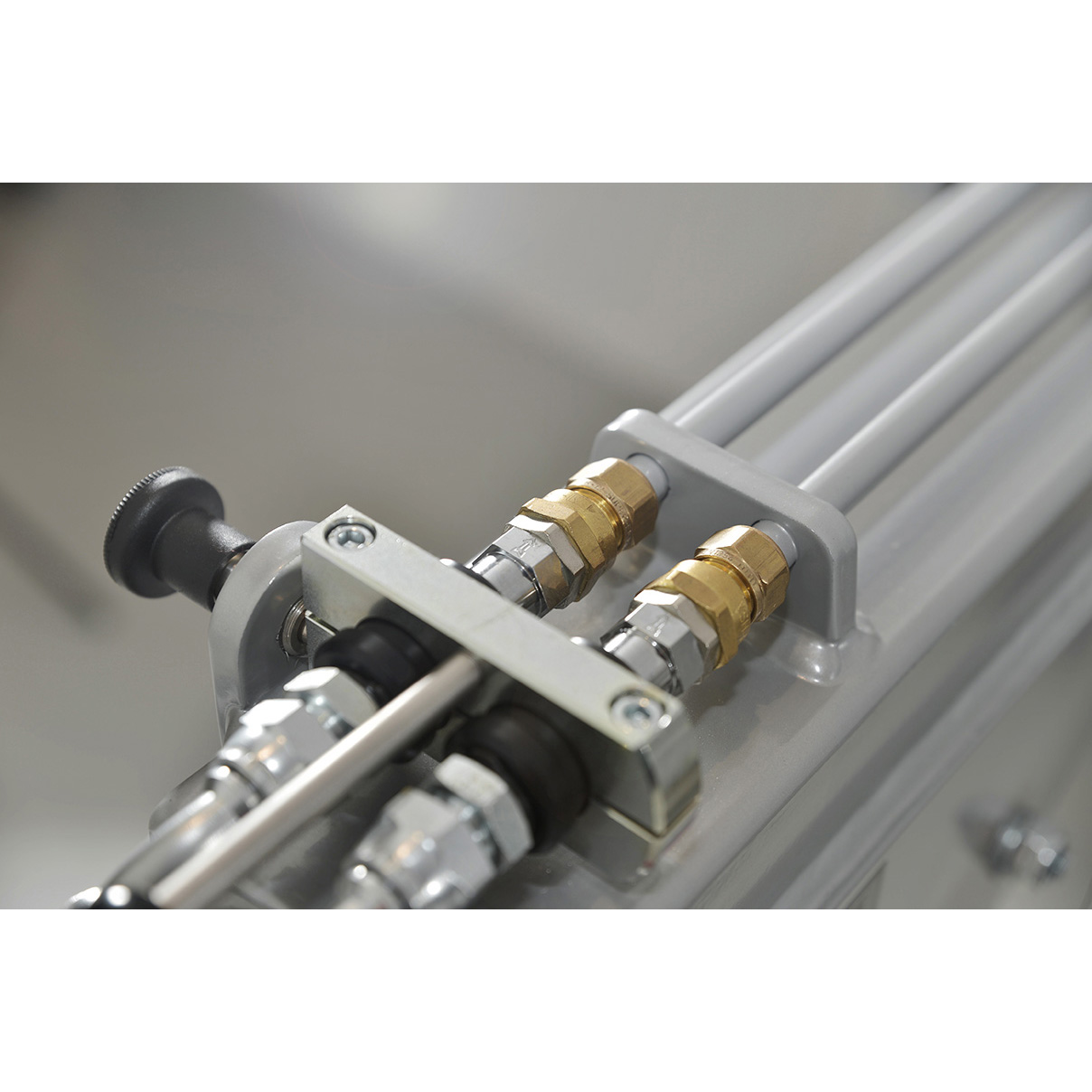

| Vacuum system | 2 circuits |
| Battery charger | 230V |
| Integrated charger | Cetek XT 14000 |
| Charging time | Ca. 8 hours |
| Battery | 24 volts (2 x 12 V) / 2×80 Ah |
| Battery life | 10 hours |
| Rear wheel drive | 1000 W DC |
| Brake | Electronic |
| Suction cups | 4 x Ø400mm |
| Weight | 700 kg |
| Dimensions | 239 × 78 × 174 cm |

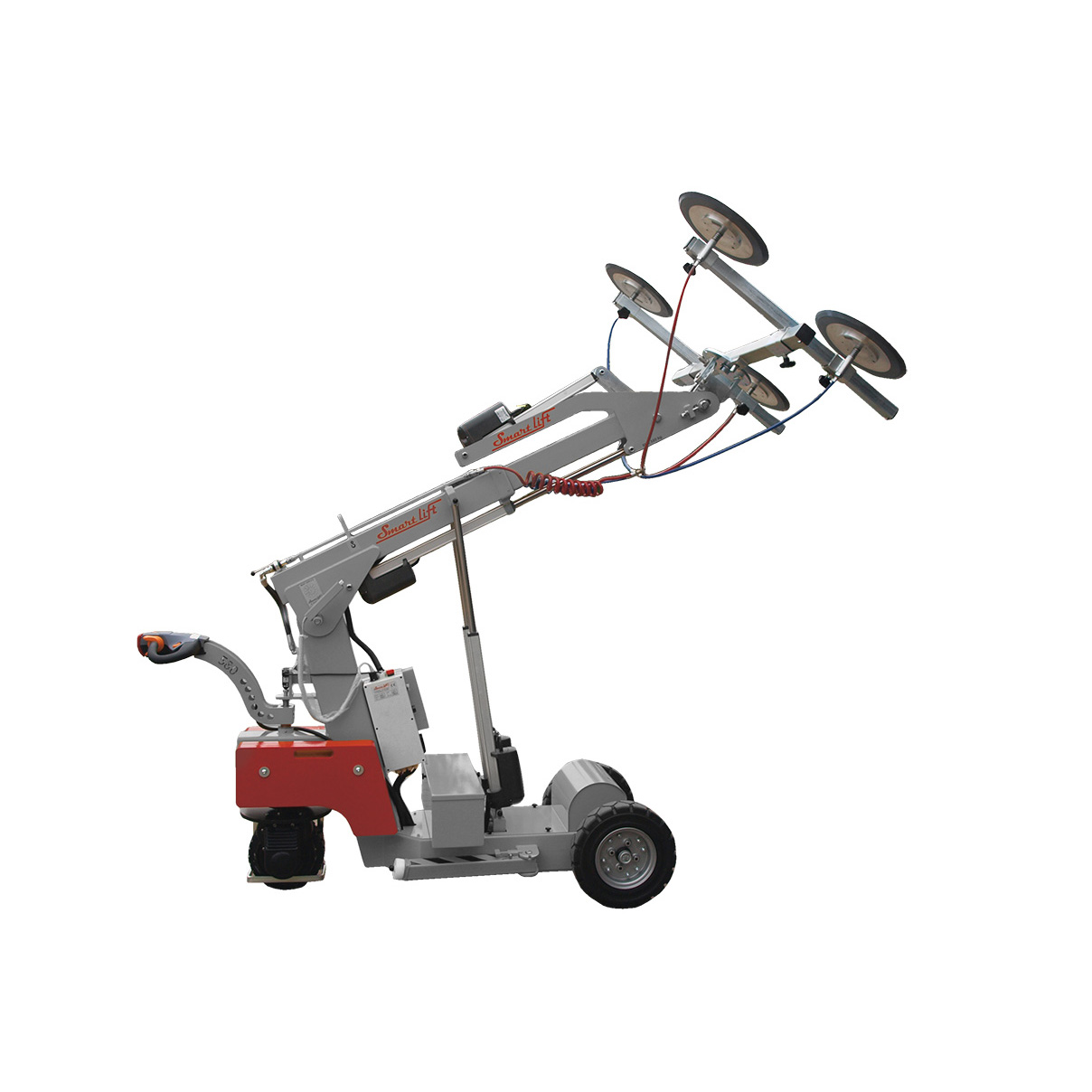

Smartlift SL 580
Smartlift SL580 is the original and most used window lift on the market. It has received a lot of praise from users, partly because it is both practical and can be used in places with space restrictions.
This model has four suction cups with automatic suction and a diameter of 40 cm, each of which can lift 580 kg. The smart lift has a lifting height of 2.3 m.
