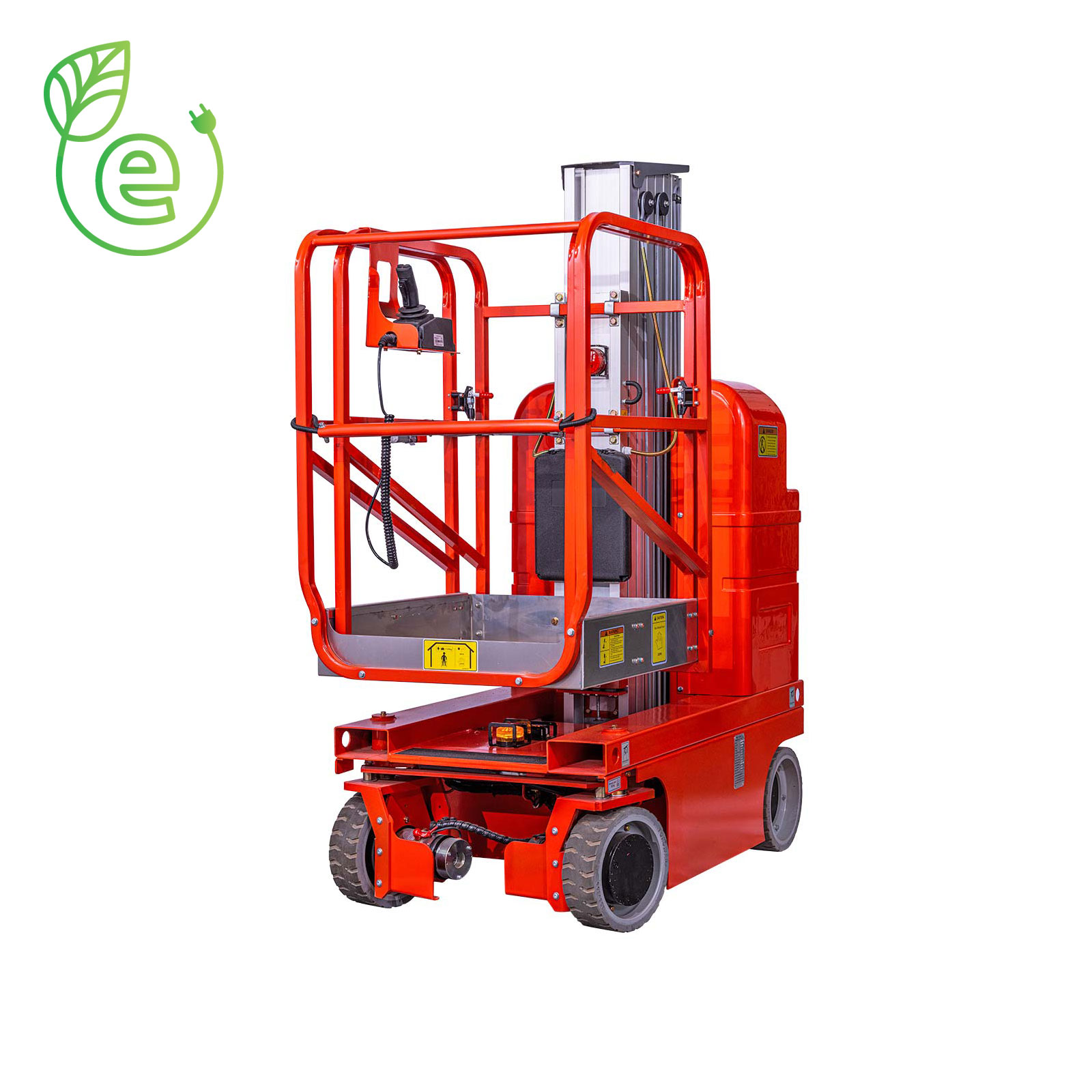

Instant AMWP9.5-1100- 9,5m

51-0210

Due to its size and the ability to fold, the AMWP1100 series is perfect for work in tight spaces. The mast lifts weigh only 1250 kg and have a working height of 9.5 m.

The AMWP1100 9.5 can handle a weight of up to 125 kg, and the platform can also be extended by 0.55 m. On order, it is possible to get machines for less than 1000 kg, but without a platform with an extension.

Call for Price

Send Request
Working height max

9,5m

Platform height max

7,5m

Maximum lifting capacity

125kg

Maximum number of people in the lift

1

Platform dimension (LxW)

0,78 x 0,70 m

Push

0,55m

Length of platform with extension

1,33 x 0,70 m

Turning radius inside

0 m

Speed, high / low (km / h)

4 / 1,1

Rise ability max

25%

Raise / lower time (sec)

43/35

Deck

marking-free

Drivetrain

2WD

Power source

2 x 12 V / 100 Ah

Battery charger

24 V / 11 A, integrated

Length

1,4m

Width

0,82m

Height

1,98 m

Weight 1190 kg
Dimensions 140 × 82 × 198 cm

Standard equipment:
• Proportional driving
• Marker-free tires
• 2 WD
• Automatic brakes
• Emergency lowering
• Emergency stop buttons
• Self-diagnosis on board
• Tilt sensor and alarm
• Motion alarm
• Horn
• Hour meter
• Forklift pockets
• Rotating warning light
• Overload sensor with alarm
