Mantall ALP-15

ALP-15

The Mantall ALP-15 super material lift can lift a heavy load of 363kg up to 5 meters in height. Mantall ALP series super material lift is a manually operated material lift with no power source required.

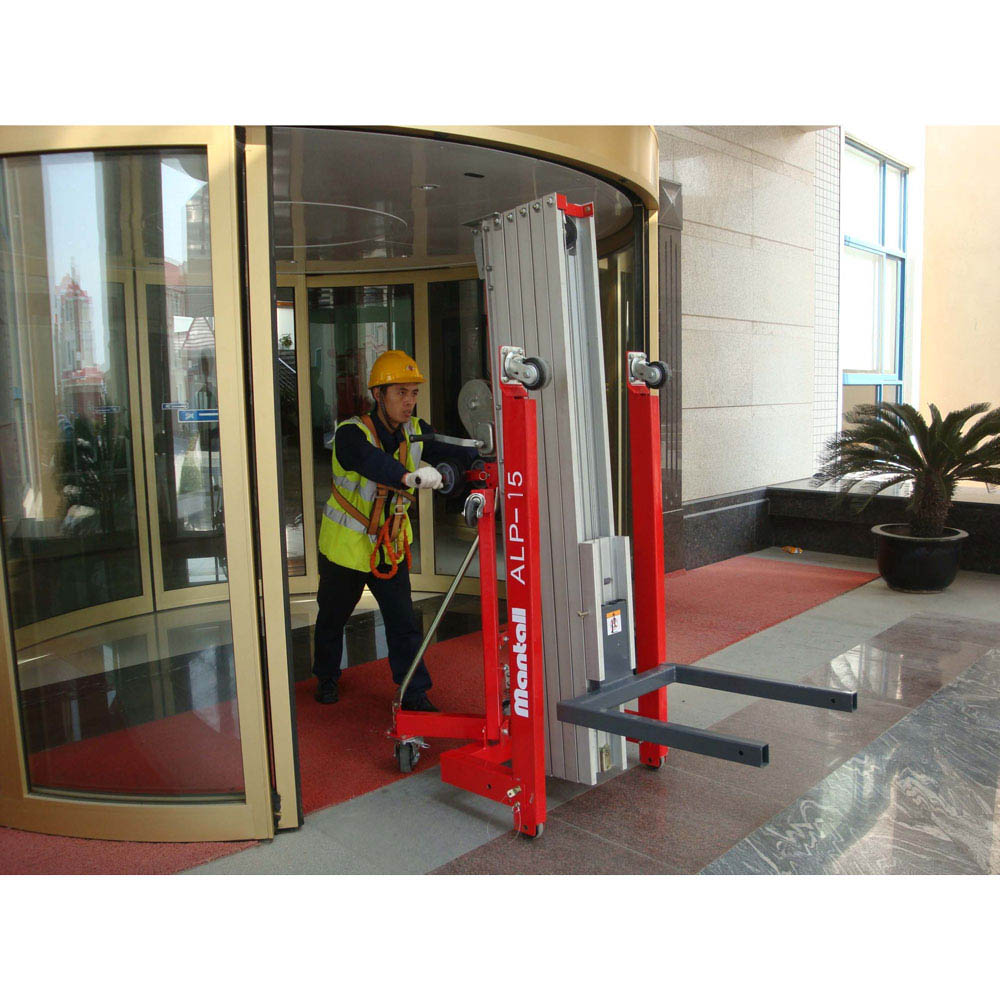

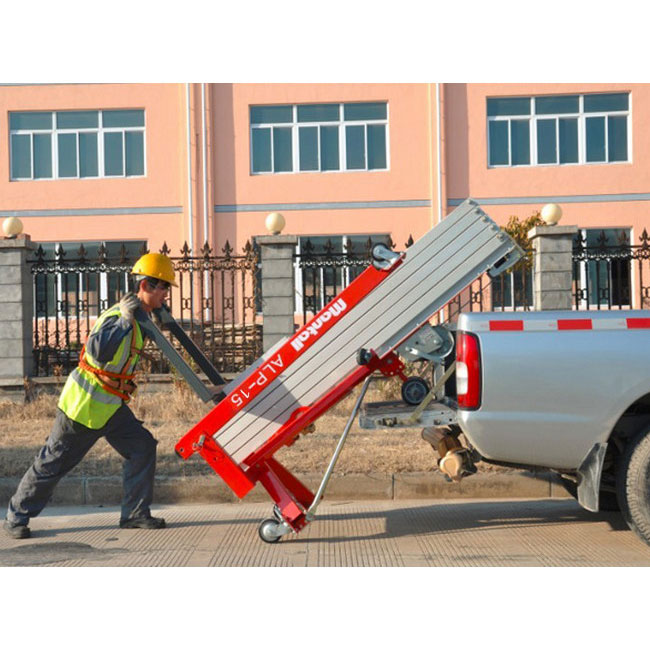

The compact structure, lightweight and portable design enable it to effortlessly pass through standard doorways, as well as easily to be set up and loaded into a truck. The product is ideal for applications requiring lifting tasks, such as warehouse picking, ducting and ventilation installation, stage construction, HVAC repairing, etc.

Max height: 5m
Max load: 363kg
Product height: 2.03m
Product width: 0.79m

Call for Price

Send Request
Standard height forks-down H1

5.00m

Standard height forks-down H2

4.48m

Height-stowed D

2.03m

Width-stowed F

0.79m

Length-stowed E

0.75m

Length-operating K

2.2m

Stabilizers lowered

1.9m

Load height minimum

0.15m

Load center (46 cm)

363kg

Load center (61cm)

363kg

Load center (107cm)

227kg

Power

Single speed winch

Weight 199 kg
Dimensions 75 × 79 × 203 cm

Standard Features
Incorporates a silent ratchet system
Transportation wheels
Roller wheels with brake
Standard forks
Telescopic mast design
Solid steel base

Optional
Adjustable forks
Flat forks
Boom
Pipe cross forks
Load platform
Anti-fall function
