Working height max H1 | 8 m |
---|---|
Platform height max H2 | 6 m |
Platform extension size | 1 m |
Lifting capacity | 550 kg |
Lifting capacity on the extension | 120 kg |
Max. platform occupancy | 2 pers |
Dimension of the platform B*C*A | 2.3 × 1.15 × 1.1 m |
Length and width E*F | 2.55×1.2 m |
Height D | 2.25 m |
Height-guardrails folded M | 1.64 m |
Wheelbase G | 1.68 m |
Ground clearance H | 0.15 m |
Turning radius-inside | |
Turning radius-outside | 2.4 m |
Raising time/lowering time | 32/30 s |
Drive speed-stowed | 3.4 km/h |
Drive speed-raised | 0.7 km/h |
Gradeability | 35% |
Tilt (front to back/side to side) | 3° / 2° |
Outrigger level ability-front to back | 4.5° |
Outrigger level ability-side to side | 10° |
Tire size | 406×152 mm |
Power source | 4×6V/225Ah |
Weight | 2270 kg |
Dimensions | 255 × 120 × 225 cm |

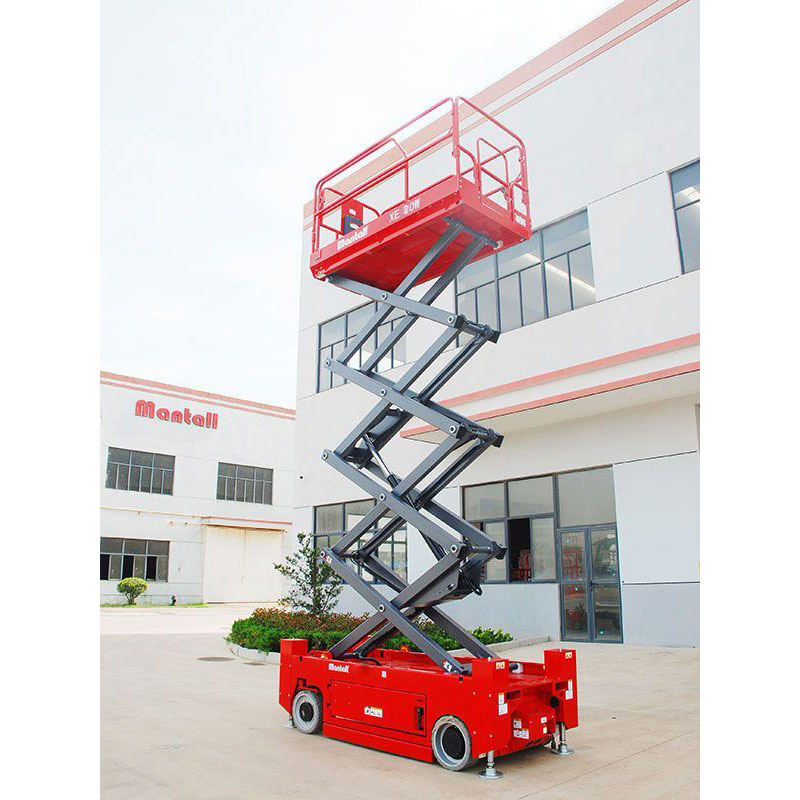

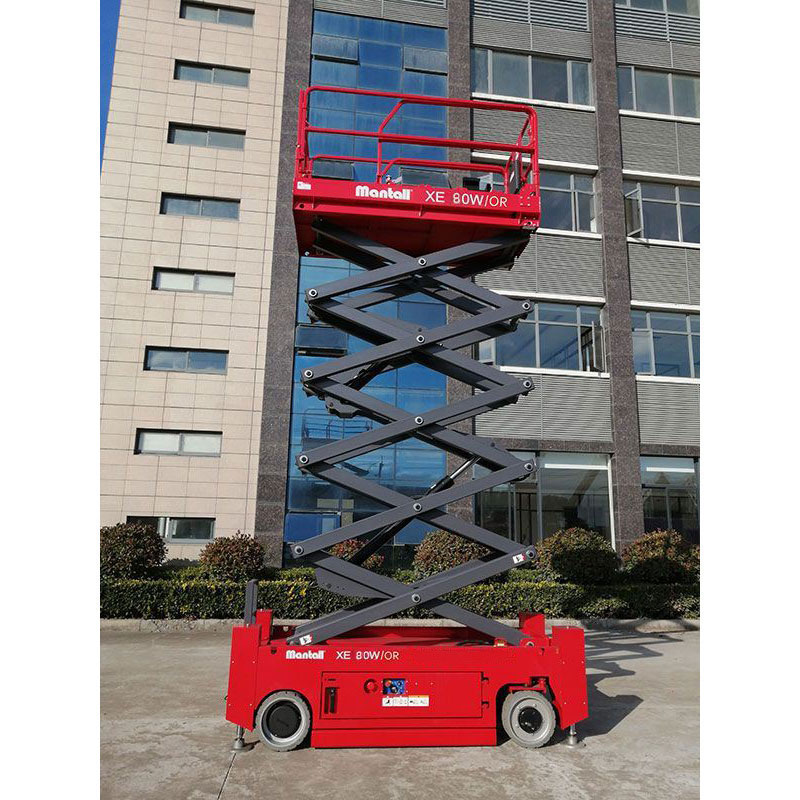

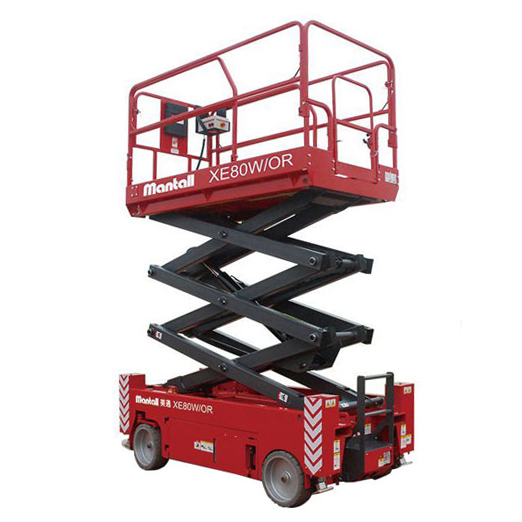

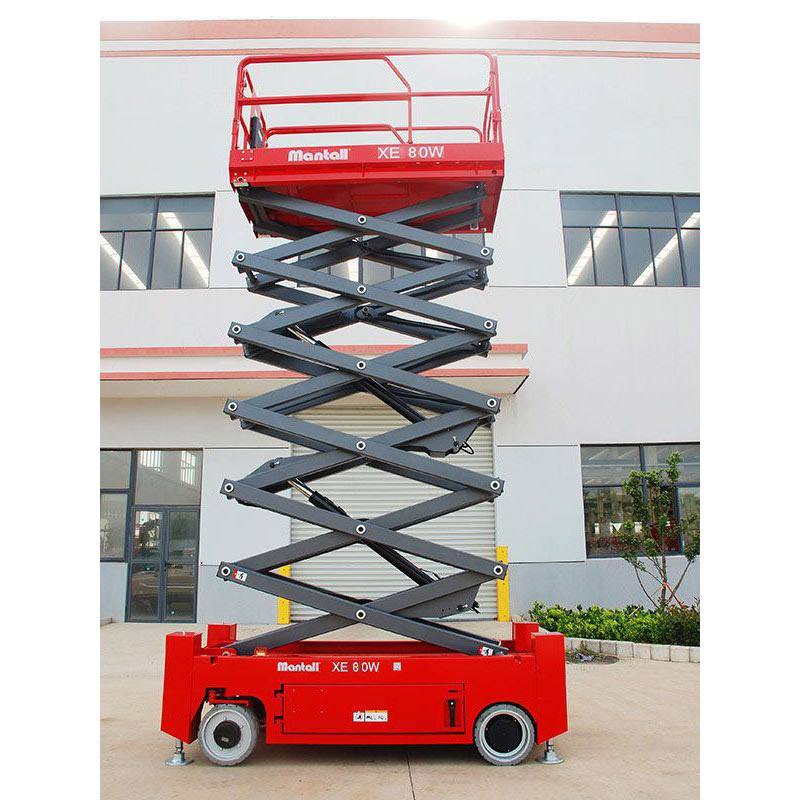

Mantall XE80W RT – 8m
The Mantall XE80W RT electric scissor lift is designed for working on uneven surfaces. The lift has hydraulic self-levelling legs, which allow the user to automatically level the machine on slopes up to 4.5 degrees lengthwise and up to 10 degrees widthwise.
This scissor lift has a working height of up to 8 meters with a maximum load capacity of 550 kg.
The lift also has a number of safety features for safe operation such as a dedicated control and self-diagnosis system, as well as joystick with proportional control for lifting and traveling that makes the lift very easy to use.
Call for Price
Send Request- Battery powered
- Proportional driving
- 4WD
- Slide out on platform
- Foldable railing
- Non-marking wheels
- Automatic braking system
- Emergency lowering
- Emergency stop
- Self-diagnosis system
- Tilt sensor with alarm
- Hour counter
- Forklift pockets
- Warning light
- Integrated battery charger
- Automatic leveling of hydraulic outriggers
- Maintenance-free battery
- CE-marked
