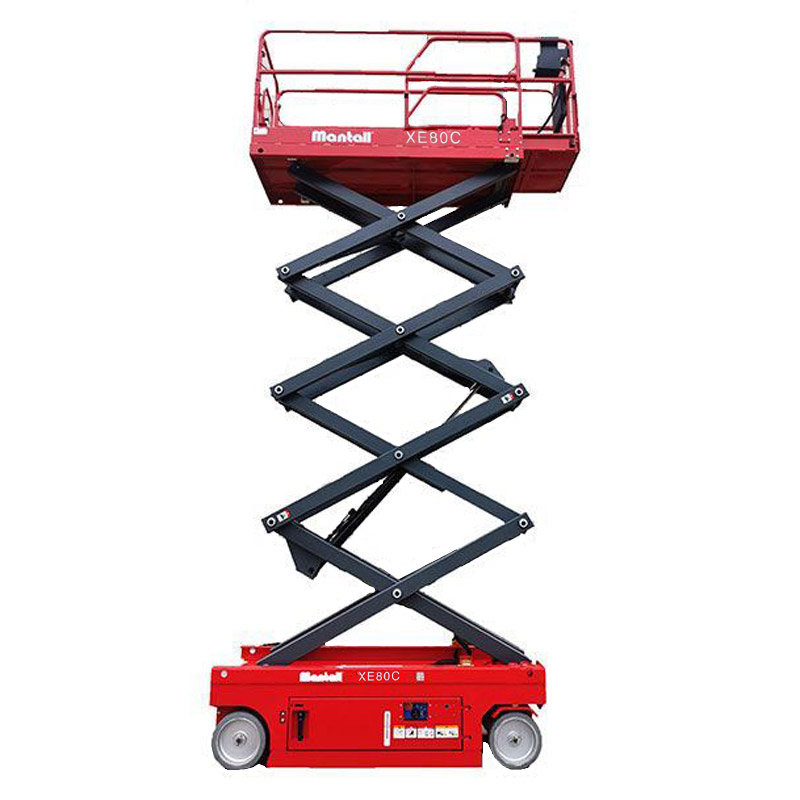

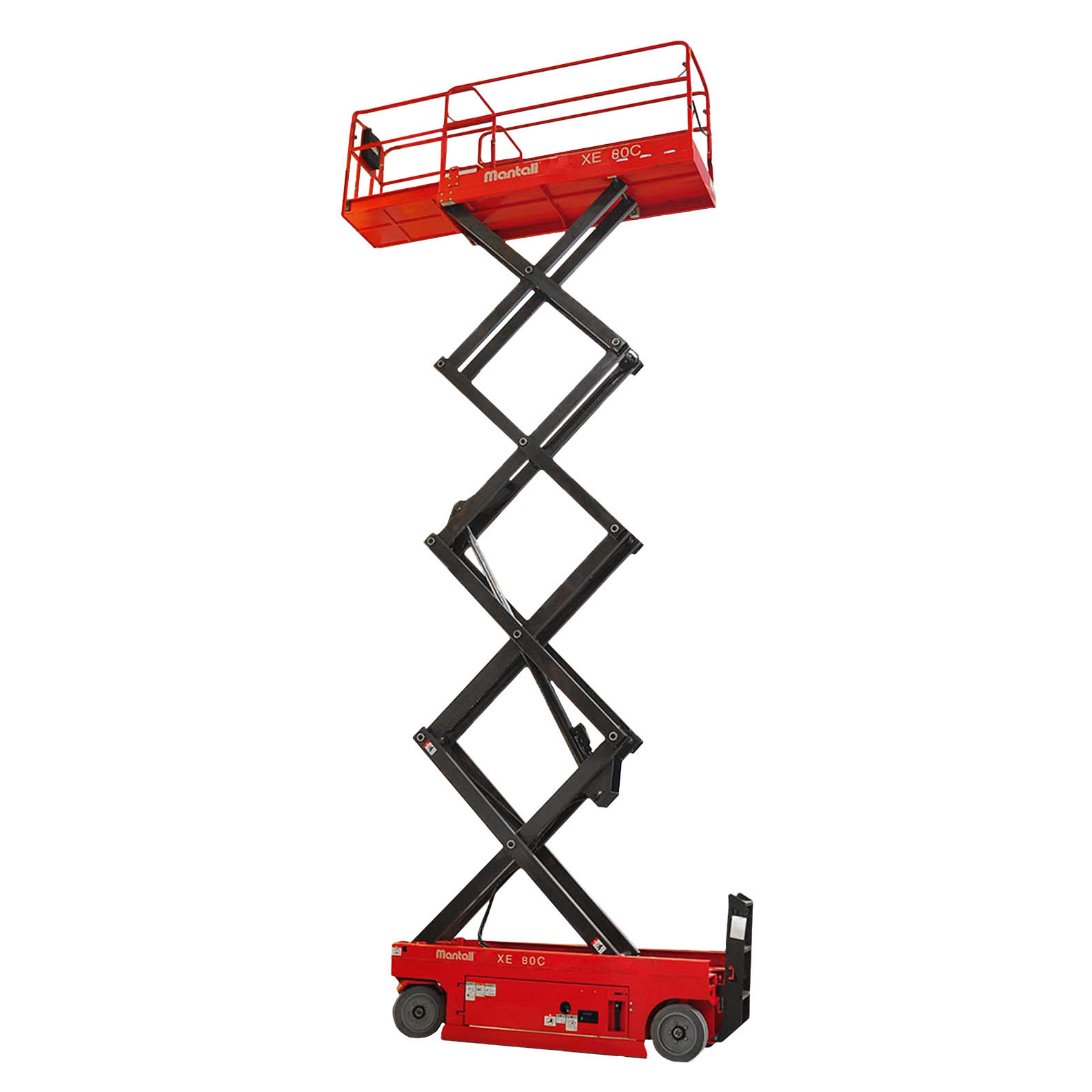

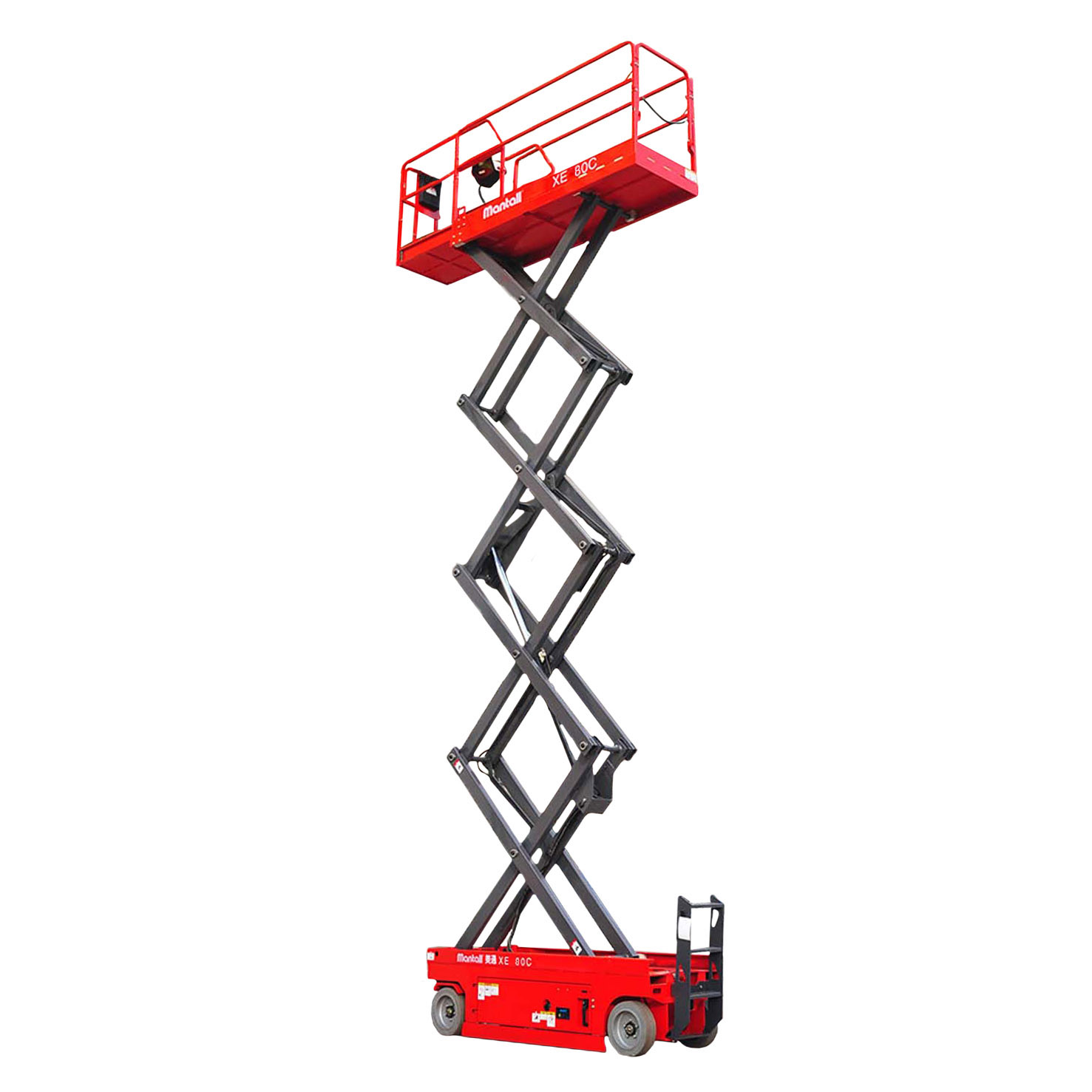

Mantall XE80C – 8m

Narrow electric scissor lift for indoor use and/or flat surfaces. Lifting capacity of 350 kg and working height up to 8m. Permitted for 2 persons in a basket.

Mantall XE80C has a very large lifting capacity and is therefore well suited for tasks that require a lot of weight. The lift also has very low noise levels, no emissions and is suitable for indoor use. It can be operated from full height and has a 1m extendable platform.

The lift also has a number of safety features for safe operation, as well as a joystick with proportional control for lifting and driving, making the lift very easy to use.

Call for Price

Send Request
Working height max H1

8 m

Platform height max H2

6 m

Platform extension size

1 m

Lifting capacity

350 kg

Lifting capacity on the extension

120 kg

Max. platform occupancy

2 pers

Dimension of the platform B*C*A

2.25 × 0.8 × 1.1 m

Length and width E*F

2.5 * 0.8 m

Height D

2.17 m

Height-guardrails folded M

1.72 m

Wheelbase G

1.85 m

Ground clearance H

0.1 m

Ground clearance-deployed potholes

0.019 m

Turning radius-inside
Turning radius-outside

2.12 m

Raising time/lowering time

27/29 s

Drive speed-stowed

3.4 km/h

Drive speed-raised

0.7 km/h

Gradeability

30%

Tilt (front to back/side to side)

3° / 2°

Tire size

356*114*254 mm

Power source

4×6V/225Ah

Weight 1910 kg
Dimensions 250 × 80 × 217 cm
Standard Features
  • Battery powered
  • Proportional driving
  • 2WD
  • Extension on platform
  • Foldable railing
  • Non-marking wheels
  • Automatic braking system
  • Emergency lowering
  • Emergency stop
  • Self-diagnosis system
  • Tilt sensor with alarm
  • Hour meter
  • Forklift pockets
  • Warning light
  • Integrated battery charger
  • CE-marked
