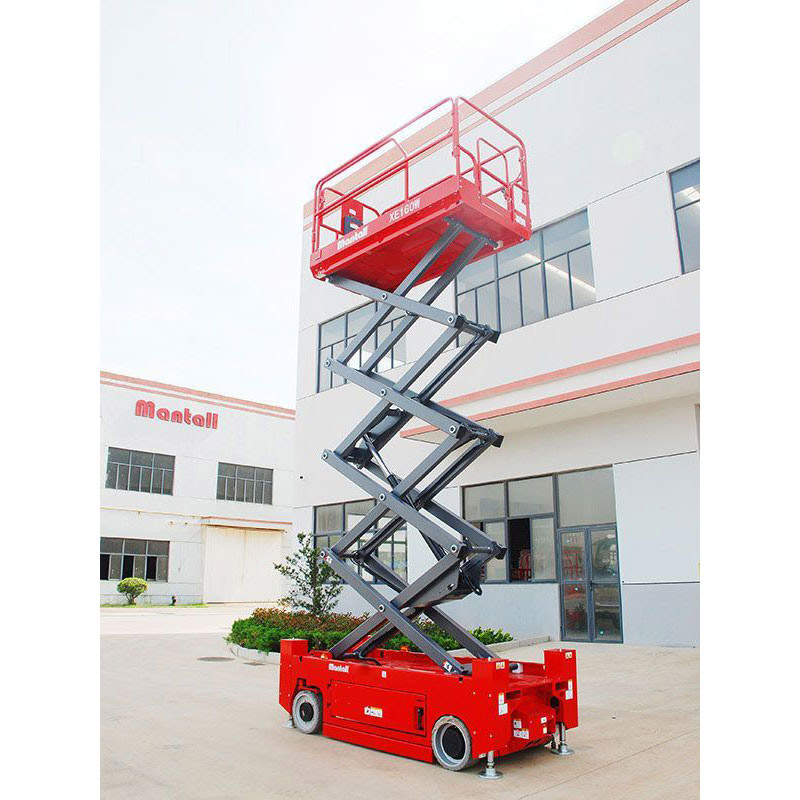

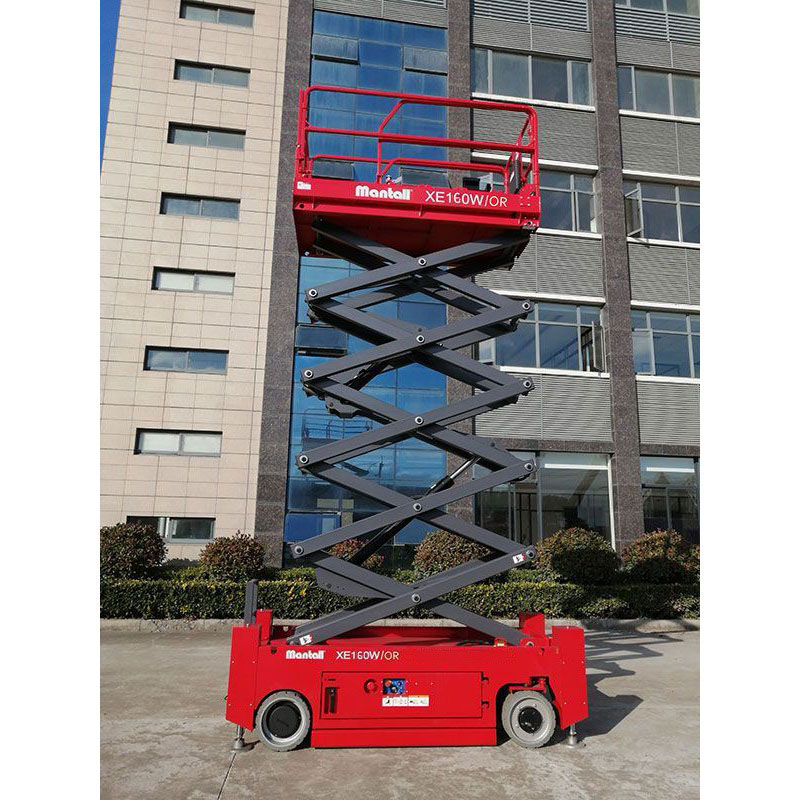

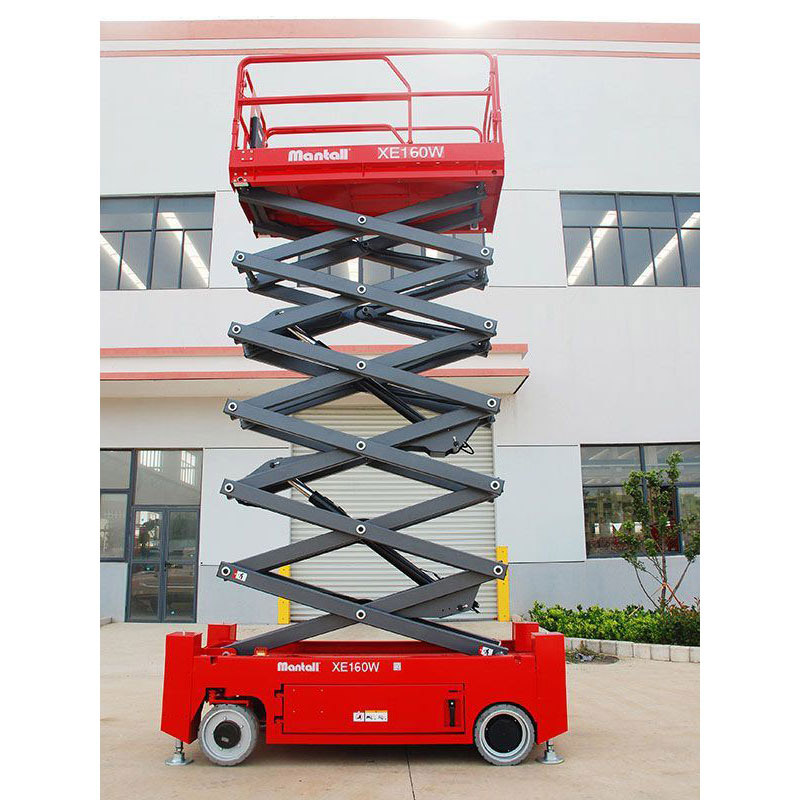

Mantall XE160W RT – 16m

The Mantall XE160W RT electric scissor lift is designed for working on uneven surfaces. The lift has hydraulic self-levelling legs, which allow the user to automatically level the machine on slopes up to 4.5 degrees lengthwise and up to 10 degrees widthwise.

This scissor lift has a working height of up to 16 meters with a maximum load capacity of 230 kg.

The lift also has a number of safety features for safe operation such as a dedicated control and self-diagnosis system, as well as joystick with proportional control for lifting and traveling that makes the lift very easy to use.

Call for Price

Send Request
Working height max H1

16 m

Platform height max H2

14 m

Platform extension size


Lifting capacity

230 kg

Lifting capacity on the extension

100 kg

Max. platform occupancy

2 pers

Dimension of the platform B*C*A

2.3 × 1.15 × 1.1 m

Length and width E*F

2.8 * 1.2 m

Height D

2.82 m

Height-guardrails folded M

2.17 m

Wheelbase G

1.88 m

Ground clearance H

0.14 m

Turning radius-inside
Turning radius-outside

2.64 m

Raising time/lowering time

86/50 s

Drive speed-stowed

3.4 km/h

Drive speed-raised

0.7 km/h



Tilt (front to back/side to side)

1.5° / 1°

Outrigger level ability-front to back

Outrigger level ability-side to side


Tire size

406×152 mm

Power source


Weight 3575 kg
Dimensions 280 × 120 × 282 cm
Standard Features
  • Battery powered
  • Proportional driving
  • 4WD
  • Slide out on platform
  • Foldable railing
  • Non-marking wheels
  • Automatic braking system
  • Emergency lowering
  • Emergency stop
  • Self-diagnosis system
  • Tilt sensor with alarm
  • Hour counter
  • Forklift pockets
  • Warning light
  • Integrated battery charger
  • Automatic leveling of hydraulic outriggers
  • Maintenance-free battery
  • CE-marked
