| Working height max H1 | 15.7 m |
|---|---|
| Platform height max H2 | 13.7 m |
| Platform extension size | 0.9 m |
| Lifting capacity | 227 kg |
| Lifting capacity on the extension | 113 kg |
| Max. platform occupancy | 2 pers |
| Dimension of the platform B*C*A | 2.64 * 1.12 * 1.1 m |
| Length and width E*F | 2.84*1.25 m |
| Height D | 2.68 m |
| Height-guardrails folded M | 2.08 m |
| Wheelbase G | 2.21 m |
| Ground clearance H | 0.15 m |
| Ground clearance-deployed potholes | / |
| Turning radius-inside | |
| Turning radius-outside | 2.75 m |
| Raising time/lowering time | 88/60 s |
| Drive speed-stowed | 3.5 km/h |
| Drive speed-raised | 0.8 km/h |
| Gradeability | 25% |
| Tilt (front to back/side to side) | 3° / 1.5° |
| Tire size | 406*127 mm |
| Power source | 4×6V/225Ah |
| Weight | 3345 kg |
| Dimensions | 284 × 125 × 268 cm |

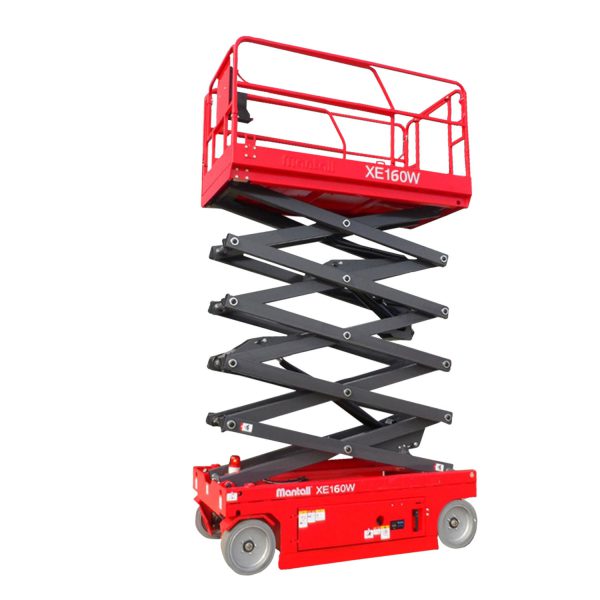

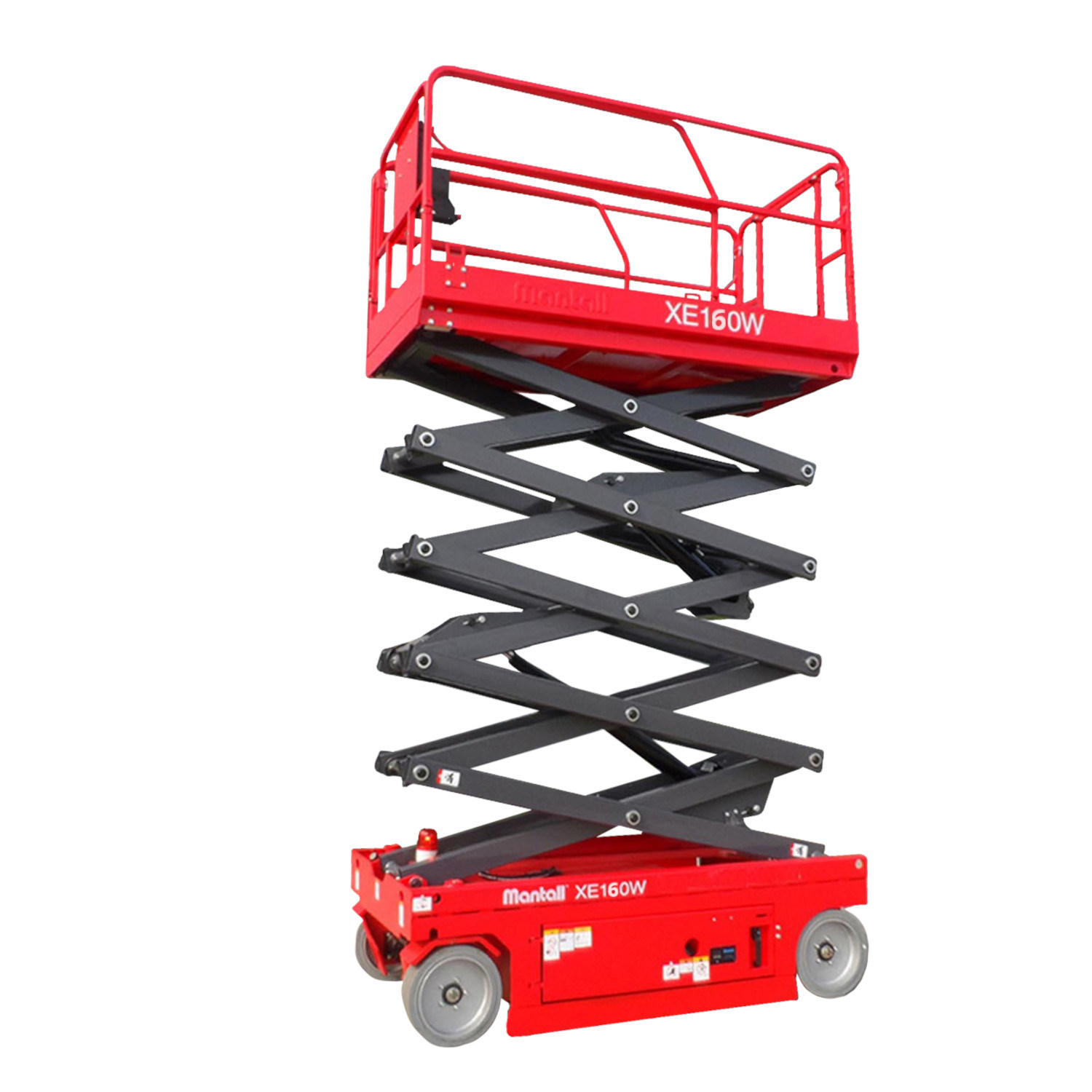

Mantall XE160W (II)
Versatile electric scissor lift for indoor use and/or flat surfaces. The lift has a maximum working height of up to 15.7 m and allows for 2 persons in the basket.
Mantall XE160W is intended for those who need platform space and high lifting capacity. The lift has a platform width of 1.12m and a lifting capacity of 227 kg, providing plenty of space for additional work equipment.
The lift has very low noise levels, no emissions and is suitable for indoor use. It can be driven from full height and has an extendable platform of 0.9m.
The lift also has a number of safety features for safe operation, as well as joystick with proportional control for lifting and driving, making the lift very easy to use.
Call for Price
Send RequestStandard Features
- Battery powered
- Proportional driving
- 2WD
- Extension on platform
- Foldable railing
- Non-marking wheels
- Automatic braking system
- Emergency lowering
- Emergency stop
- Self-diagnosis system
- Tilt sensor with alarm
- Hour meter
- Forklift pockets
- Warning light
- Integrated battery charger
- CE-marked
