| Working height max H1 | 12 m |
|---|---|
| Platform height max H2 | 10 m |
| Platform extension size | 1 m |
| Lifting capacity | 400 kg |
| Lifting capacity on the extension | 120 kg |
| Max. platform occupancy | 2 pers |
| Dimension of the platform B*C*A | 2.3 × 1.15 × 1.1 m |
| Length and width E*F | 2.8 x 1.2 m |
| Height D | 2.53 m |
| Height-guardrails folded M | 1.88 m |
| Wheelbase G | 1.88 m |
| Ground clearance H | 0.14 m |
| Turning radius-inside | |
| Turning radius-outside | 2.64 m |
| Raising time/lowering time | 55/37 s |
| Drive speed-stowed | 3.4 km/h |
| Drive speed-raised | 0.7 km/h |
| Gradeability | 25% |
| Tilt (front to back/side to side) | 3° / 2° |
| Outrigger level ability-front to back | 4° |
| Outrigger level ability-side to side | 10° |
| Tire size | 406×152 mm |
| Power source | 4×6V/225Ah |
| Weight | 3110 kg |
| Dimensions | 280 × 120 × 253 cm |

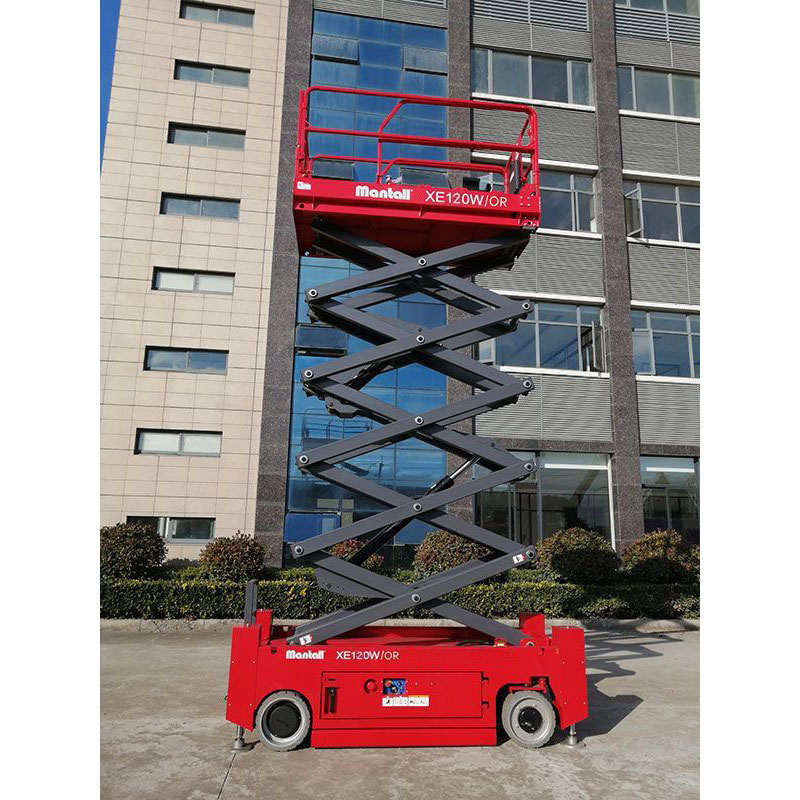

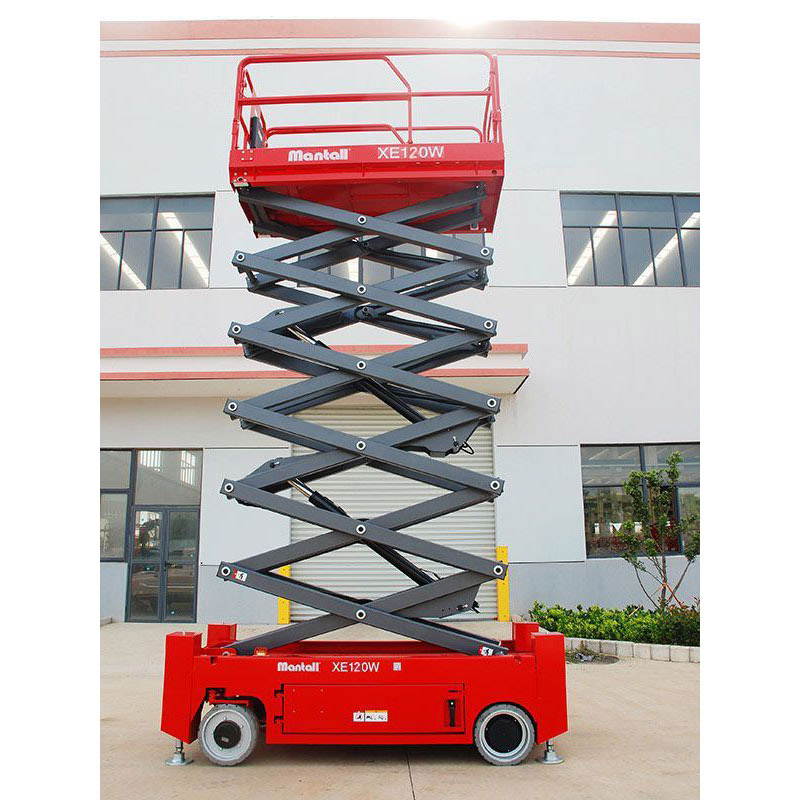

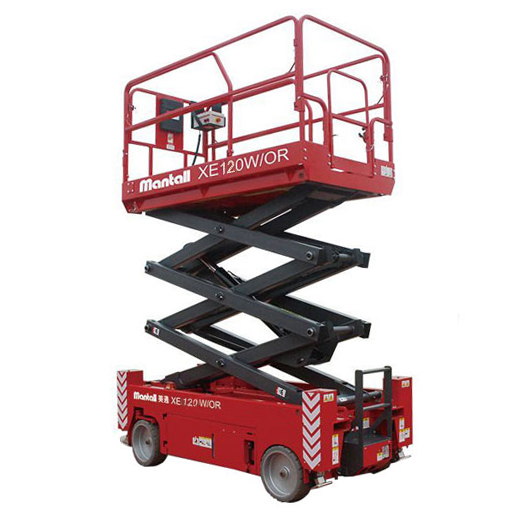

Mantall XE120W RT – 12m
The Mantall XE120W RT electric scissor lift is designed for working on uneven surfaces. The lift has hydraulic self-levelling legs, which allow the user to automatically level the machine on slopes up to 4.5 degrees lengthwise and up to 10 degrees widthwise.
This scissor lift has a working height of up to 12 meters with a maximum load capacity of 400 kg.
The lift also has a number of safety features for safe operation such as a dedicated control and self-diagnosis system, as well as joystick with proportional control for lifting and traveling that makes the lift very easy to use.
Call for Price
Send RequestStandard Features
- Battery powered
- Proportional driving
- 4WD
- Slide out on platform
- Foldable railing
- Non-marking wheels
- Automatic braking system
- Emergency lowering
- Emergency stop
- Self-diagnosis system
- Tilt sensor with alarm
- Hour counter
- Forklift pockets
- Warning light
- Integrated battery charger
- Automatic leveling of hydraulic outriggers
- Maintenance-free battery
- CE-marked
