Agricultural package 101m²

900-00BRANSJE4

Working height: 6 / 10m
Platform height: 4 / 8m
Scaffolding length: 9.21m / 18.42m
Number of sections length: 3 / 6
Bay length: 3,07m

Load class 3 (200kg/ m²)
Certified

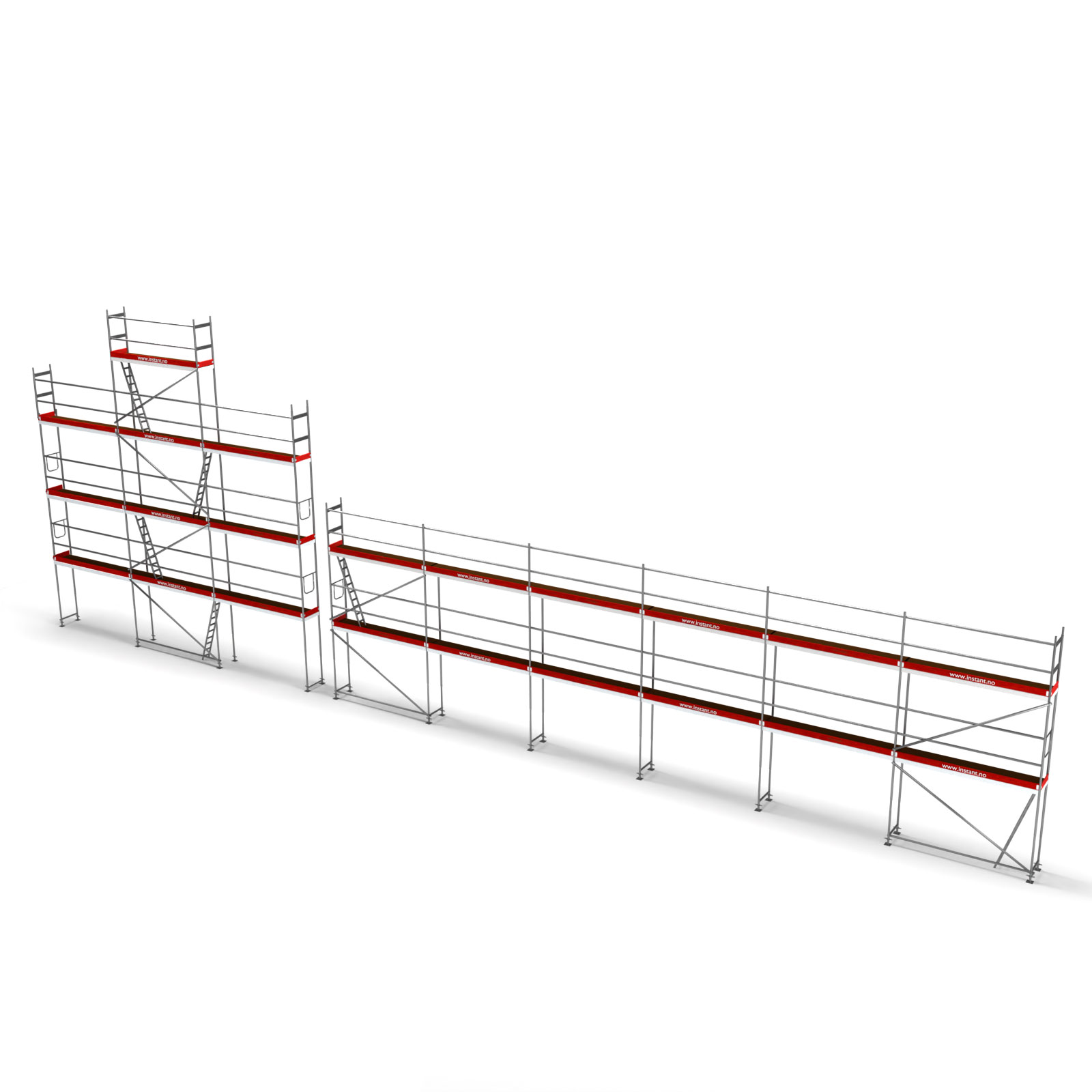

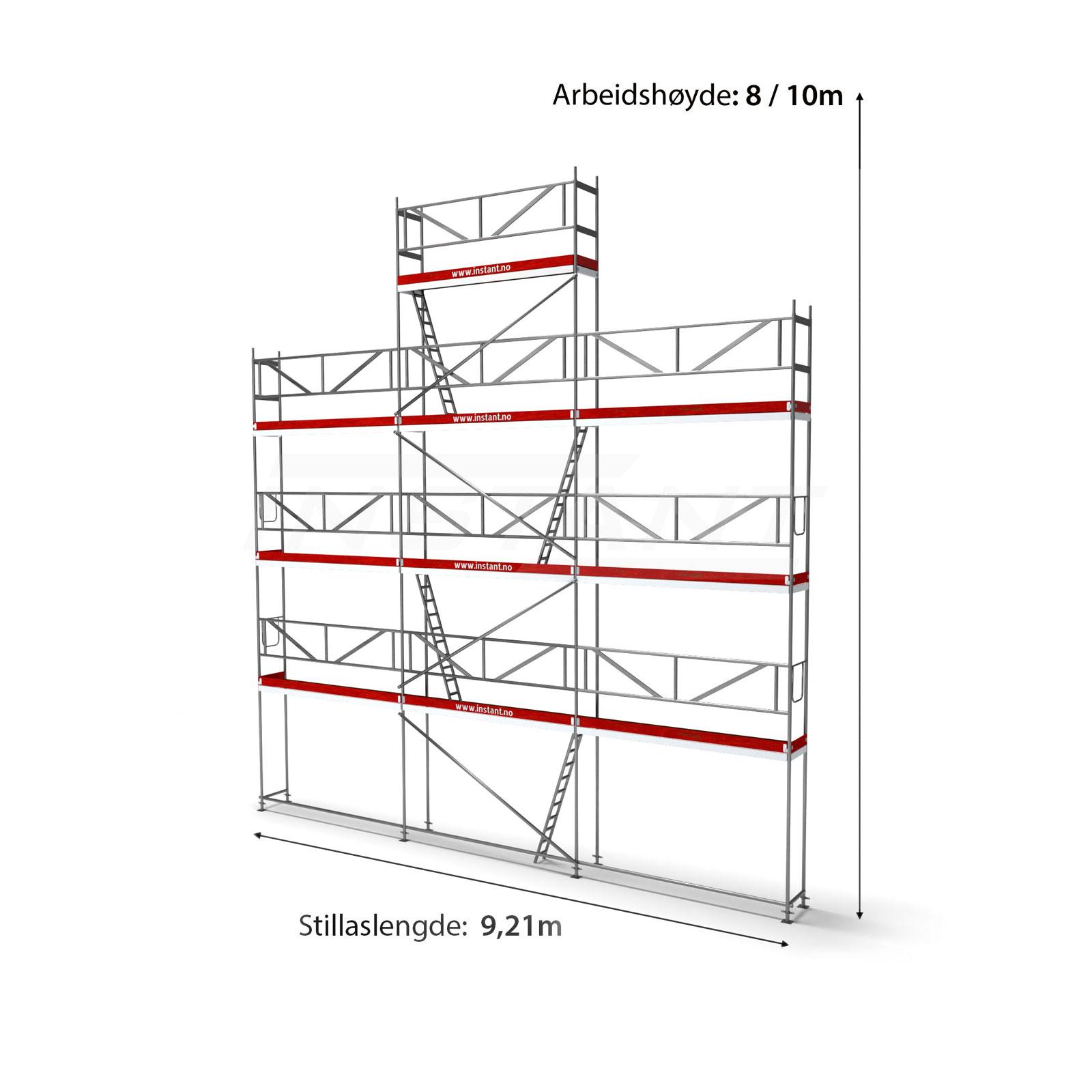

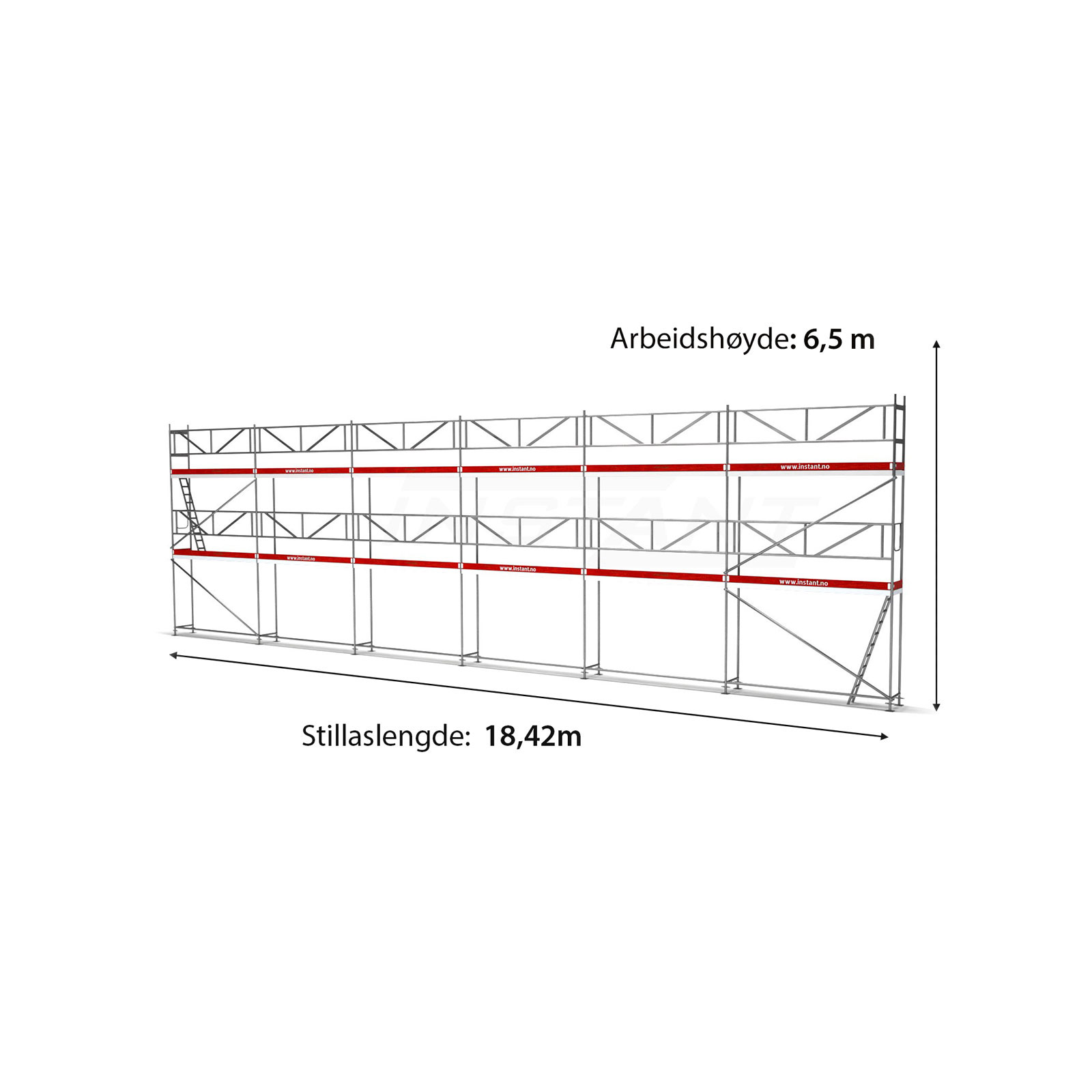

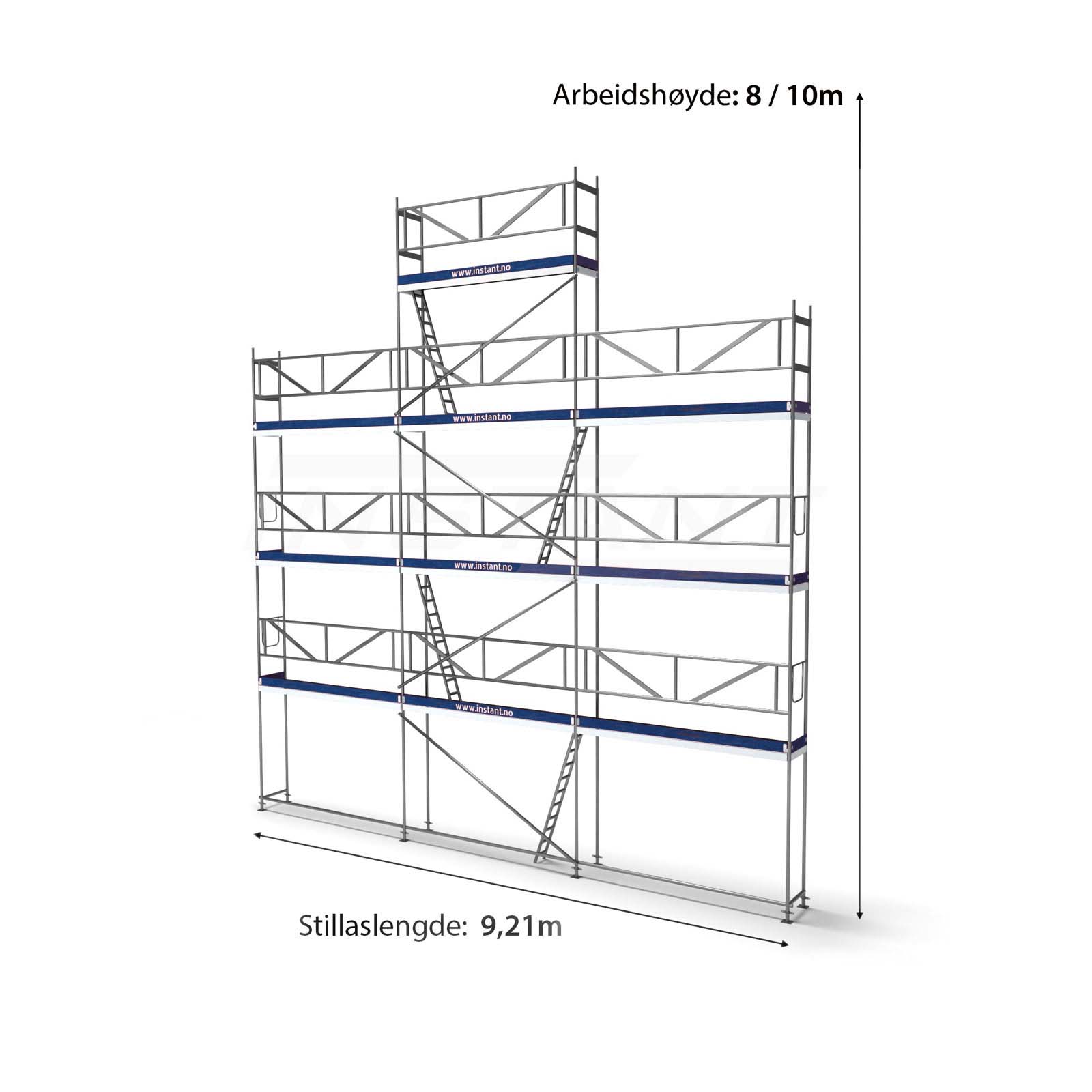

Flexible agricultural package for those who are building or maintaining larger buildings. The package can be built in different ways as shown in the pictures, allowing you to cover gable and long sides. Please note that the options cannot be built at the same time.

Call for Price

Send Request
Area:

Sqm without leg adjustments extracted: 92 m2
Sqm with leg adjustments extracted: 101 m2
Scaffolding length:

9,21m / 18,42m
Height:

Working height: 6 m / 10 m.
Platform height: 4 m / 8 m.
*Dimensions are without the use of leg adjustment.
Components:

14 pcs Vertical frame 2.0m – aluminium
04 pcs End railing top platform height
05 pcs L-frames
04 pcs End railings other platform height
24 pcs Railing single braces in steel
14 pcs Leg adjustment w/footplate 0.6m
08 pcs Platform standard 3.07m length – aluminium profile
04 pcs Platform w/hatch and ladder 3.07m length – aluminium profile
12 pcs Skirting board
08 pcs Foot moulding end piece
04 pcs Diagonal stiffener for 3.07m length
02 pcs Horizontal brace for 3.07m length
10 pcs Wall bracket
10 pcs Coupling for wall mount
10 pcs Eyebolt
Weight 713 kg
Dimensions 365 × 120 × 200 cm

With few and simple details, Instant Blitz-Fix is very easy and quick to assemble/disassemble, which in turn increases efficiency and reduces costs. Instant Blitz-Fix is constructed in aluminium with very lightweight components, which contributes to minimal risk when working at height. The scaffolding system is designed with dimensions and specifications that allow the system to be used interchangeably with several other scaffolding brands. Scaffolding is type-approved with load class 3 (200kg/m2).

Instant Blitz-Fix facade scaffolding is manufactured under strict quality requirements for both raw materials and production. The scaffolding is tested and certified by a leading certification body in the EU.

The scaffolding system can be recommended for the vast majority of façade jobs. Construction work, maintenance, rehabilitation, plumbing, insulation work, carpentry, etc. The scaffolding is equally suitable for tradesmen and homeowners.

Key facts about Instant Blitz-Fix facade scaffolding:
– Type approved with load class 3 (200 kg/m2).
– Maximum platform height: 24m (without calculation)
– Base scaffolding span: 3,07m. Complete details also for scaffolding trusses: 0.50m, 0.73m, 1.09m, 1.57m, 2.07m and 2.57m
– Basic vertical frame: 2.00m x 0.73m. Levelling frames: 0.66m, 1.00m and 1.50m
– Double railings in aluminium or single railings in galvanised steel.
– Platform with aluminium square profiles and platform plate in 12mm non-slip waterproof veneer. Also available with aluminium platform plate.
– Access via platform with hatch and integrated inclined ladder or alternatively hatch and loose ladder.
– Full range of additional equipment such as external and internal brackets, mesh gratings for extra protection during roof work, various types of couplings, truss girders, pedestrian passage frames, etc.
