| Working height max: | 18m |
|---|---|
| Platform height max: | 16m |
| Range max: | 8,2m (200kg) |
| Lifting capacity max: | 200kg |
| Maximum number of people in the lift: | 2 |
| Basket size (LxWxH): | 1,2 x 0,8 x 1,1 m |
| Boom rotation: | 365° |
| Jib length: | 1,3m |
| Power outlet in basket: | Yes |
| Wheel drive: | Yes |
| Support legs: | Hydraulic |
| Support leg width: | Support leg width: |
| Slope: | 10% |
| Motortype: | Honda motor / 230V (battery option) |
| Transport length: | 6,1m |
| Transport width: | 1,64m |
| Transport height: | 2,01m |
| Net weight: | 2070kg |
| Weight | 2070 kg |
| Dimensions | 610 × 164 × 201 cm |

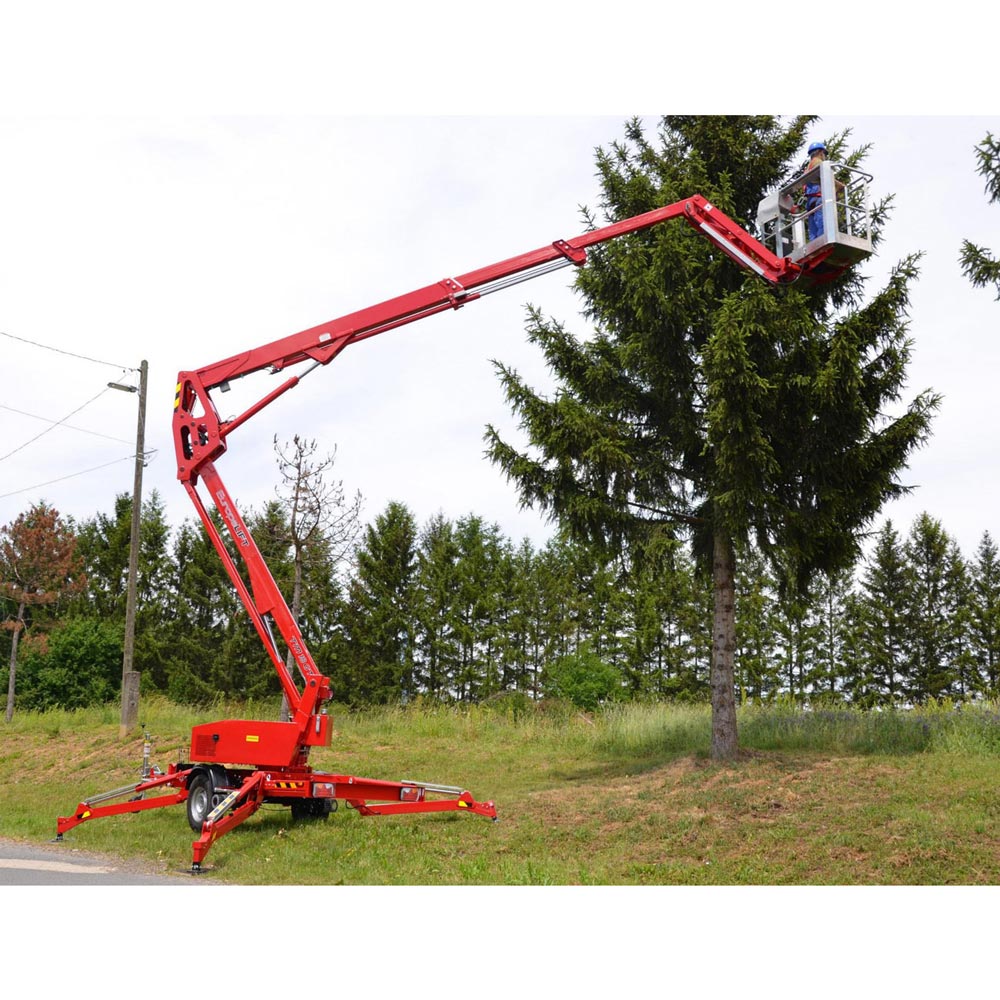

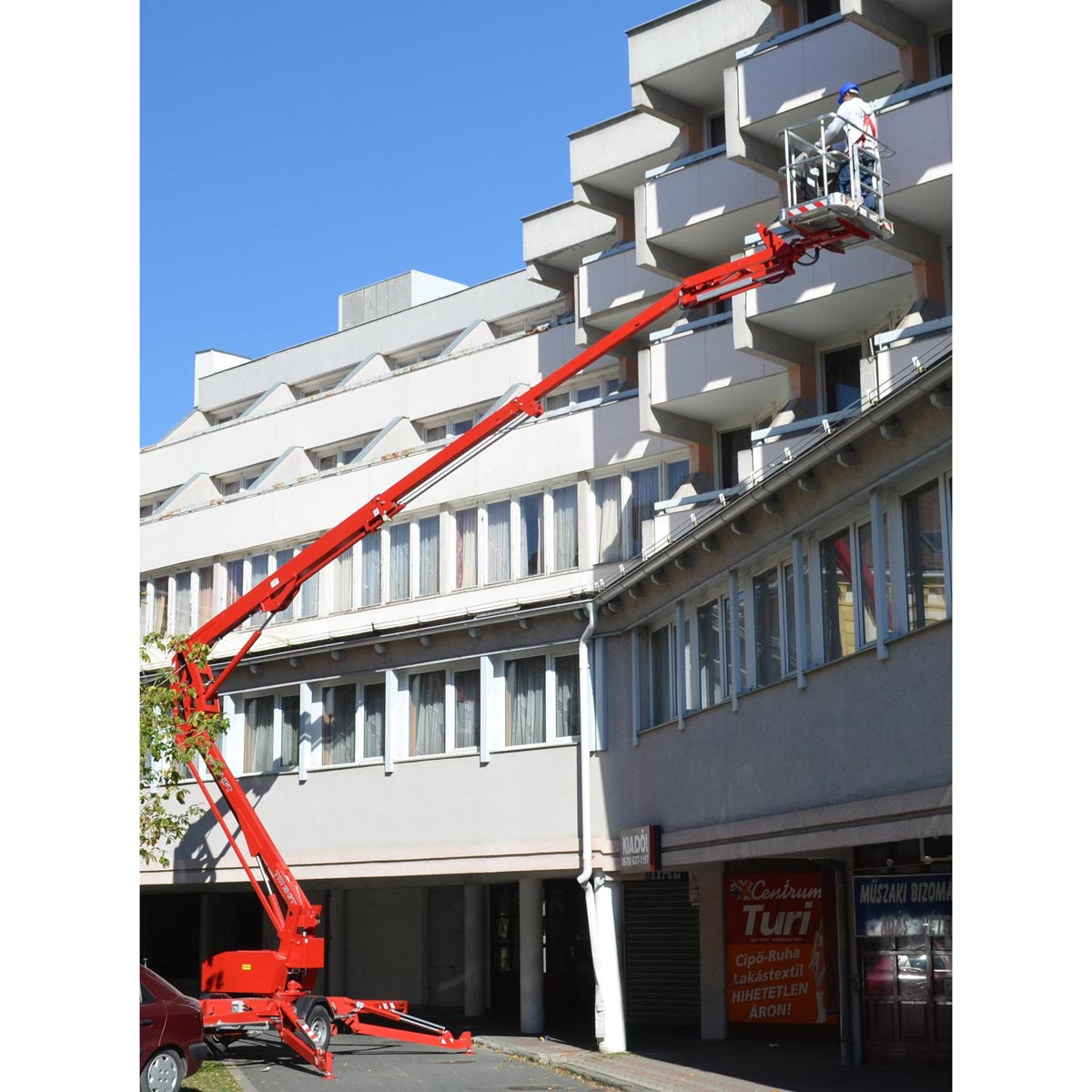

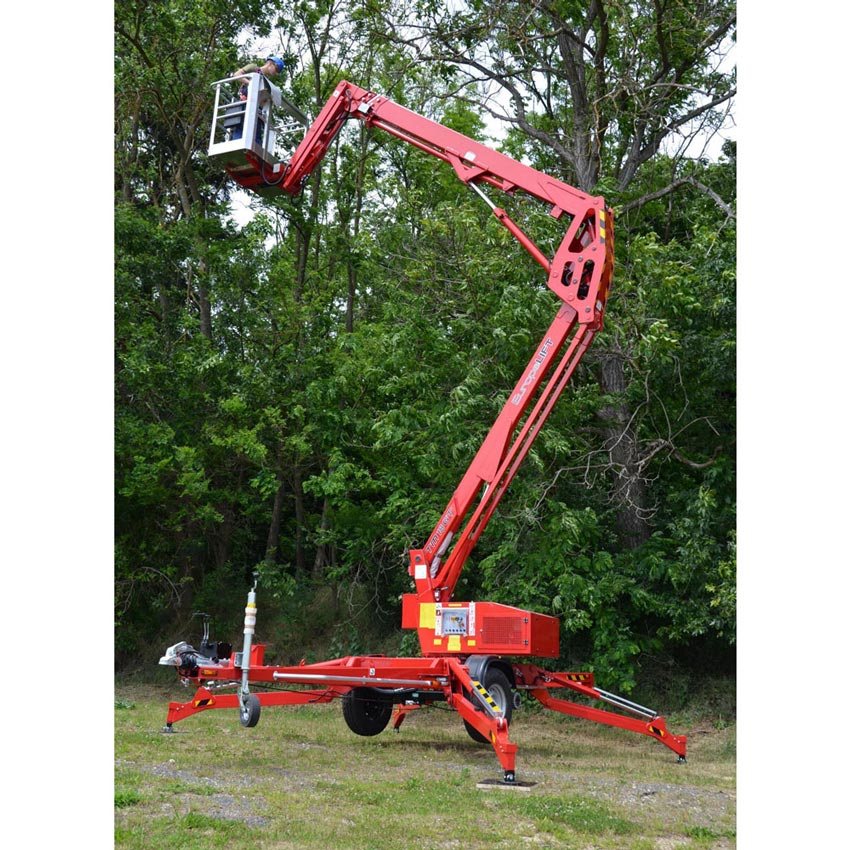

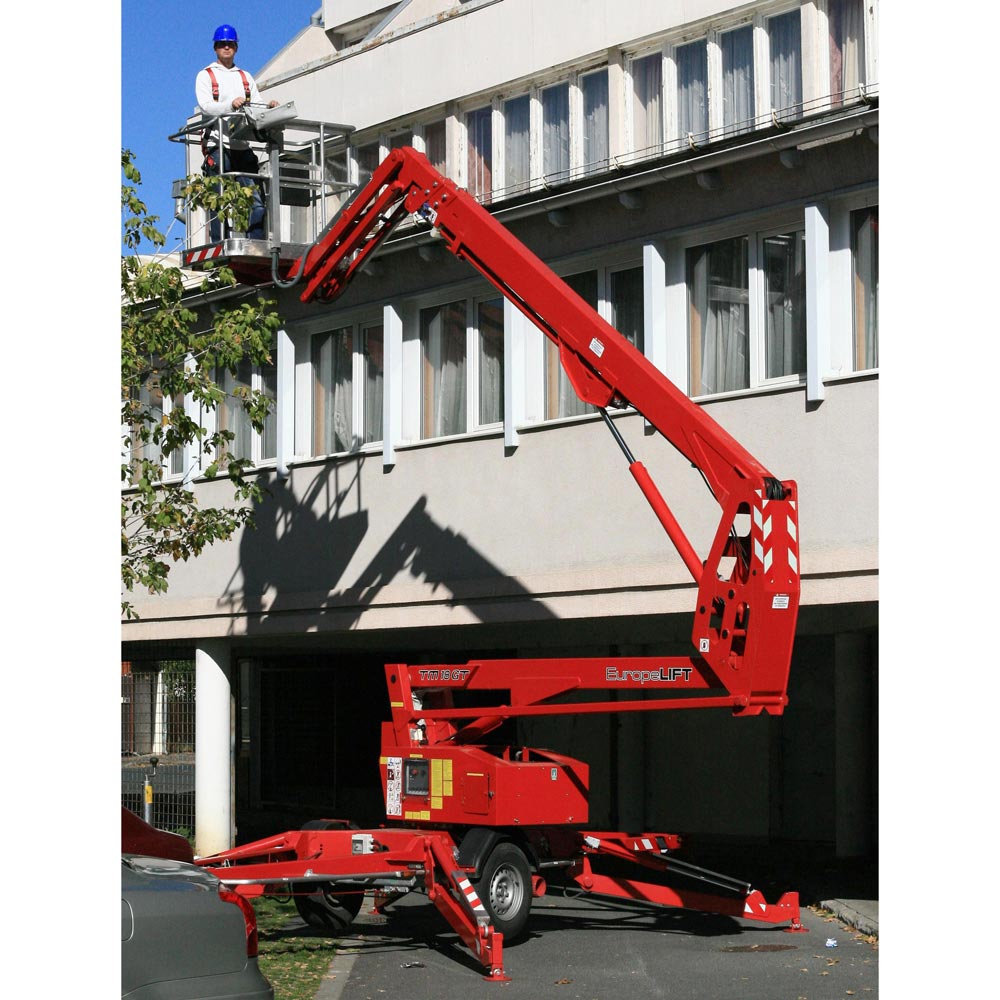

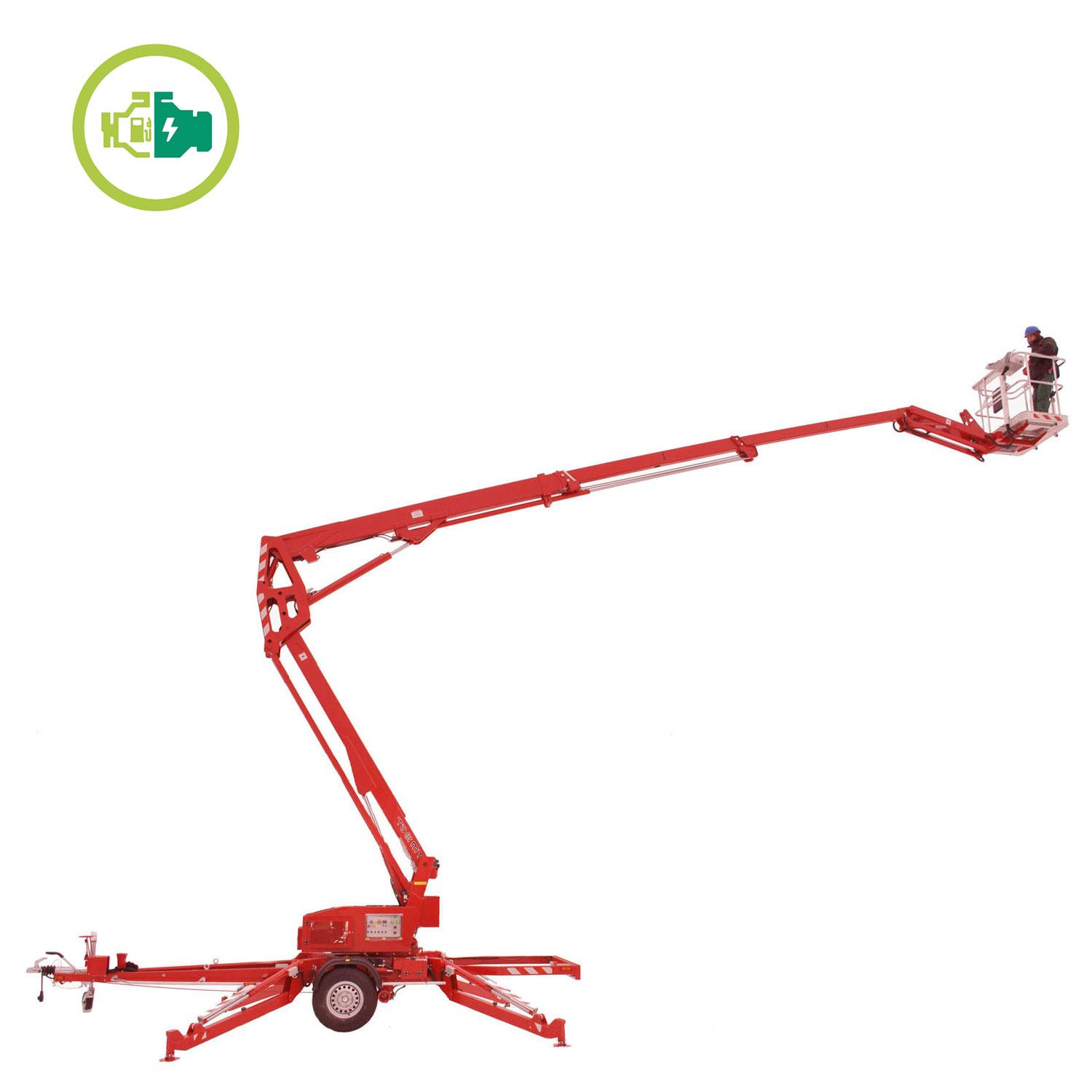

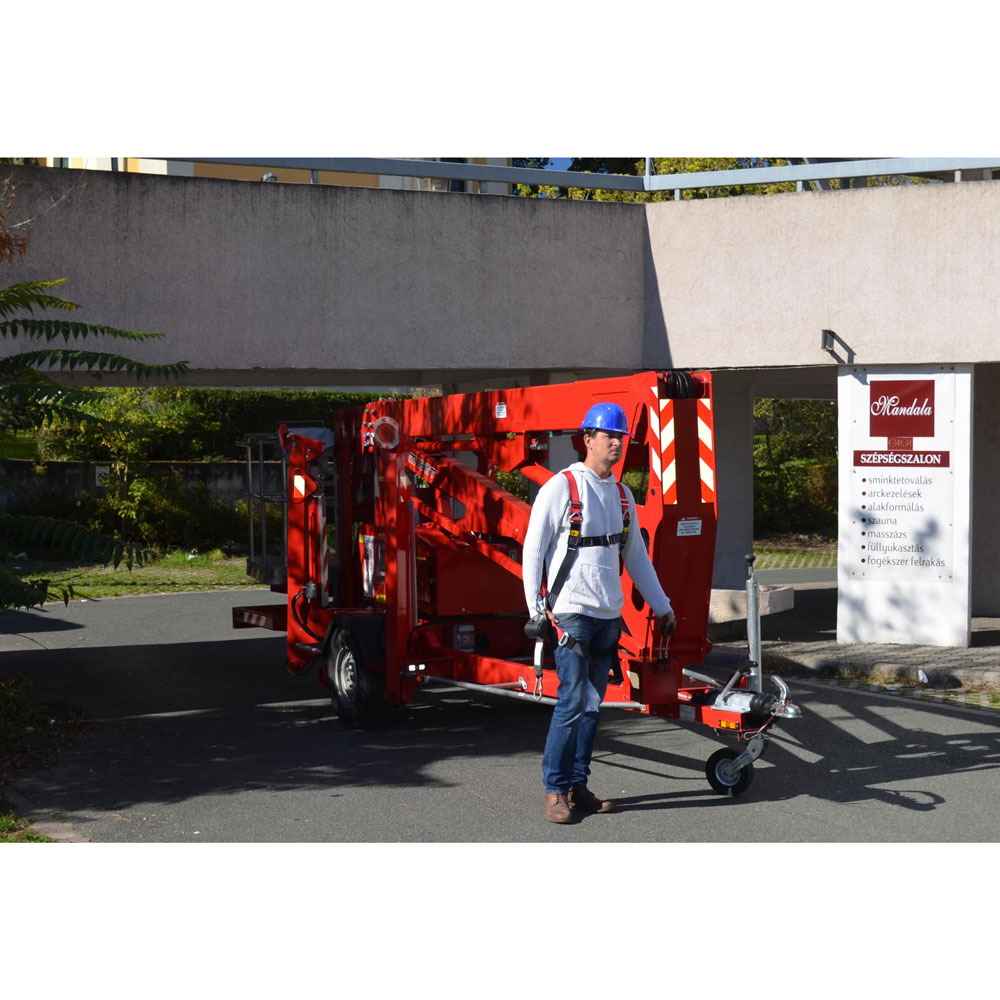

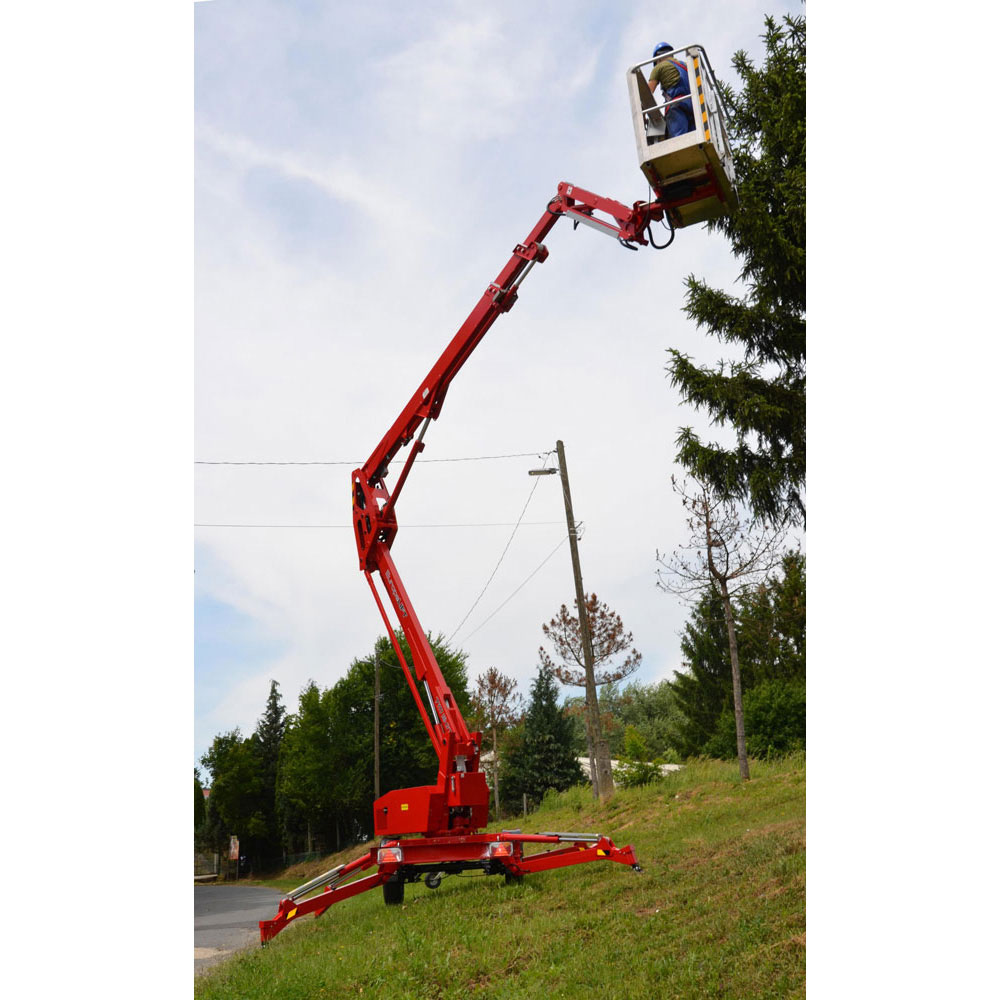

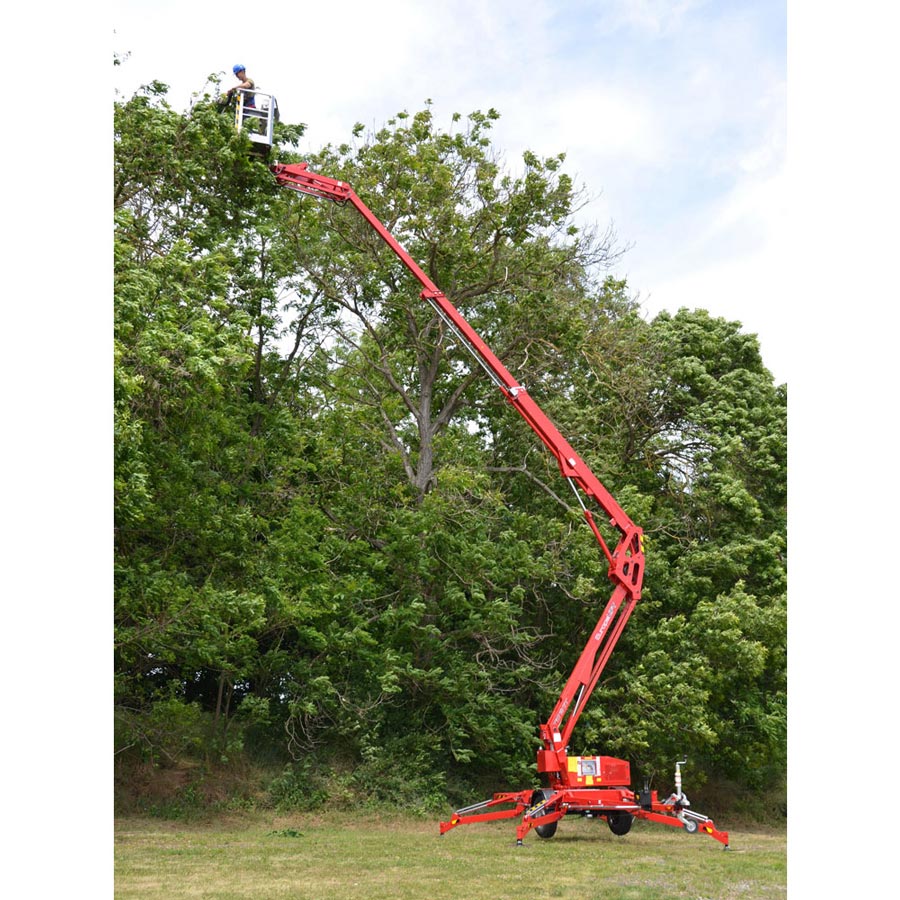

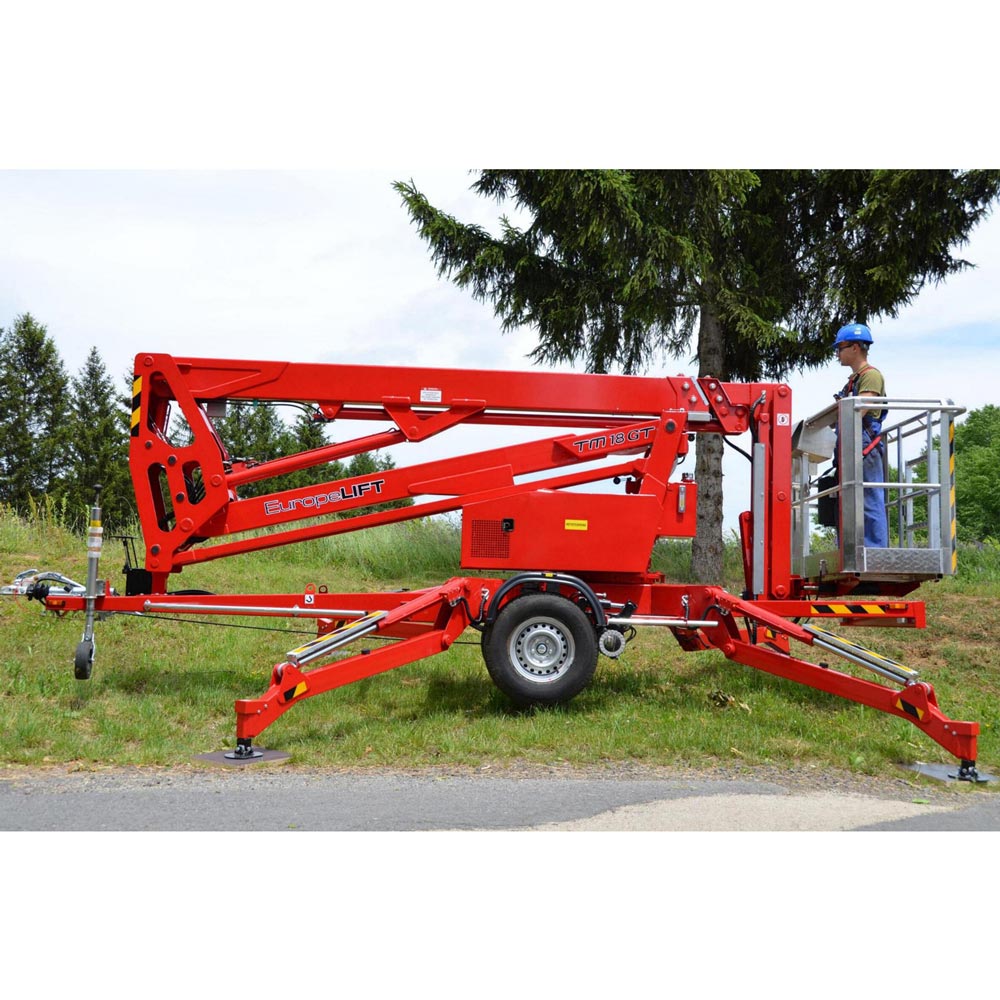

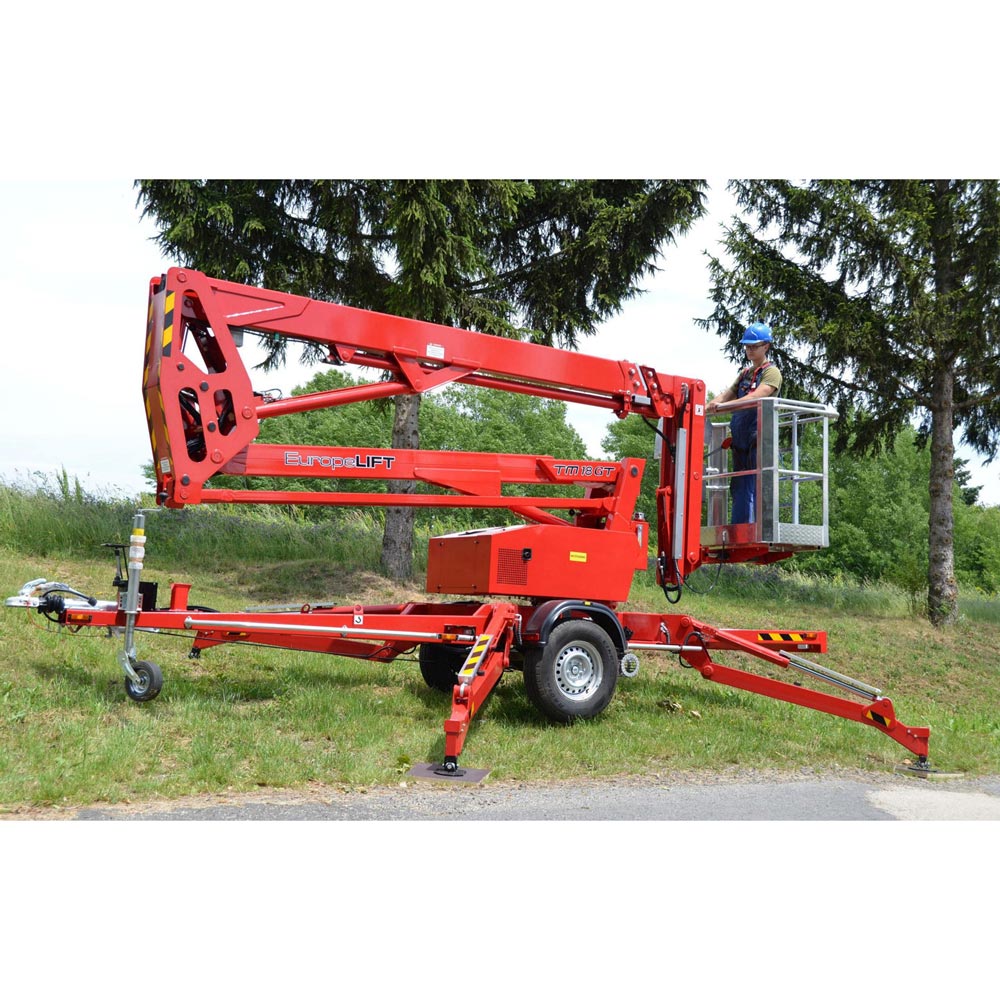

Europelift TM18 GT – 18m

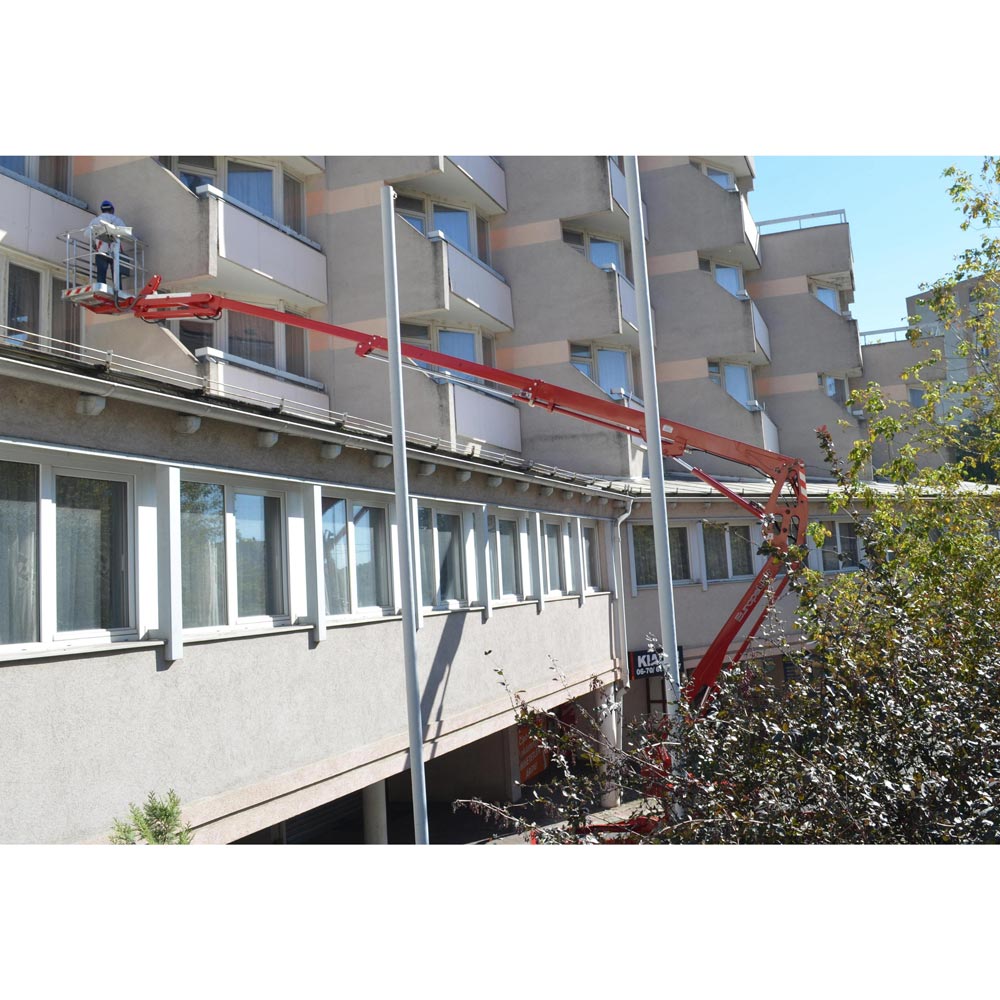

Europelift TM18 GT is a practical, user-friendly and robust trailer-mounted lift that makes difficult jobs easy. The lift has a working height of up to 18 meters, very good range and can be loaded with up to 200 kg.
The lift has a 230V AC power outlet in the platform and proportional electro-hydraulic control. This model includes propulsion on wheels, cornering rotation and Honda unit.
Call for Price
Send RequestStandard equipment:
• 230V and Honda motor
• Telescopic boom lift with proportional control
• 1,3m jib
• 230V AC outlet in the basket
• Wheel drive
• Platform level leveling with auto-correction of 3 °
• Chassis leveling sensor of 1 °
• Aluminum Basket with wide toolbox, safety handrail and harness points
• Proportional electro-hydraulic controls with fingertip joystick
• Ground pressure sensors on all anchor plates with audible and visible alarms
• Hour meter
• CE marking and EU approved for road
• Ground and upper controls with tarpaulin cover
• Manual recovery with hand pump
• Automatic reverse and overrun brakes plus parking brake
• Color of machine: RAL3002 (red)
Additional equipment:
• Operating option 230V
• Option Battery operation
• Automatic chassis level
• Custom color
• Dual-Power source 230V & Honda
• Battery power 24V 225Ah
• On-board 230V Generator 5KV Honda EM5500
• G.R.P. basket with toolbox (2 people)
• Anchor plate mats
