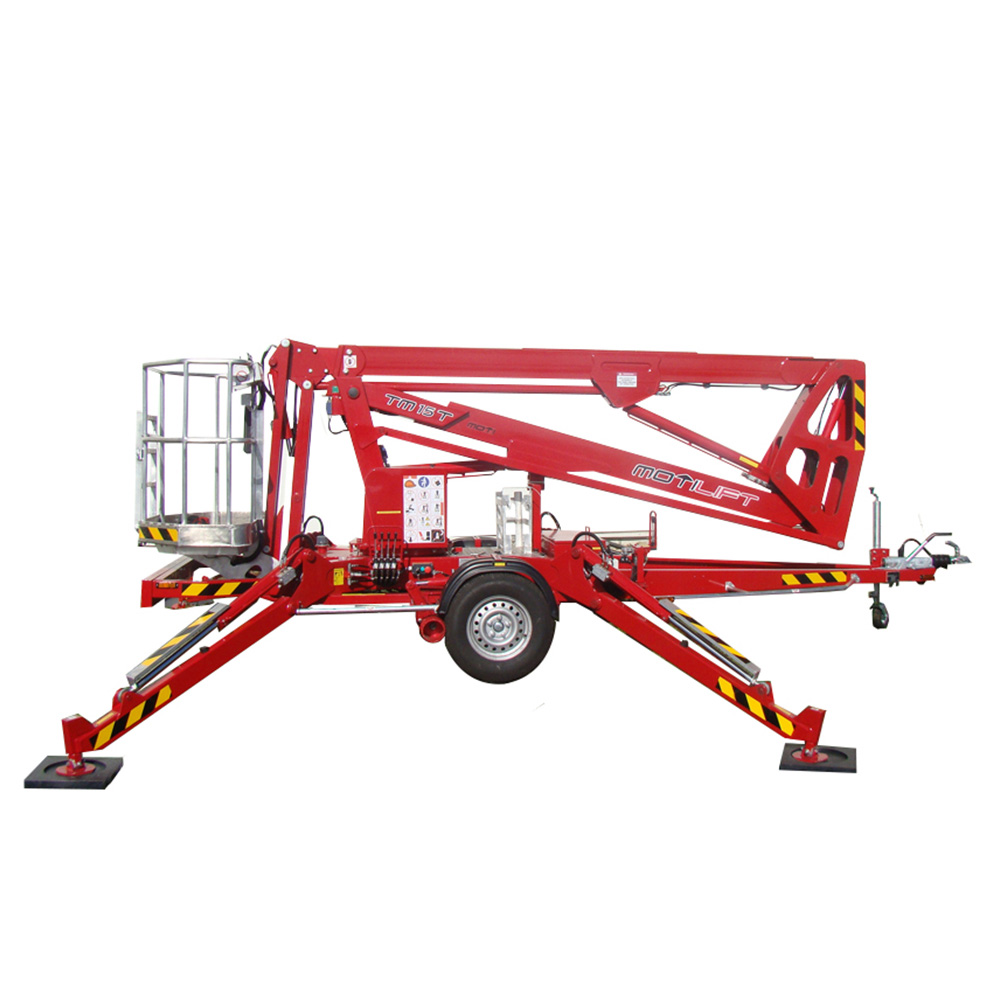

Europelift TM16 GT – 16m

17-16100

Europelift TM16 GT is a practical, user-friendly and robust trailer-mounted lift that makes difficult jobs easy. The lift has a working height of up to 15.6 meters, very good range and can be loaded with up to 220 kg.

The lift has a 230V AC power outlet in the platform and proportional electro-hydraulic control. This model includes propulsion on wheels, cornering rotation and Honda unit.

Call for Price

Send Request
Working height max:

15,6m

Platform height max:

13,6m

Range max:

8,1m

Lifting capacity max:

220kg

Maximum number of people in the lift:

2

Basket size (LxWxH):

1,2 x 0,8 x 1,1 m

Boom rotation:

355°

Jib length:

1,3m

Power outlet in basket:

Yes

Wheel drive:

Yes

Support legs:

Hydraulic

Support leg width:

3,72m

Slope:

8%

Transport length:

6,2m

Transport width:

1,64m

Transport height:

2,05m

Net weight:

1850kg

Weight 1850 kg
Dimensions 620 × 164 × 205 cm

Standard equipment:

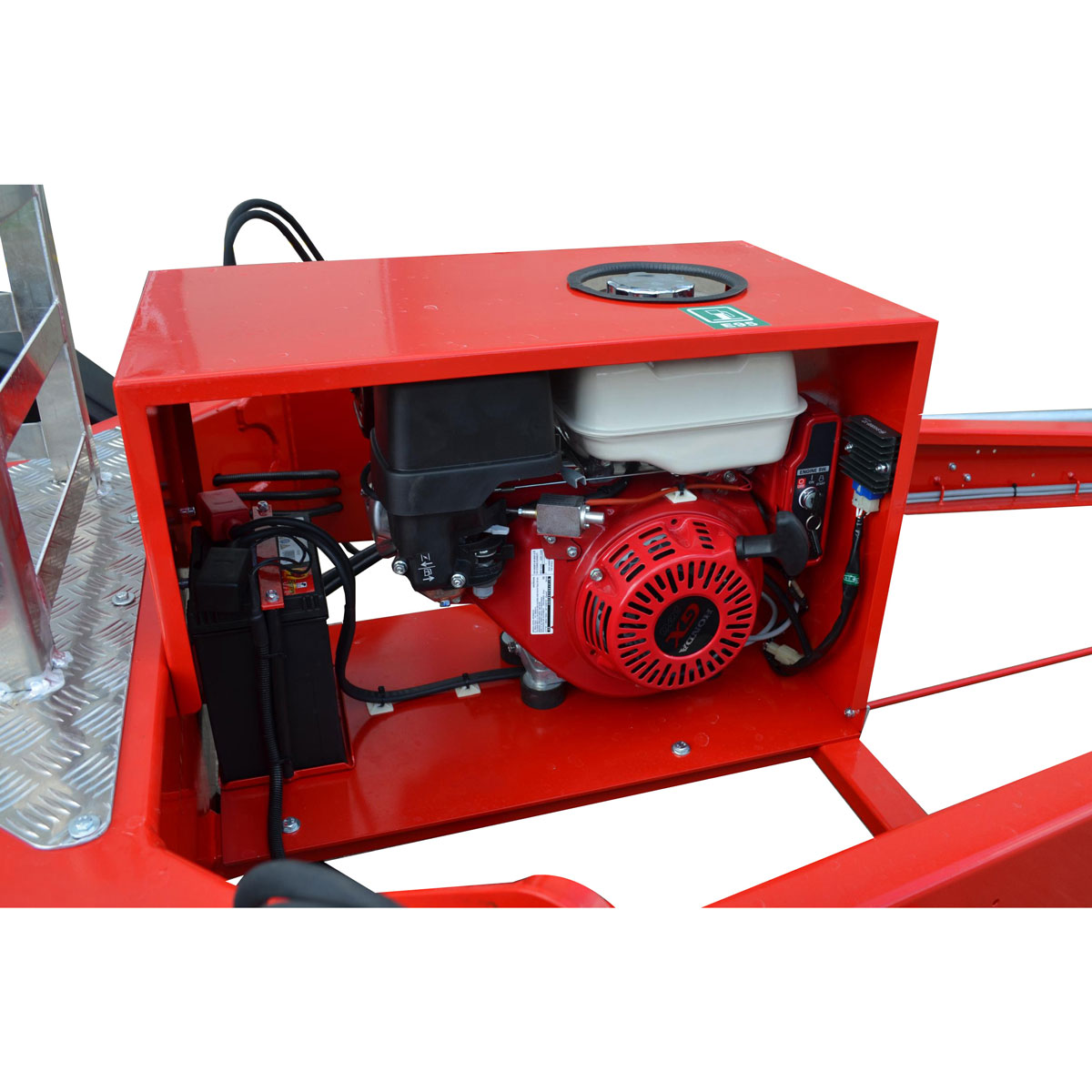

• 230V and Honda motor
• Telescopic boom lift with proportional control
• 1,3m jib
• 230V AC outlet in the basket
• Wheel drive
• Platform level leveling with auto-correction of 3 °
• Chassis leveling sensor of 1 °
• Aluminum Basket with wide toolbox, safety handrail and harness points
• Proportional electro-hydraulic controls with fingertip joystick
• Ground pressure sensors on all anchor plates with audible and visible alarms
• Hour meter
• CE marking and EU approved for road
• Ground and upper controls with tarpaulin cover
• Manual recovery with hand pump
• Automatic reverse and overrun brakes plus parking brake
• Color of machine: RAL3002 (red)



Additional equipment:
• Operating option 230V
• Option Battery operation
• Automatic chassis level
• Custom color
• Dual-Power source 230V & Honda
• Battery power 24V 225Ah
• On-board 230V Generator 5KV Honda EM5500
• G.R.P. basket with toolbox (2 people)
• Anchor plate mats
