| Working height max: | 15,6m |
|---|---|
| Platform height max: | 13,6m |
| Range max: | 7.5m (220kg basket) |
| Lifting capacity max: | 220kg |
| Maximum number of people in the lift: | 2 |
| Basket size (LxWxH): | 1.2 x 0.8 x 1.1m |
| Boom rotation: | 355° |
| Jib length: | 1,3m |
| Power outlet in basket: | Yes |
| Support legs: | Hydraulic |
| Support leg width: | ca 3m |
| Slope: | Slope 12 ° (21.3%) |
| Motortype: | Honda Kubota engine (battery available as an option) |
| Transport length: | 5,18m |
| Transport width: | 0,78m |
| Transport height: | 1,99m |
| Net weight: | 2100kg |
| Weight | 2100 kg |
| Dimensions | 518 × 78 × 199 cm |

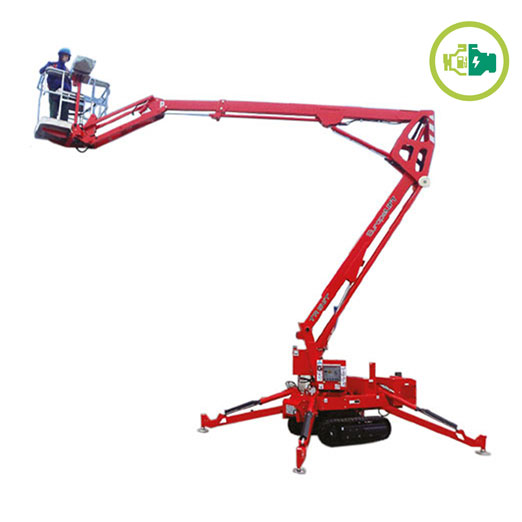

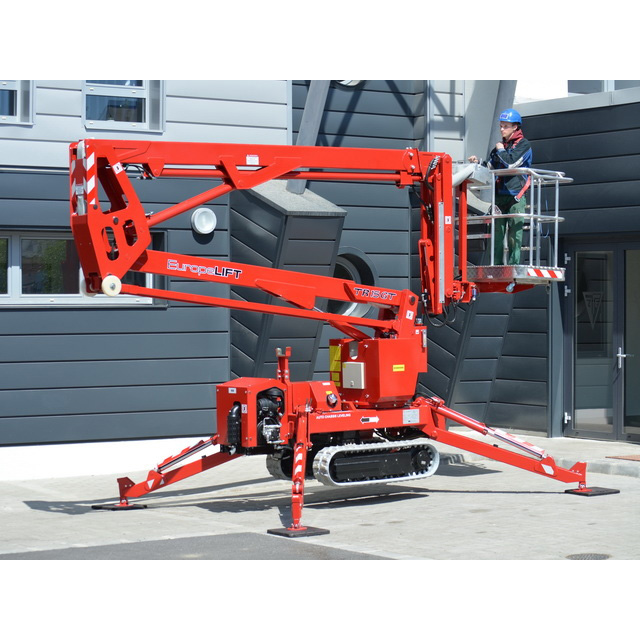

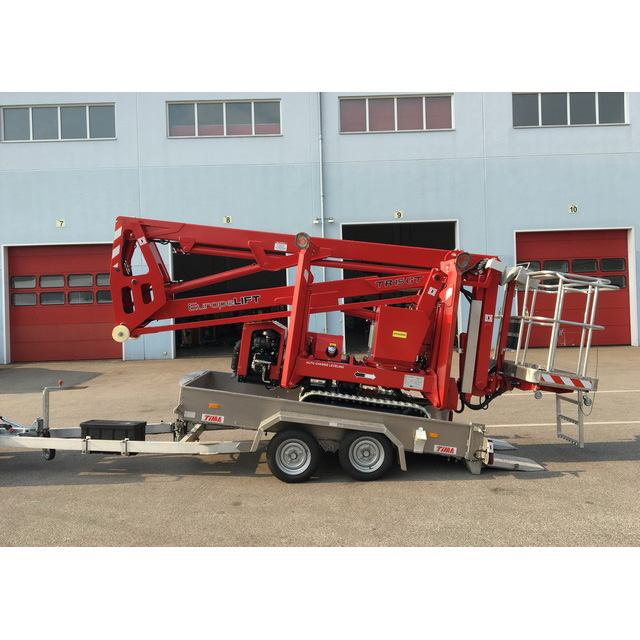

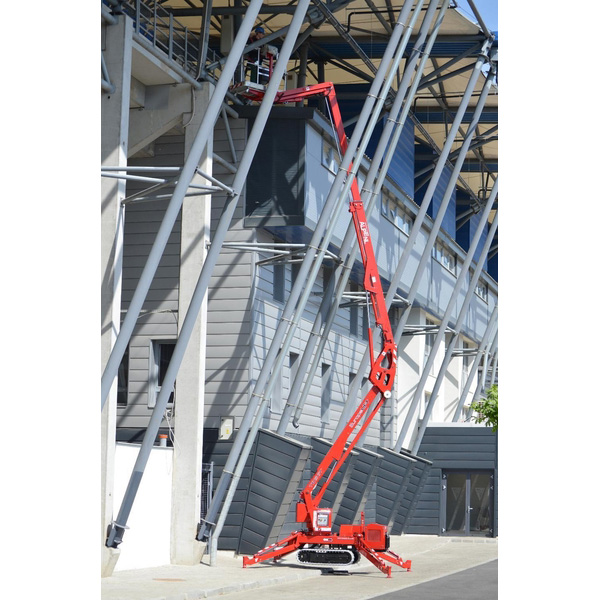

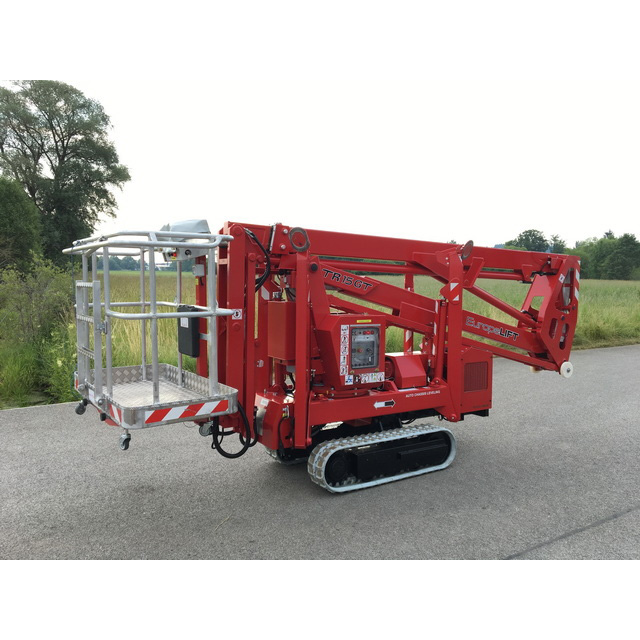

Europelift TR15 GT – 15m
Europelift has a wide range of crawler lifts for indoor and outdoor use. Europelift TR15GT is easy to use while having an impressive lifting height. With a relatively low ground pressure and mark-free belts, this is suitable for everything from flat floors to rough terrain.
Europelift TR15GT has a working height of 15.6 m and a horizontal extension of 7.5 m. The platform capacity is 220 kg and the basket can rotate 355 °. With a minimum width of 78 cm, it is easy to transport and can get through most doors without any problem.
Call for Price
Send RequestStandard equipment:
• Automatic platform level with 3 automatic adjustments
• Proportional electro-hydraulic controls with fingertip joystick
• 1,3 m jib
• Ground pressure sensors on all anchor plates with audible and visible alarms
• Ground and upper controls with tarpaulin cover
• 230V outlet in the basket
• Aluminum basket with handrail and tool box
• Hour meter
• Emergency lowering
• Color of machine: RAL3002 (red)
Additional equipment:
• Operating options Battery operation
• Automatic chassis level
• Custom color
• G.R.P. basket with toolbox (2 people)
• Anchor plate mats
