| Working height max H1 | 15m |
|---|---|
| Platform height max H2 | 13 m |
| Platform extension size | 1.2 m |
| Lifting capacity with single extension | 680 kg |
| Lifting capacity with double extension | 570 kg |
| Lifting capacity on the extension | 230 kg |
| Dimension of the platform B*C*A | 3.9 * 1.9 * 1.15 m |
| Platform length with single extension K | 5.1 m |
| Platform length with double extension K | 6.3 m |
| Length and width E*F - double extension | 4.47 * 2.3 m |
| Length and width E*F - single extension | 3.98 * 2.3 m |
| Length and width E*F with support legs | 4.88 * 2.3 m |
| Height D | 2.99 m |
| Height - guardrail down M | 2.19 m |
| Wheelbase G | 2.97 m |
| Ground clearance H | 0.32 m |
| Turning radius-inside | 2.72 m |
| Turning radius-outside | 5.89 m |
| Raising time/lowering time | 68/50 s |
| Drive speed-stowed | 5 km/h |
| Drive speed-raised | 1 km/h |
| Driving height | 9.6 m |
| Gradeability | 45% |
| Outrigger level (front to back) | 7° |
| Outrigger level (side to side) | 11° |
| Wheel drive | 4WD |
| Power source | Yanmar4TNV88 |
| max. number of people in lift | 3 pers |
| Weight | 6950 kg |
| Dimensions | 488 × 230 × 299 cm |

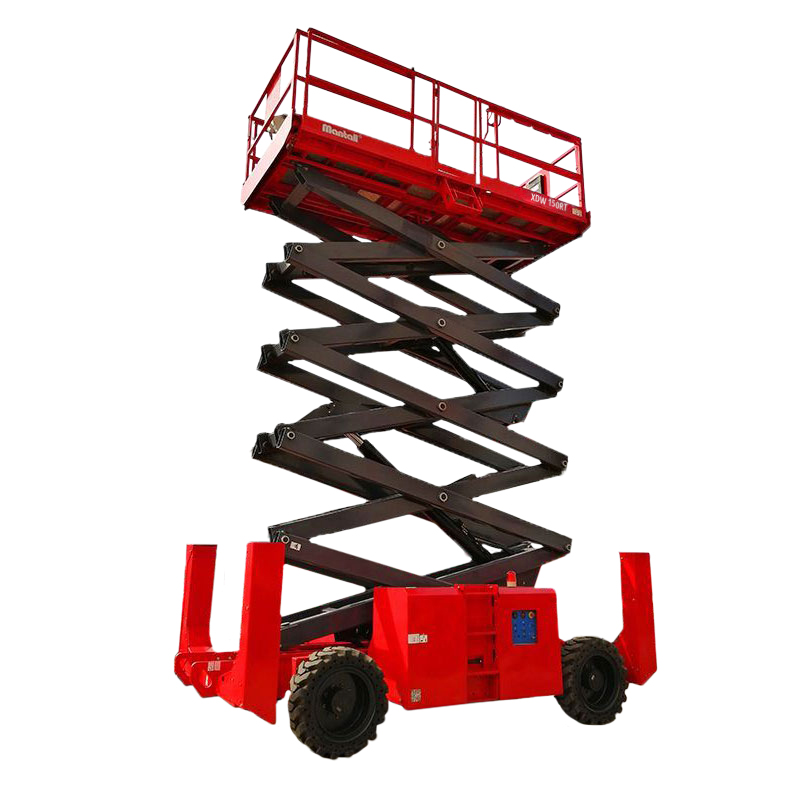

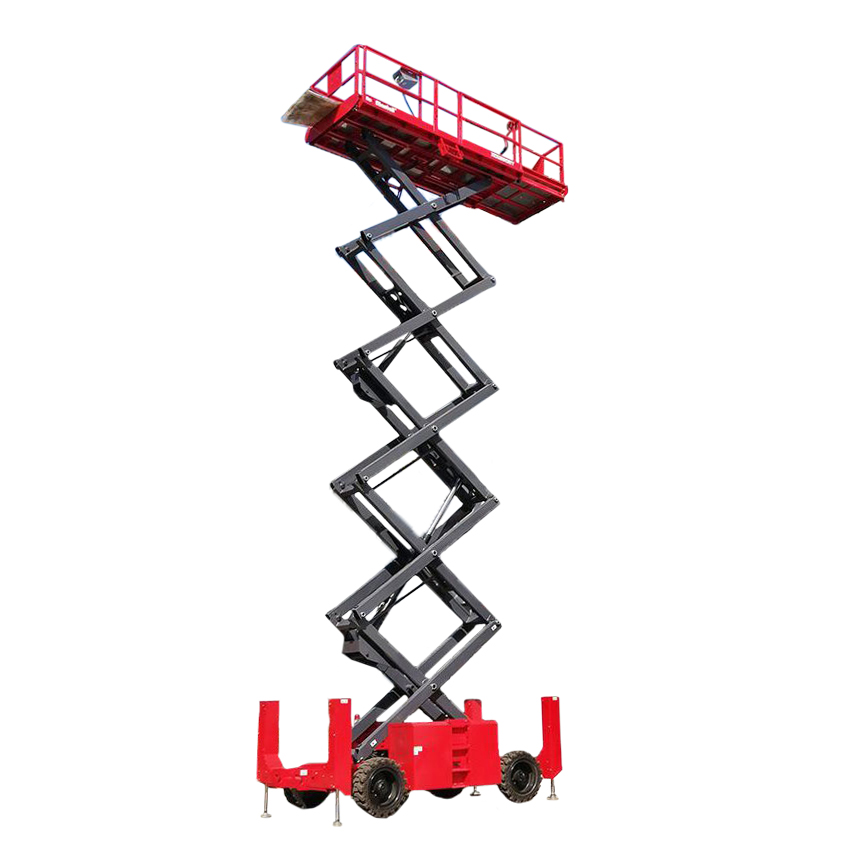

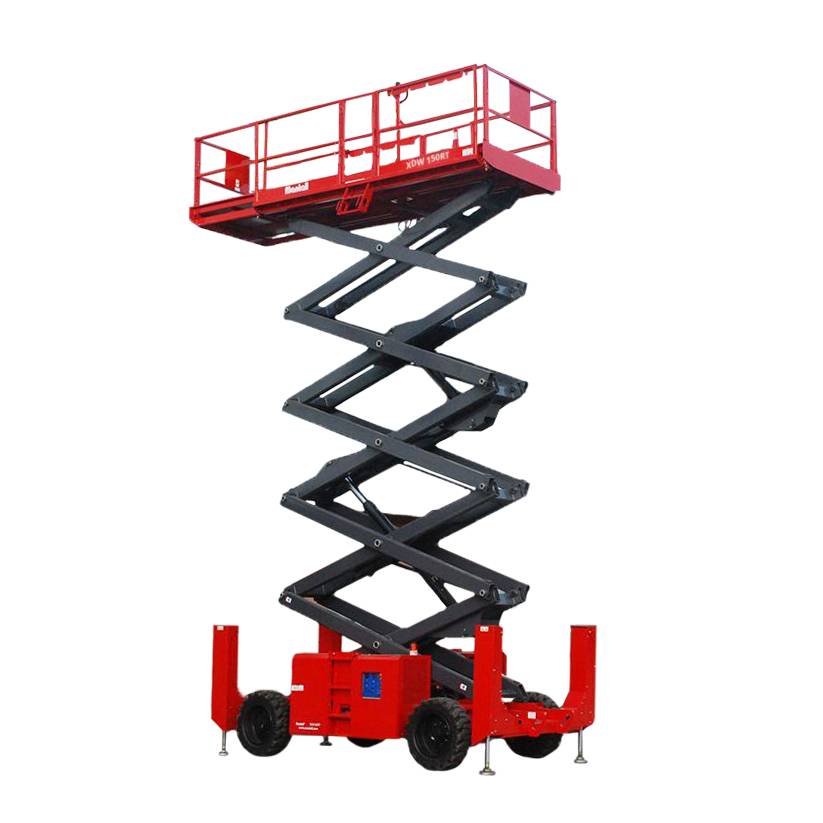

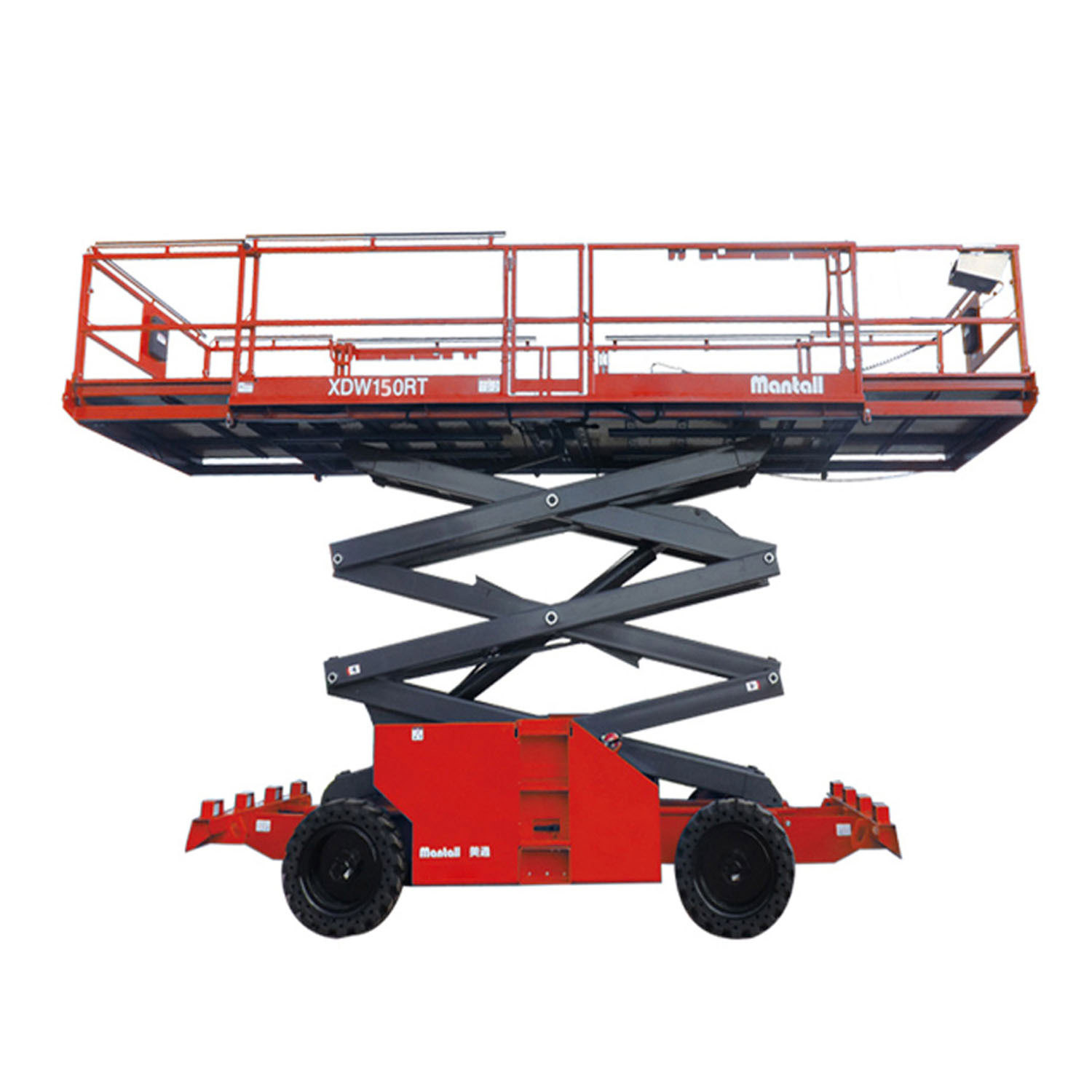

Mantall XDW150RT -15m
Mantall XDW150RT is an all-terrain scissor lift with a maximum working height of 15 meters. The machine has a maximum platform capacity of 680kg and can carry up to 3 people.
The lift has a large working surface as it has a double platform extension, giving a total platform length of 6.3m.
The XDW150RT is equipped with a diesel engine, four-wheel drive and 45 percent gradeability that enables you to perform most jobs in rough terrain.
The machine also has a number of safety features for safe operation, as well as joystick with proportional control for lifting and traveling, making the lift very easy to use.
Call for Price
Send RequestStandard Features
- Diesel engine
- Foldable railing
- Diagnostic system
- AC wiring to platform
- 4 WD
- Tilt sensor with alarm
- Emergency lowering
- Emergency stop
- Hour meter
- Warning light
- Proportional driving
- Solid tires for rough terrain
- Push-out on platform
- CE-marked
Optional
- Automatic leveling hydraulic outriggers (XDW120RT and XDW150RT)
- DC power supply
- Cold start components for engine
- Non-marking RT tires
