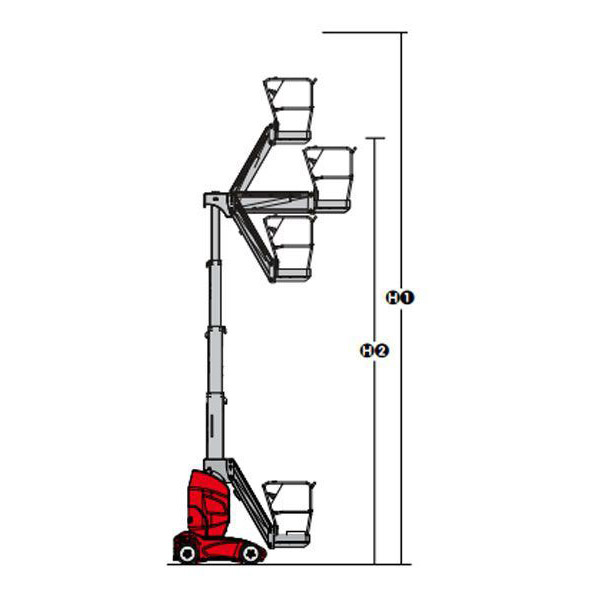

| Max. working height H1 | 8m |
|---|---|
| Max. platform height H2 | 6m |
| Max. outreach | 3.15m |
| Lift capacity | 200kg |
| Platform size (L*W*H) | 0.91 × 0.85 x 1.14m |

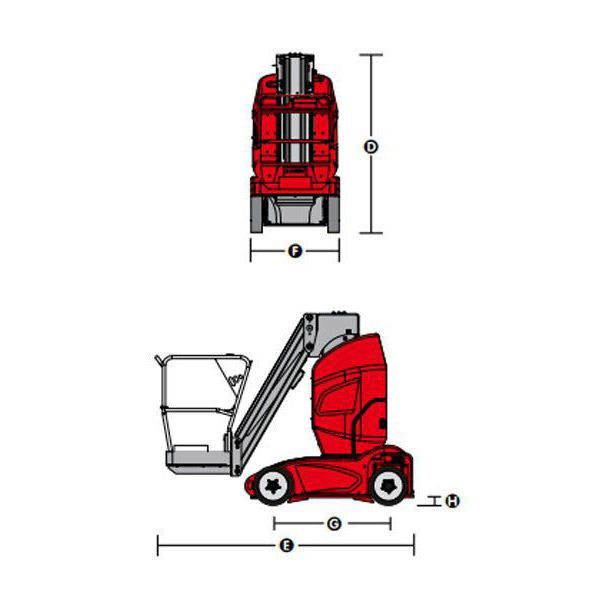

| Length and width E*F | 2.76×0.99 |
| Height | 1.99m |
| Wheelbase G | 1.2m |
| Ground clearance H | 0.075m |
| Ground clearance-deployed pothole | 0.025m |
| Turning radius outside | 1.82m |
| Turning radius inside | 0m |
| Speed, platform down | 4.5km/h |
| Speed, platform up | 0.7km/h |
| Jib swing | -60°/+60° |
| Gradeability | 23% |
| Max. vertical tilt ° | 2.5° |

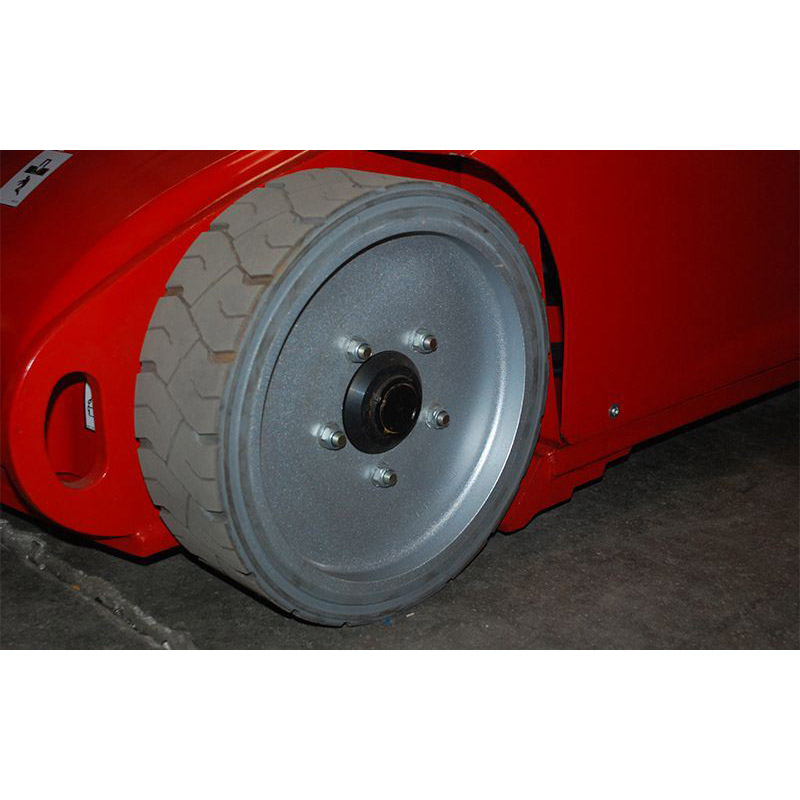

| Tire | 406*125 mm |
| Power source | DC24V/240Ah |
| Weight | 2800 kg |
| Dimensions | 276 × 99 × 199 cm |
Mantall IMP80J – 8m

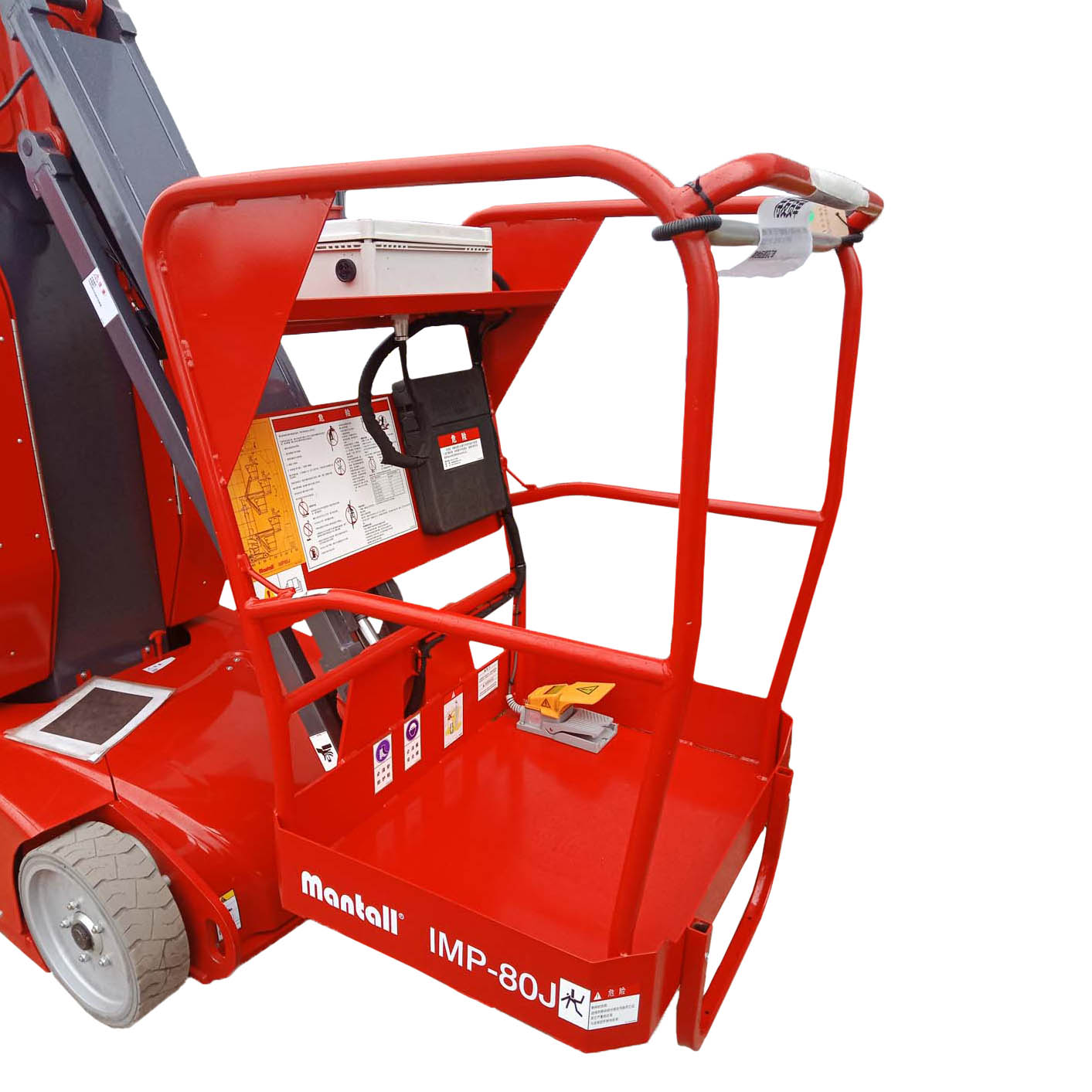

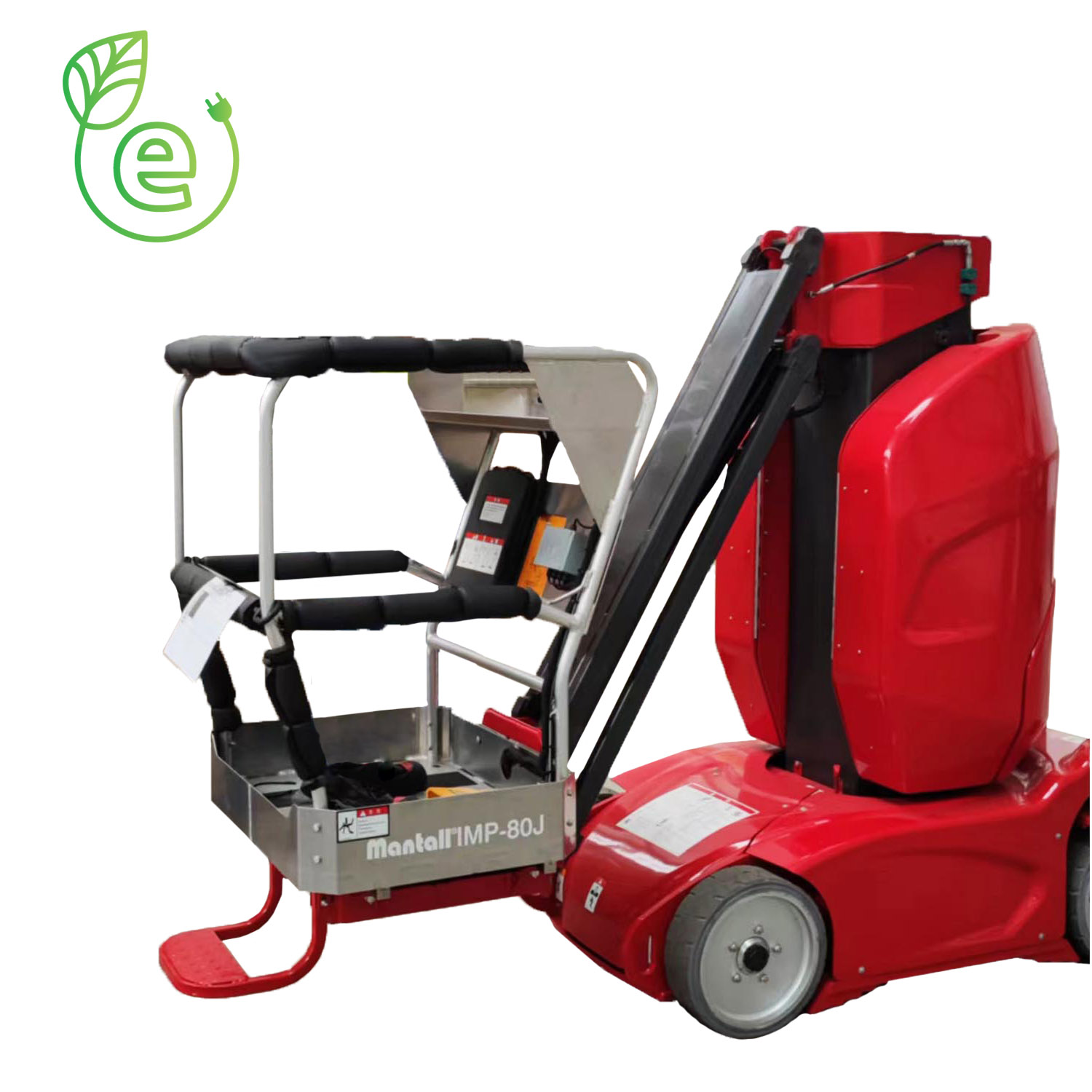

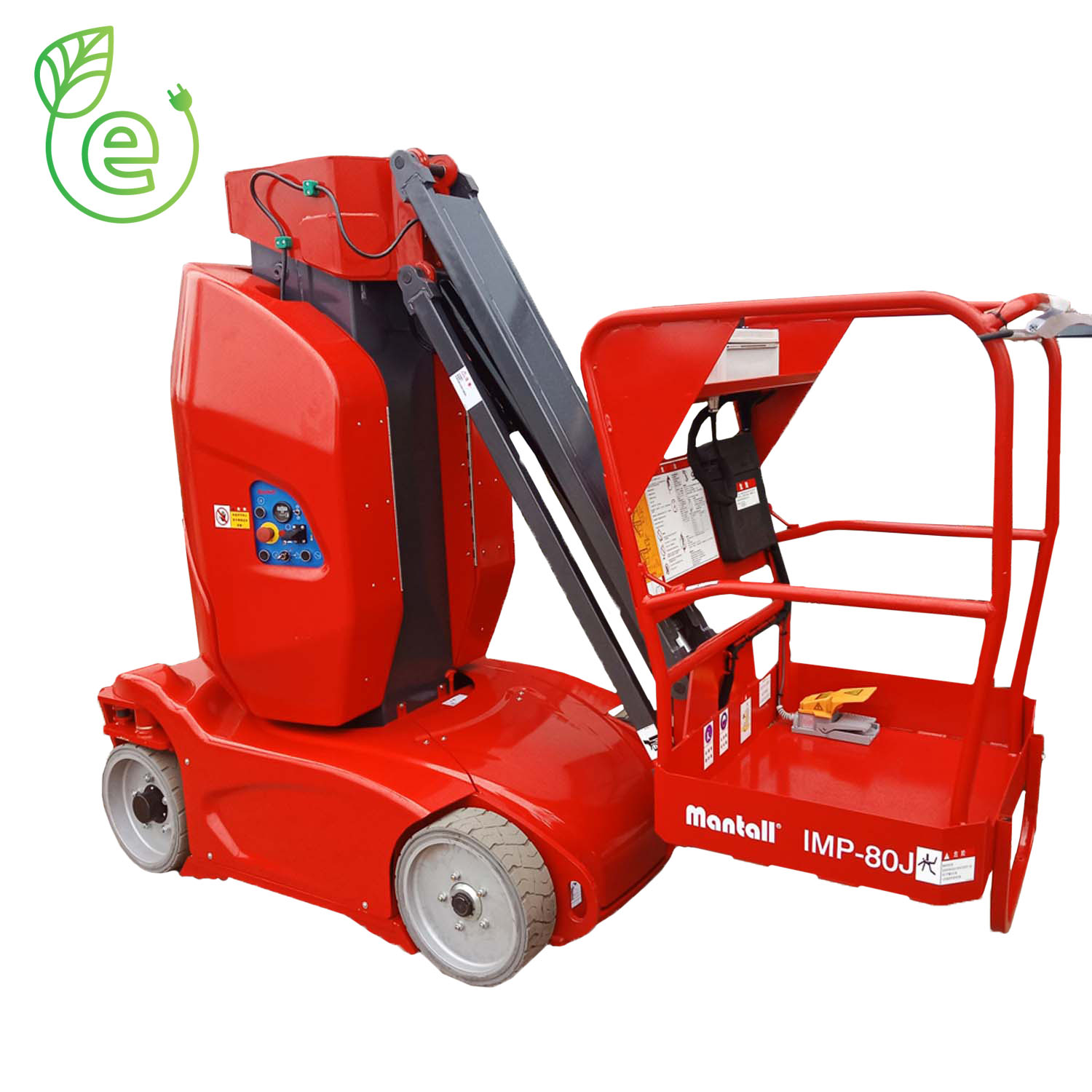

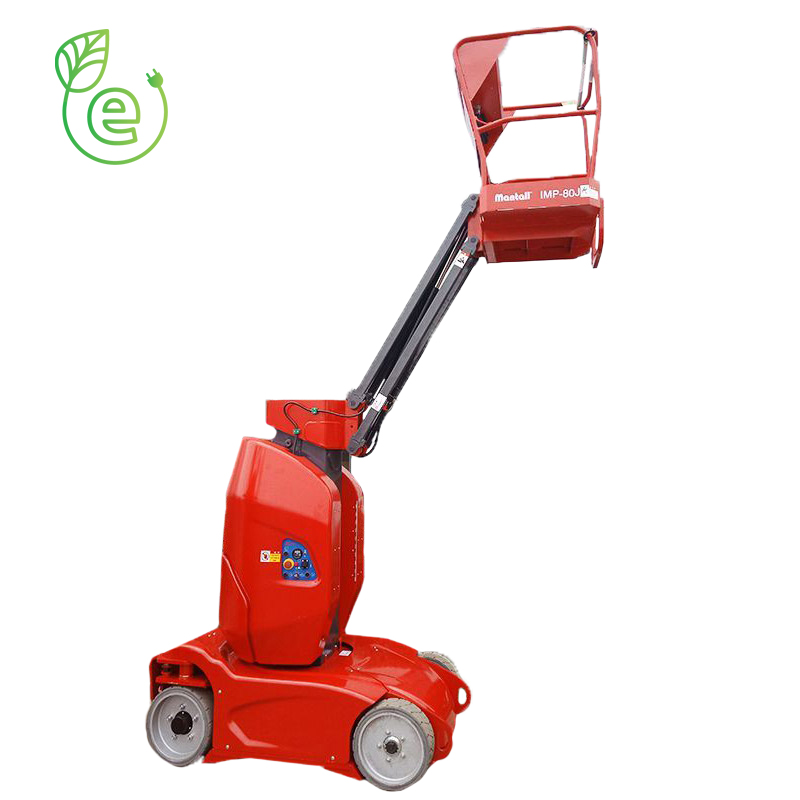

Mantall IMP80J is a battery-powered mast lift designed for tasks that require long reach on small floor areas. The lift has a maximum working height of 8m, a reach of 3.15m and a platform capacity of 200 kg.
The machines are equipped with a newly developed dual DC motor, which ensures lower power consumption and greater torque for stable lifting and fast travel.

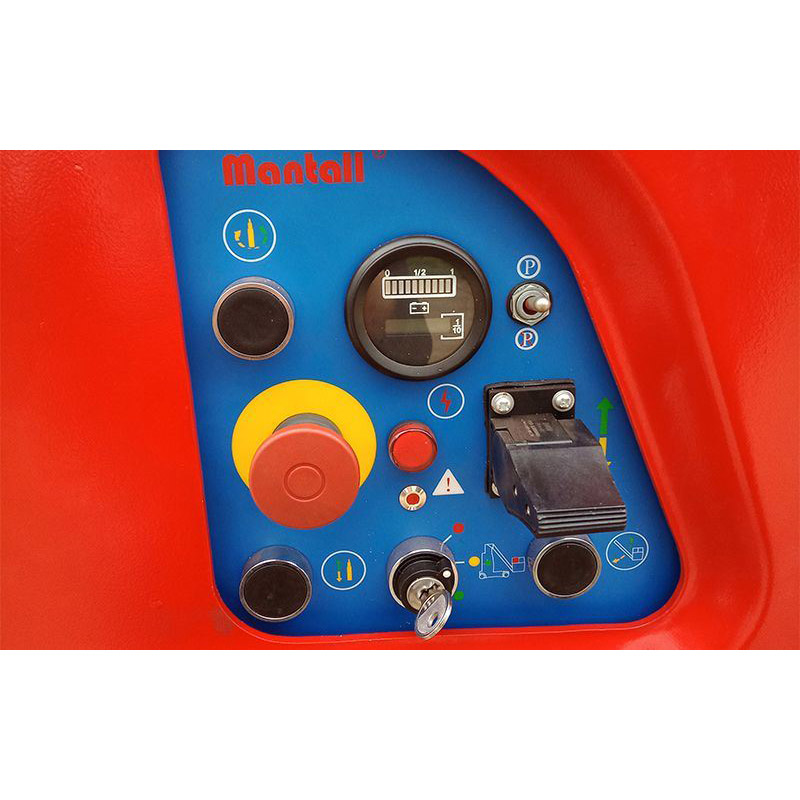

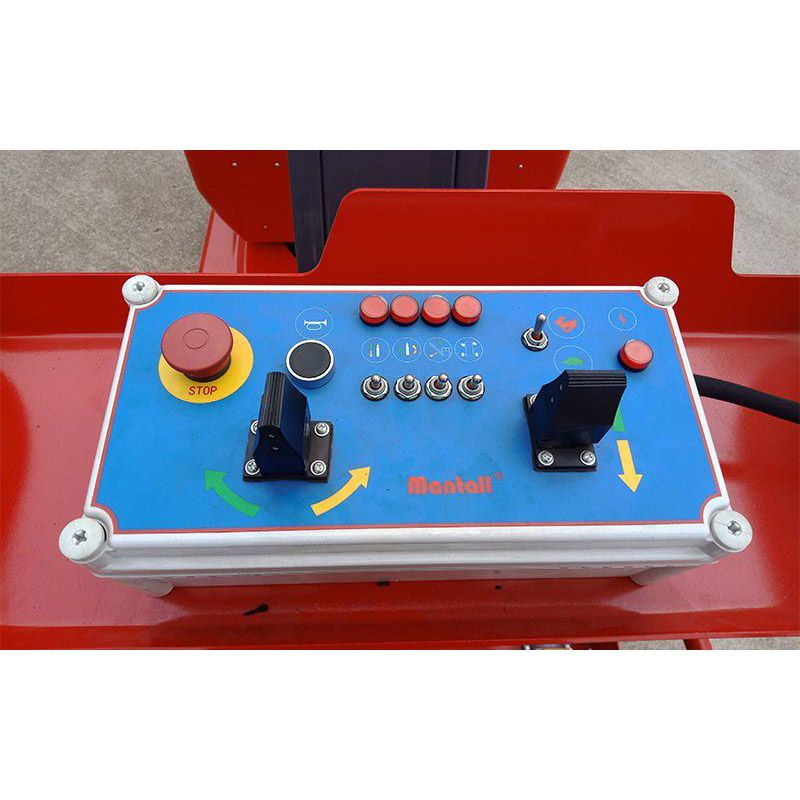

The lift has a number of safety features for safe operation, as well as joystick with proportional control for lifting and driving, making the lift very easy to use. The lift can be driven from full height.
Call for Price
Send RequestStandard Features
- Battery powered
- Proportional driving
- AC wiring to platform
- Non-marking wheels
- Automatic braking system
- Emergency lowering
- Emergency stop
- Self-diagnosis system
- Hour meter
- Forklift pockets
- Warning light
- Integrated battery charger
- CE-marked
