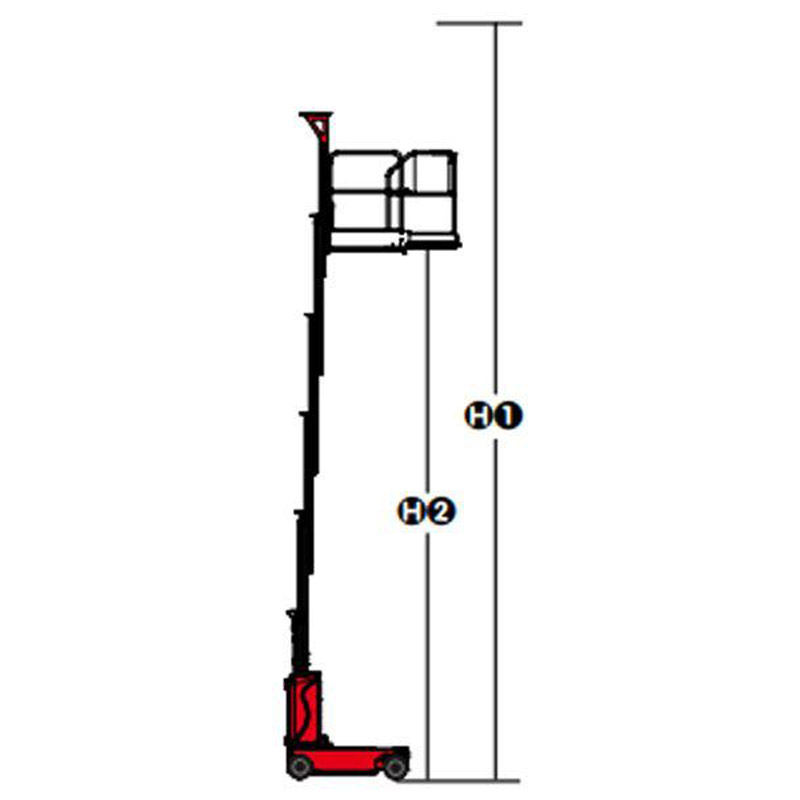

| Max. working height H1 | 6.5m |
|---|---|
| Max. platform height H2 | 4.5m |
| Platform extension | 0,6m |
| Lift capacity | 230 kg |
| Lift capacity on extension | 115 kg |
| Platform size | 0.9 × 0.75m |
| Platform size- extended | 1.50 × 0.75m |

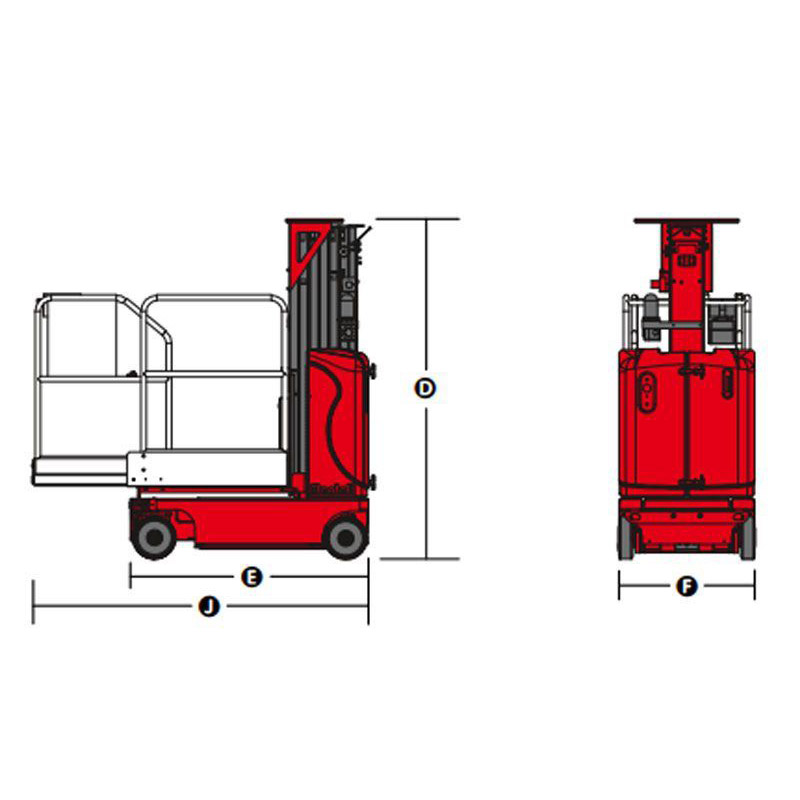

| Length and width E*F | 1.40 × 0.8 |
| Height | 1.6m |
| Ground clearance H | 0.06m |
| Turning radius inside | |
| Turning radius outside | 1.42m |
| Raise/lower time (sec) | 20/18s |
| Speed, platform down | 4.0km/h |
| Speed, platform up | 0.8km/h |
| Gradeability | 30% |

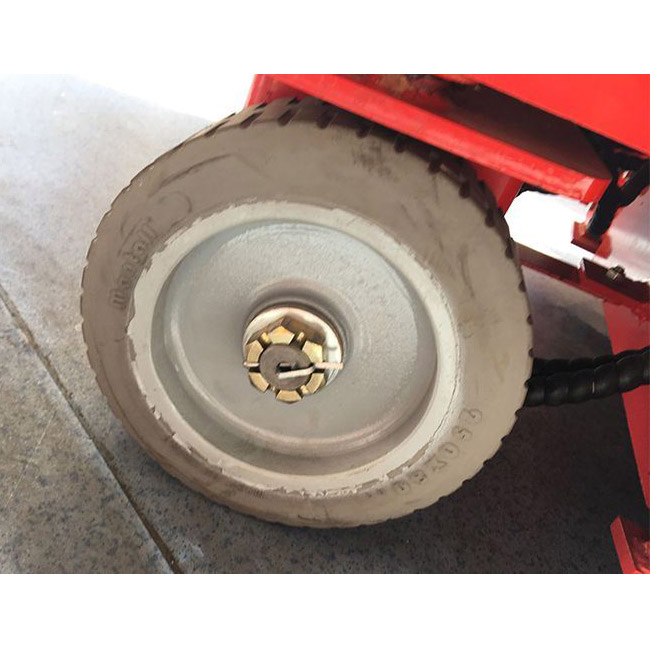

| Tire | 250 × 80 × 200mm |
| Power source | DC24V/225Ah |
| Weight | 1015 kg |
| Dimensions | 140 × 80 × 160 cm |

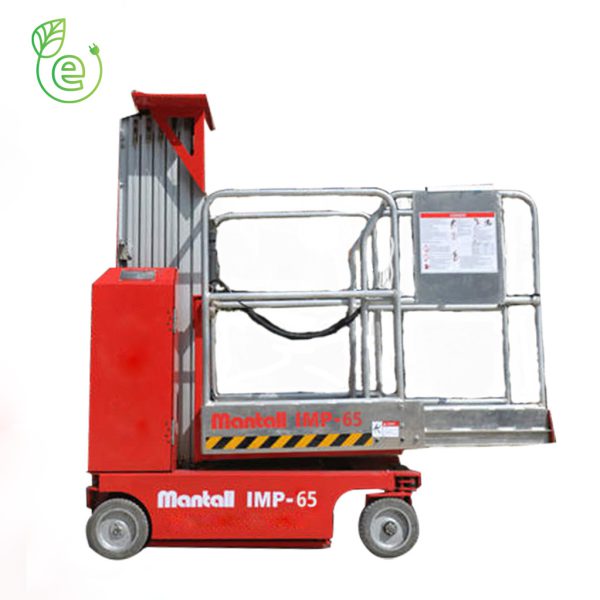

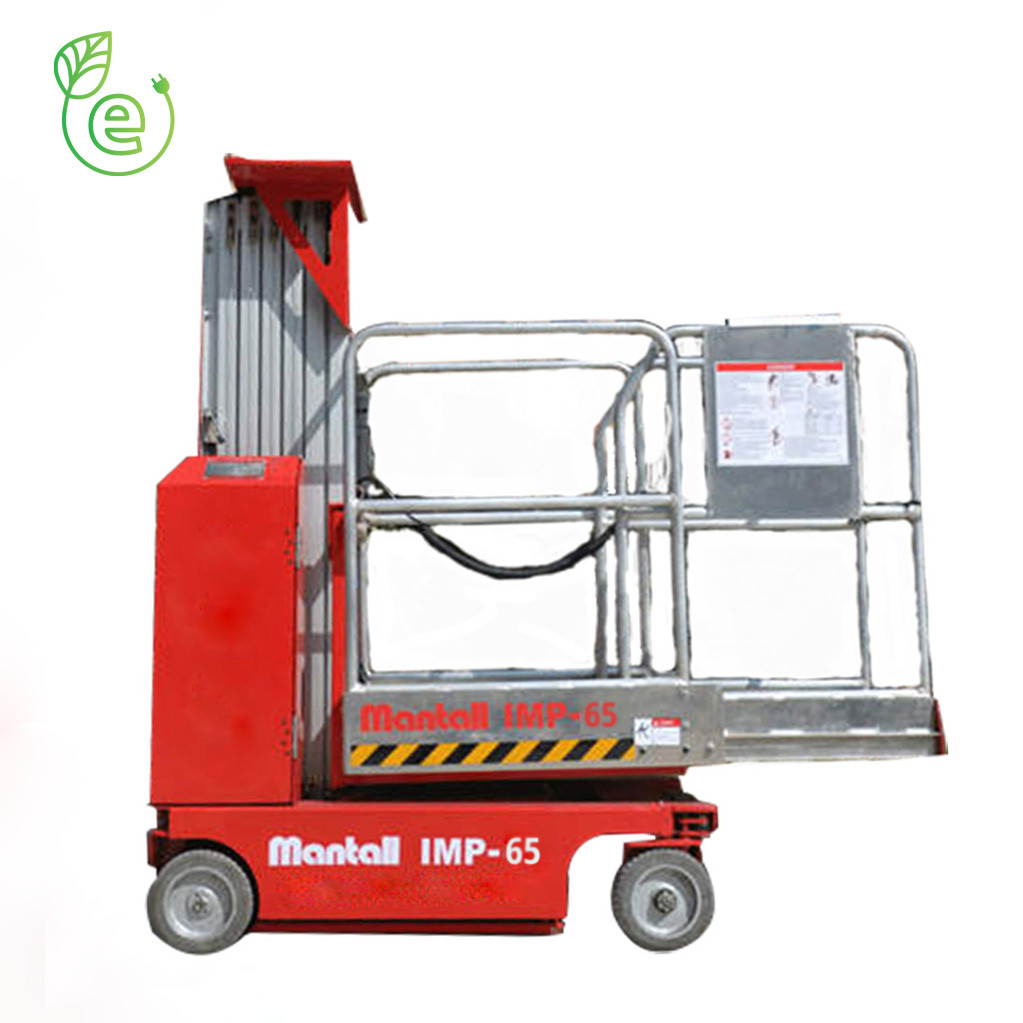

Mantall IMP65 – 6.5m

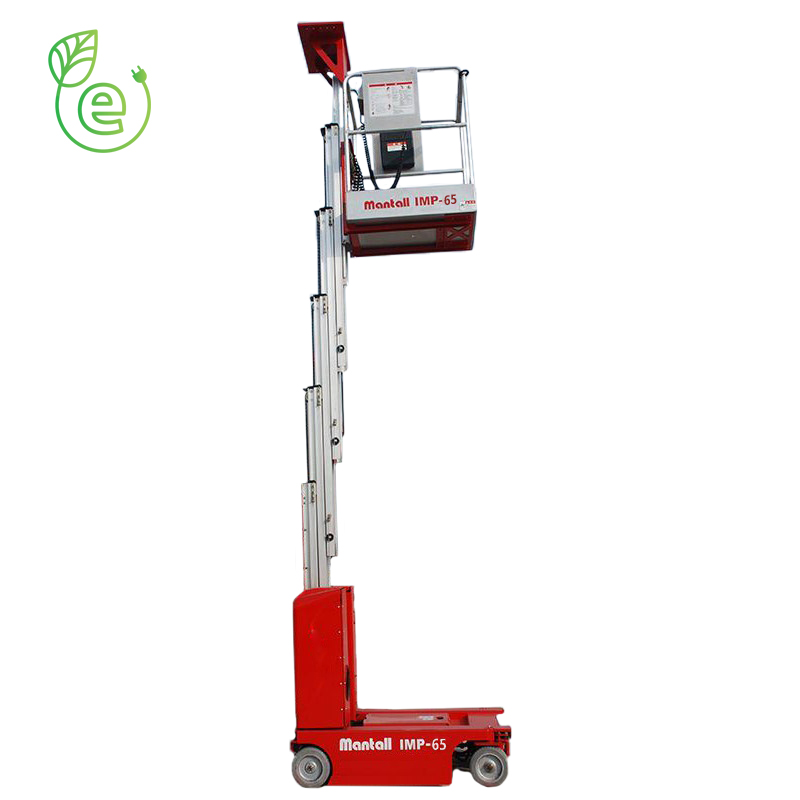

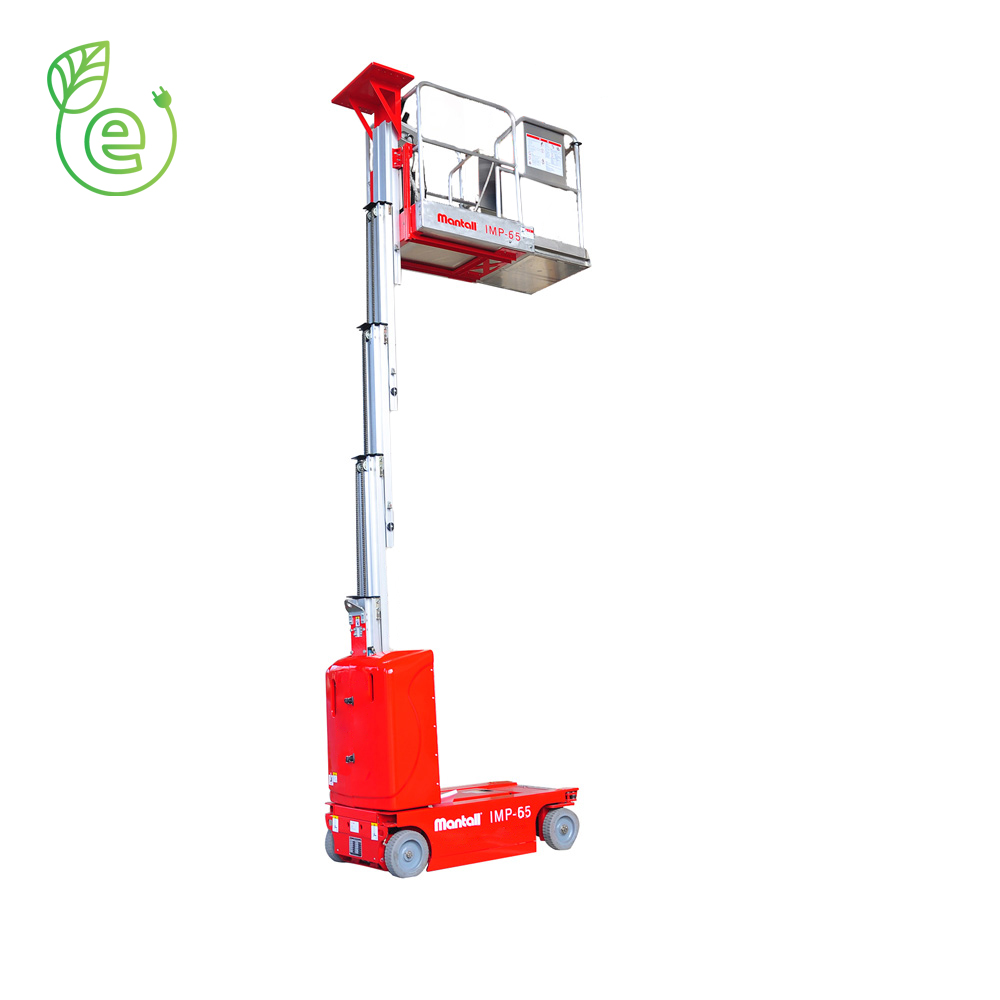

Mantall IMP65 is a compact and robust mast lift, with many features for maximum productivity and safety. The lift has a working height of 6.5m and a lifting capacity of 230kg. The platform can be extended by 0.6m.
The compact design makes it easy to use on small surfaces and it can be driven through doorways. Typical applications for the lift are warehouses, shops, sports halls, cultural buildings or general maintenance.
The lift also has a number of safety features for safe operation, as well as a joystick with proportional control for lifting and driving, making the lift very easy to use. The lift can be driven from full height.
Call for Price
Send RequestStandard Features
- Battery powered
- Proportional driving
- Push out on platform
- AC wiring to platform
- Non-marking wheels
- Automatic braking system
- Emergency lowering
- Emergency stop

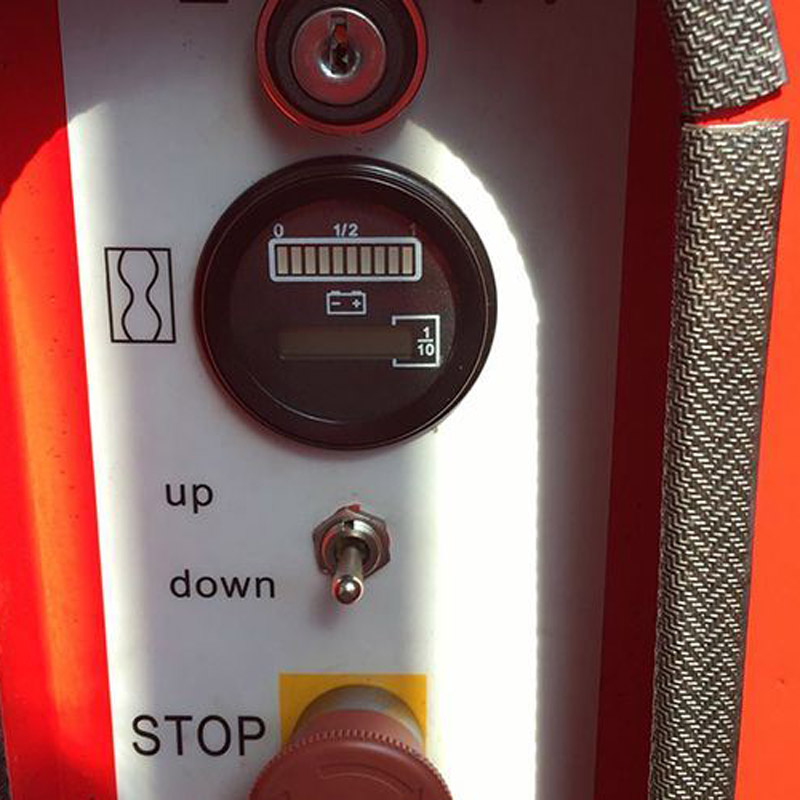

- Self-diagnosis system
- Hour meter

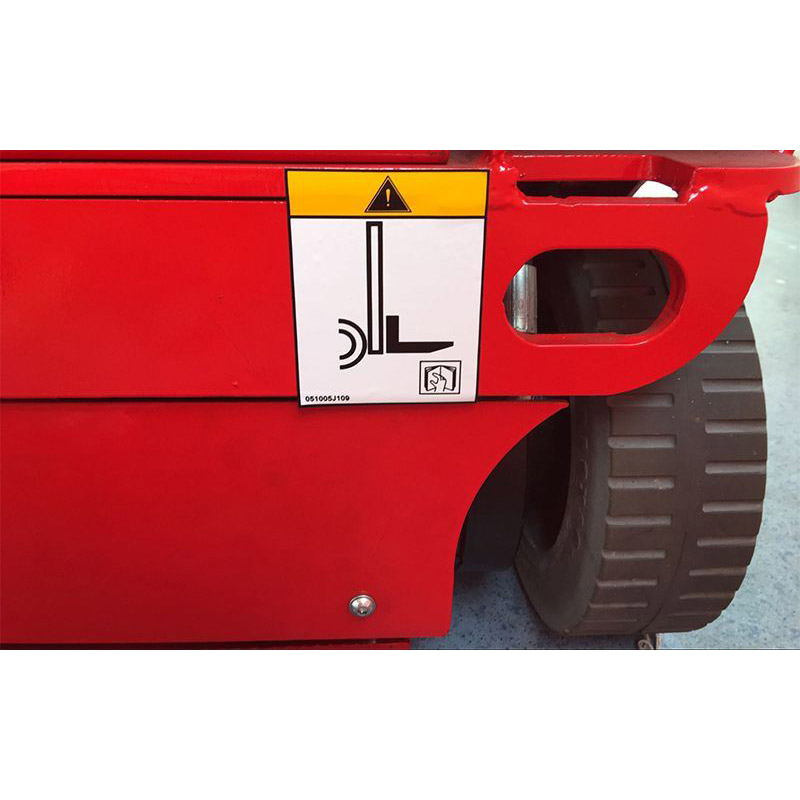

- Forklift pockets
- Warning light
- Integrated battery charger
- CE-marked
