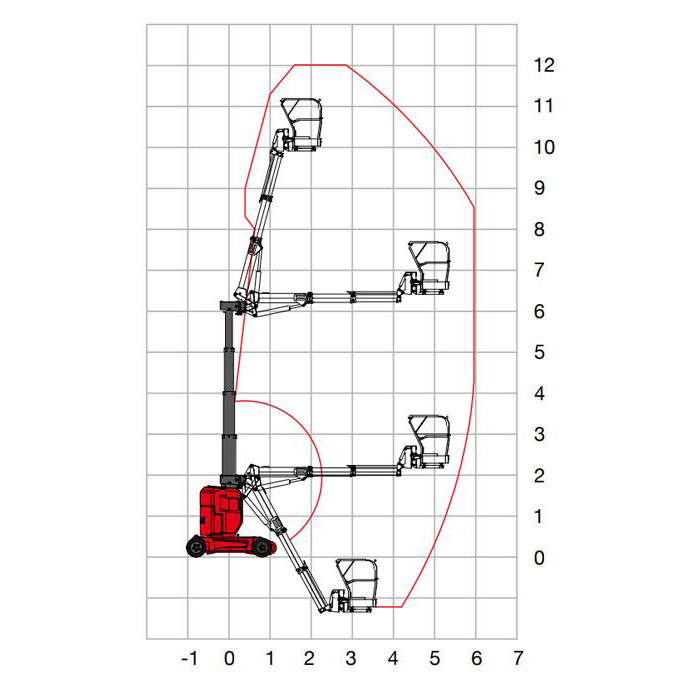

| Max. working height H1 | 12 m |
|---|---|
| Max. platform height H2 | 10 m |
| Lift capacity | 200 kg |
| Max. outreach | 6 m |
| Max. up and over height | 5.9 m |
| Platform size (L*W*H) | 1.1 * 0.8 * 1.1 m |

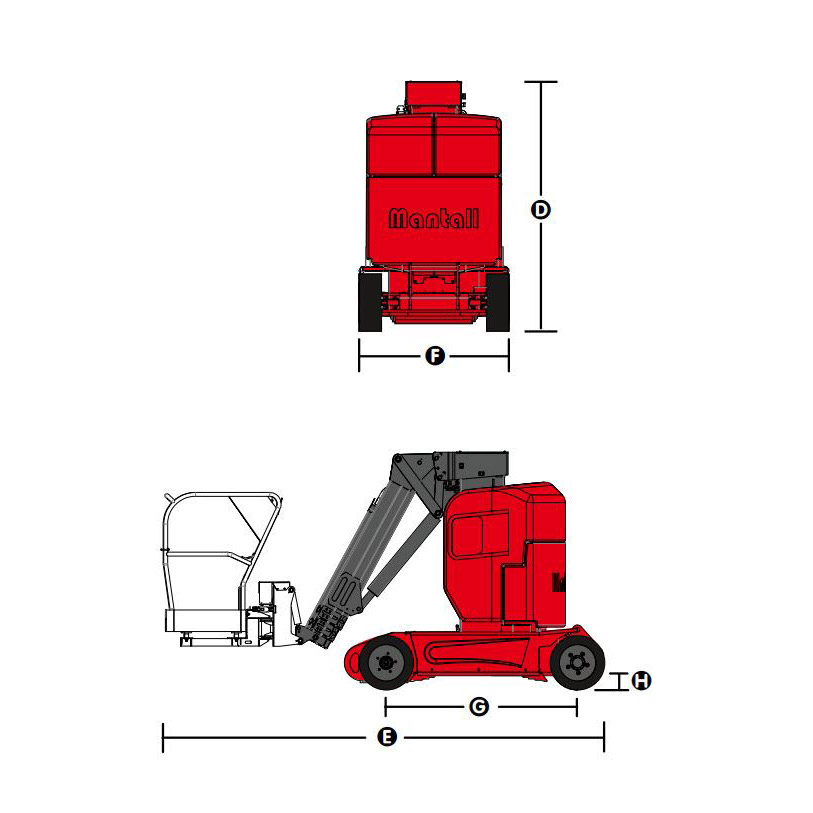

| Length and width E*F | 4.03 * 1.2m |
| Height | 1.99m |
| Wheelbase G | 1.6 m |
| Ground clearance H | 0.12 m |
| Ground clearance-deployed pothole | 0.074 m |
| Turning radius inside | 0.75 m |
| Turning radius outside | 2.6 m |
| Speed, platform down | 6 km/h |
| Rotation° | 345° |
| Jib swing° | -60°+75° |
| Platform swing° | left and right 45° |
| Gradeability | 25% |
| Max. tilt angle° | 2.5° |
| Tire | 457*178*308 |
| Weight | 4770 kg |
| Dimensions | 403 × 120 × 199 cm |
Mantall IMP120J -12m

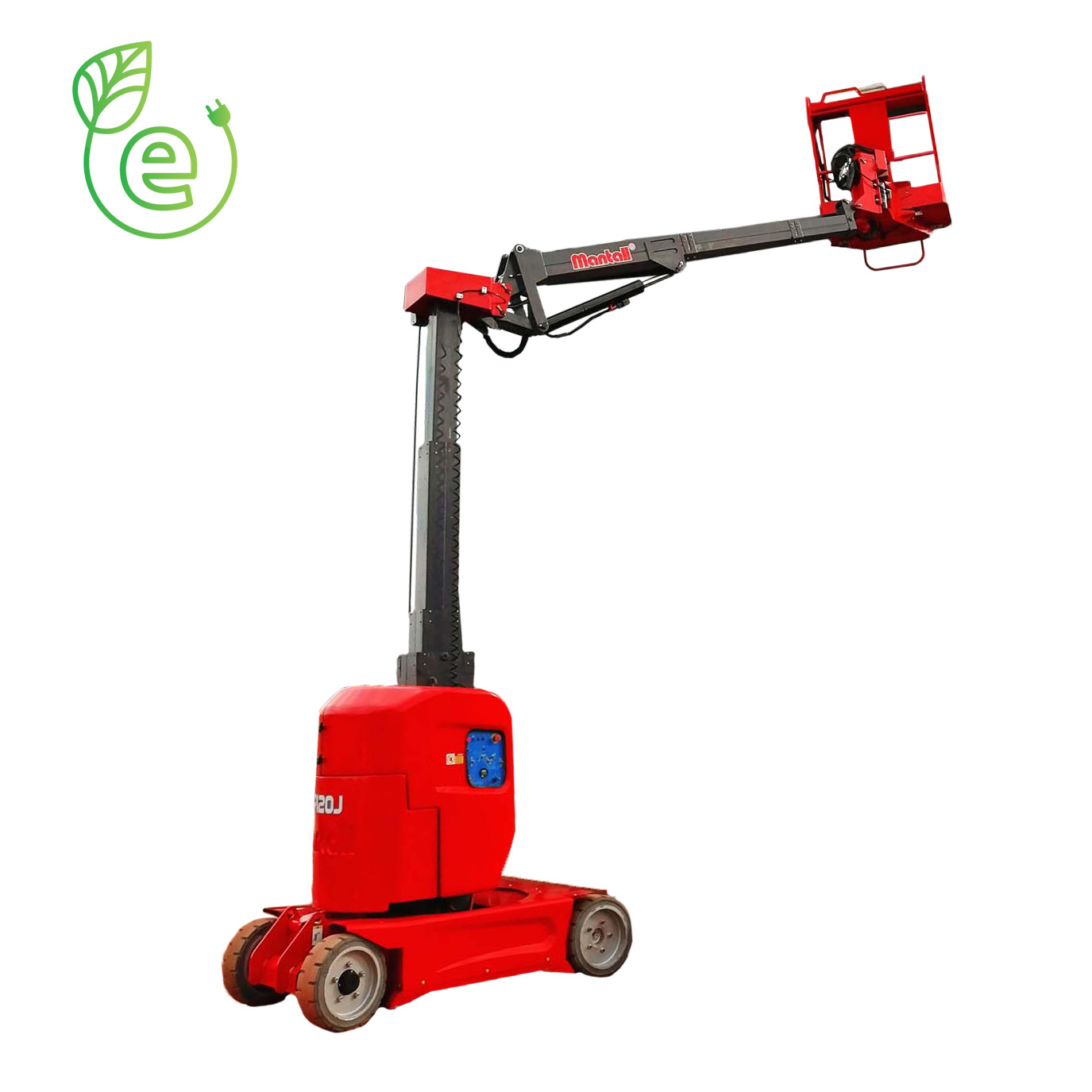

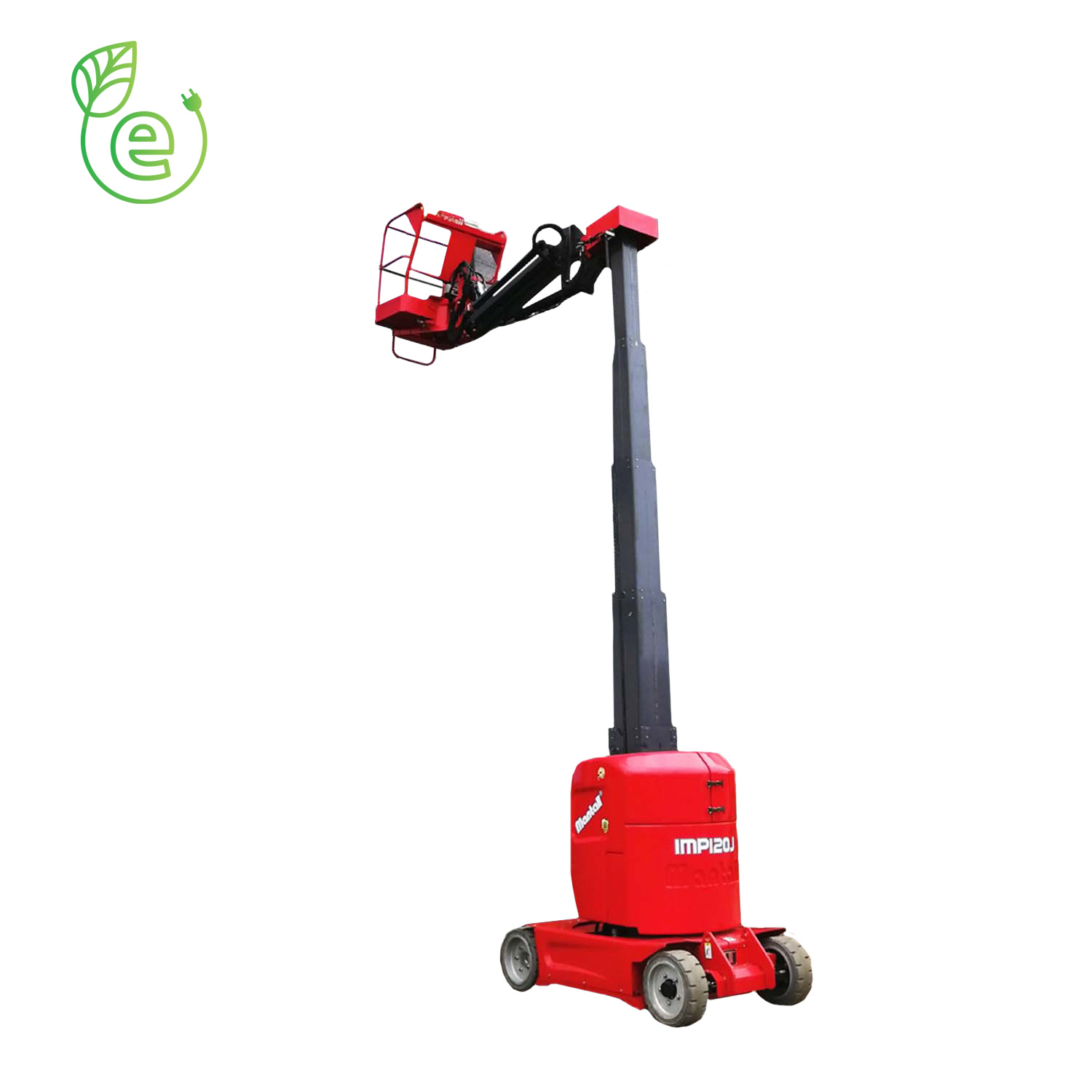

Mantall IMP120J is a battery-powered mast lift designed for tasks that require long reach on small floor areas. The lift has a maximum working height of 12m, a reach of 6m and a platform capacity of 200 kg.
The lift has a 345° turntable, combined with a 135° (-60°/+75°) vertical rotating jib and 90° rotating platform for exceptional reach and precise positioning.
The machine also has a number of safety features for safe operation, as well as joystick with proportional control for lifting and traveling, making the lift very easy to use. The lift can be driven from full height.
Call for Price
Send RequestStandard Features
- Battery powered
- Proportional drive
- 345 degrees rotation<
- Jib swing:-60 degrees/+75 degrees
- Platform rotation of 90 degrees
- AC wiring to platform
- Non-marking wheels
- Automatic brake system
- Emergency lowering
- Emergency stop
- Self-diagnostic system
- Hour meter
- Forklift pockets
- Warning light
- Integrated battery charger
- CE-marked
