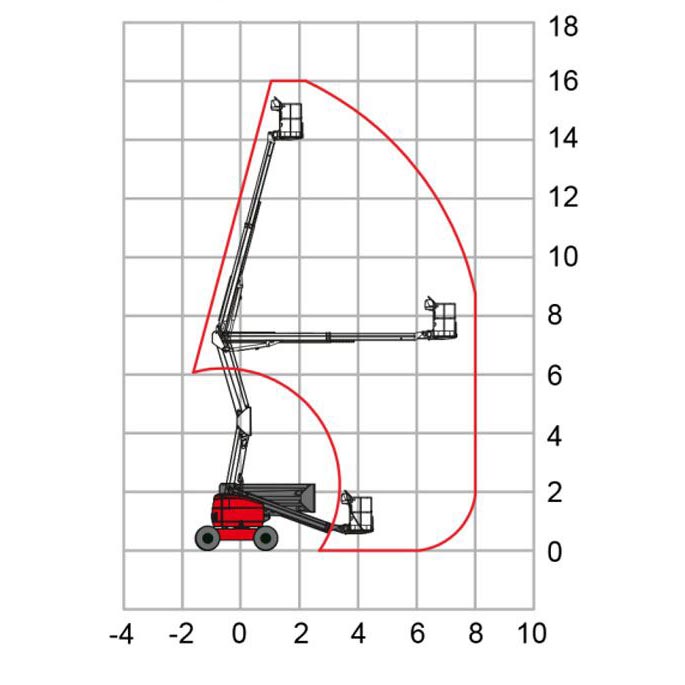

| Working height max H1 | 16m |
|---|---|
| Platform height max H2 | 14m |

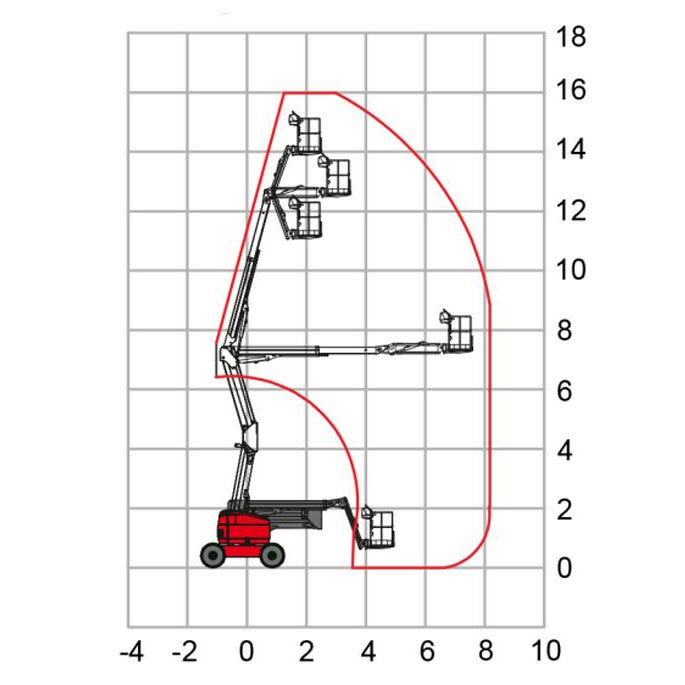

| Max range | 8.19m/8.4m |
| Max. up and over clearance | 7.09m/7.71m |
| Lifting capacity | 230kg |

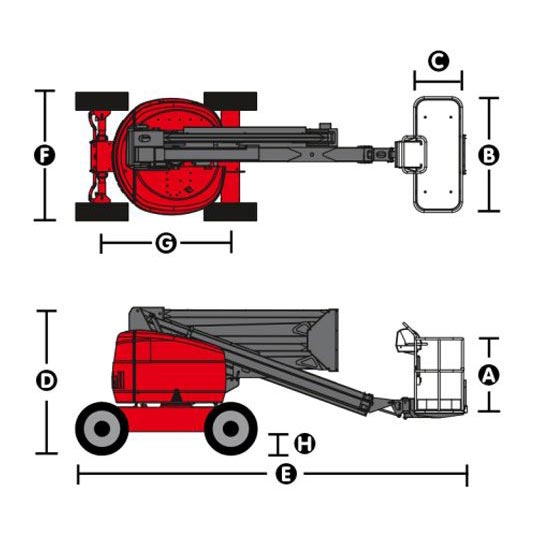

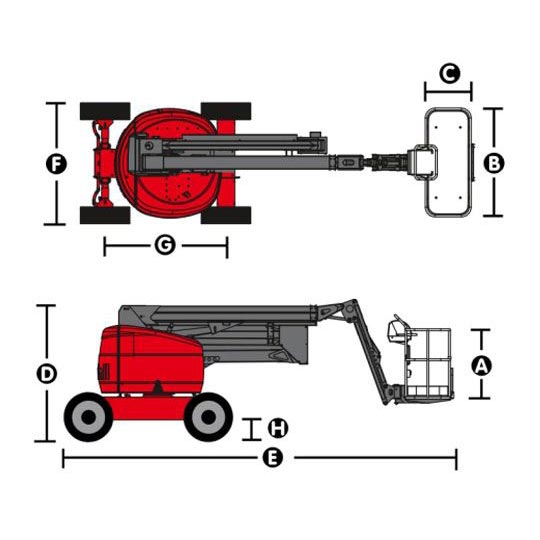

| Platform dimension B*C*A | 1.8×0.76×1.17m |
| Height D | 2.30m |
| Length E | 6.14m/6.87m |
| Width F | 2.00m |
| Wheelbase G | 2.00m |
| Ground clearance H | 0.36m |
| Rotation | 360° discontinuously |
| Rear swing | |
| Platform rotation | 0/180° |

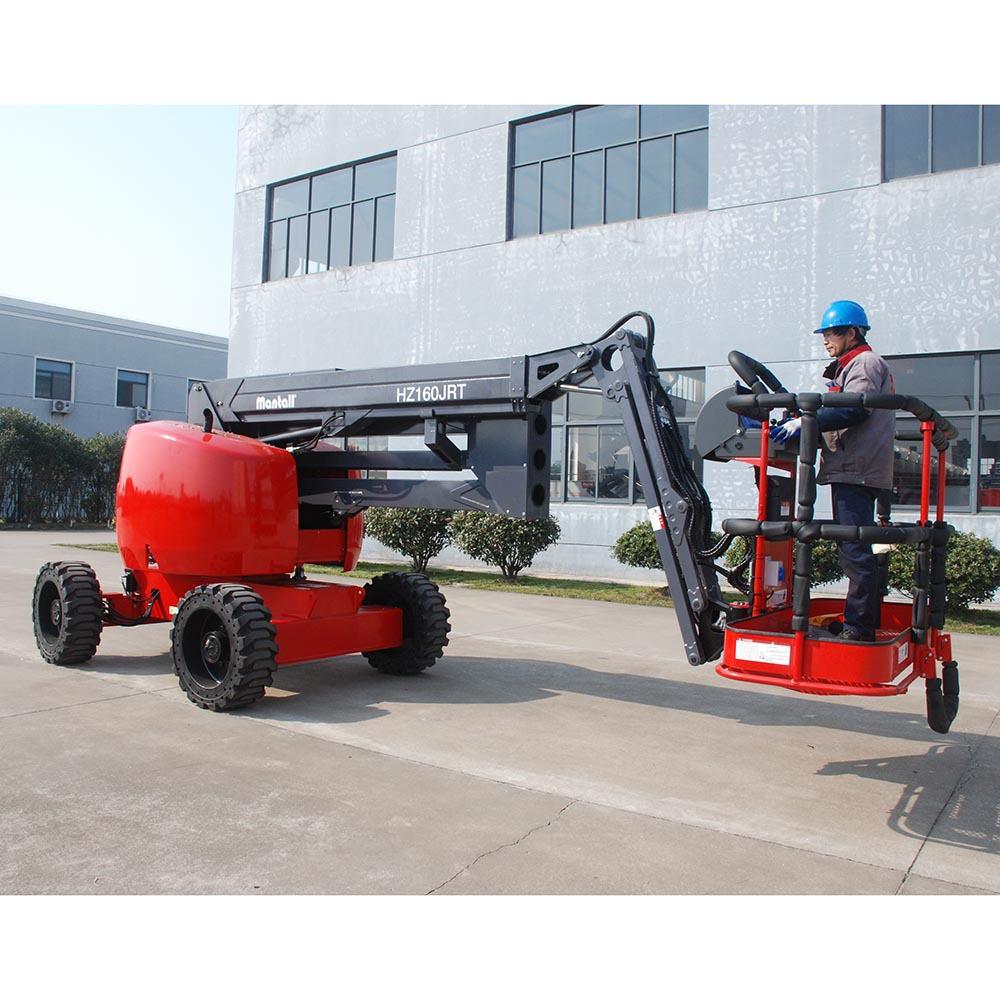

| Jib swing | 0/140°(HZ160JRT only) |
| Platform level | Hydraulic level |
| Speed, platform down | 4.9km/h (7.0km/h 4wd) |
| Speed, platform up | 1.0km/h |
| Gradeability | 30%（45%4WD） |
| Drift | 2/4WD |
| Steering wheel | 2 |
| Controller | Electrical proportional control |
| Turning radius outside | 4.0m |
| Turning radius inside | 1.7m |
| Lateral force N max | 400N |
| Tilt angle max | 3° |
| Wind speed allowed max | 12.5m/s |
| Tire | 33*12-20 |

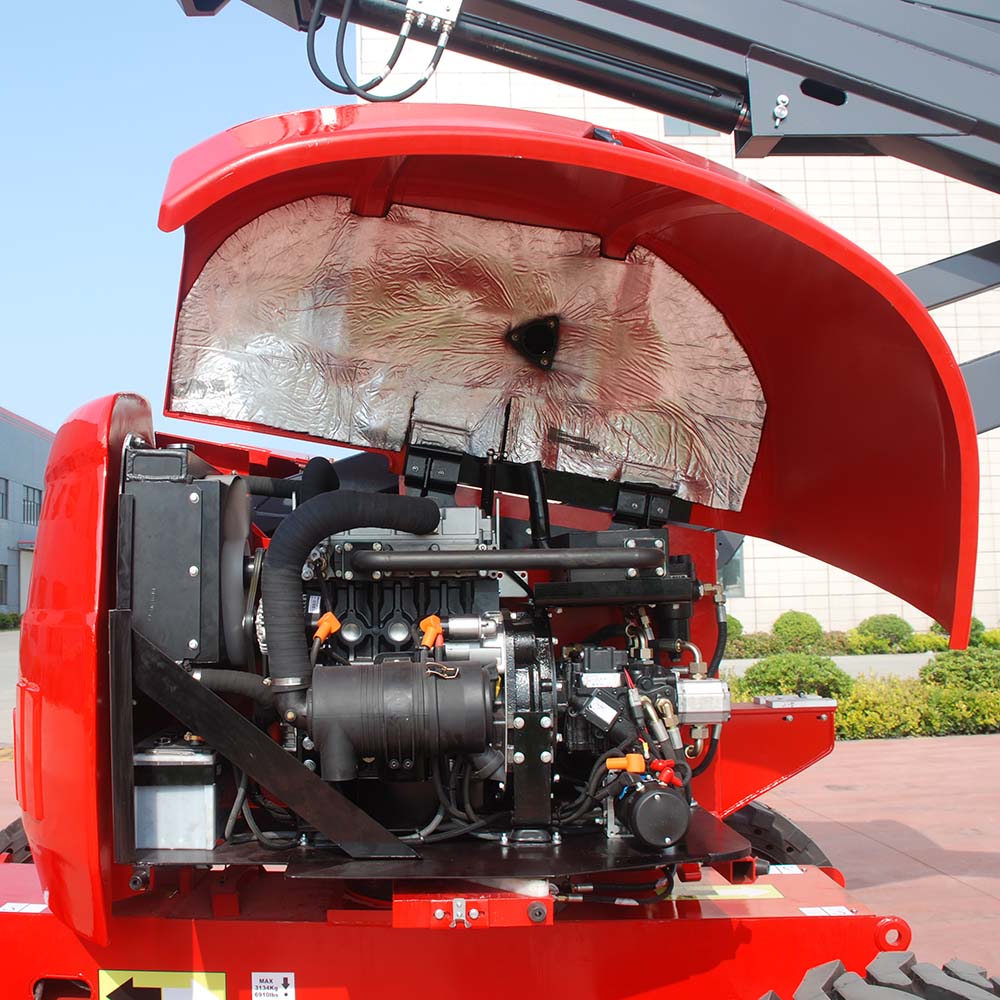

| Power source | Perkins 404D Diesel Engine |
| Total weight | 6.350 kg /6.800 kg |

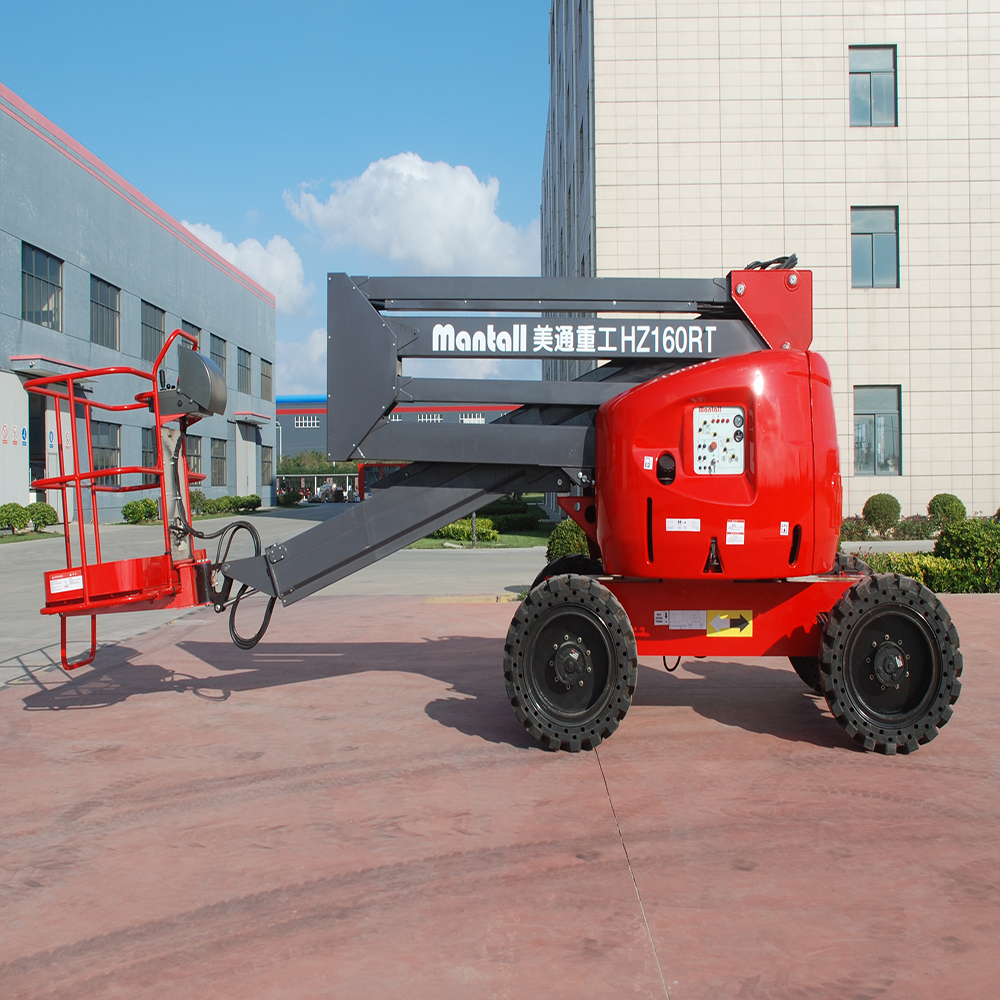

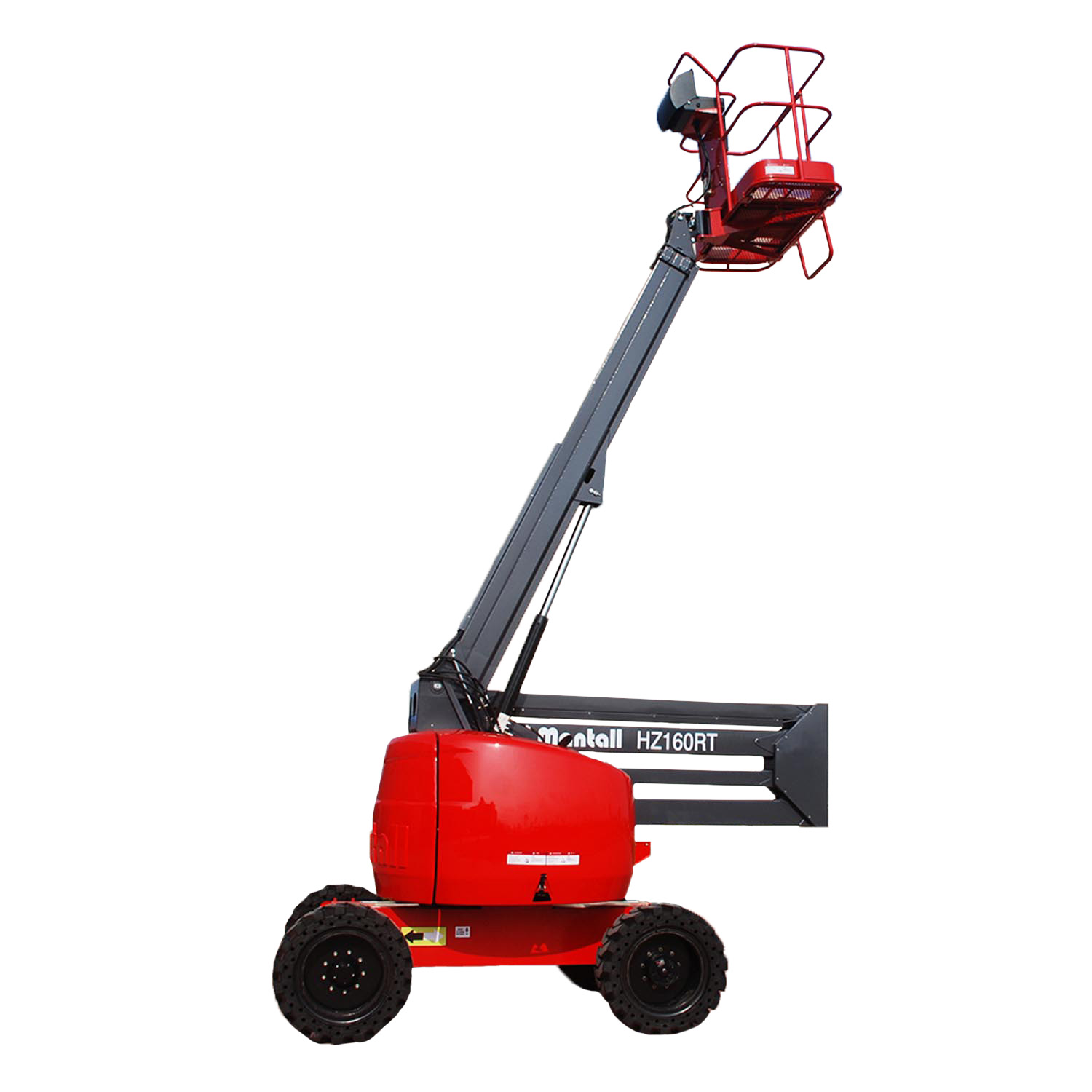

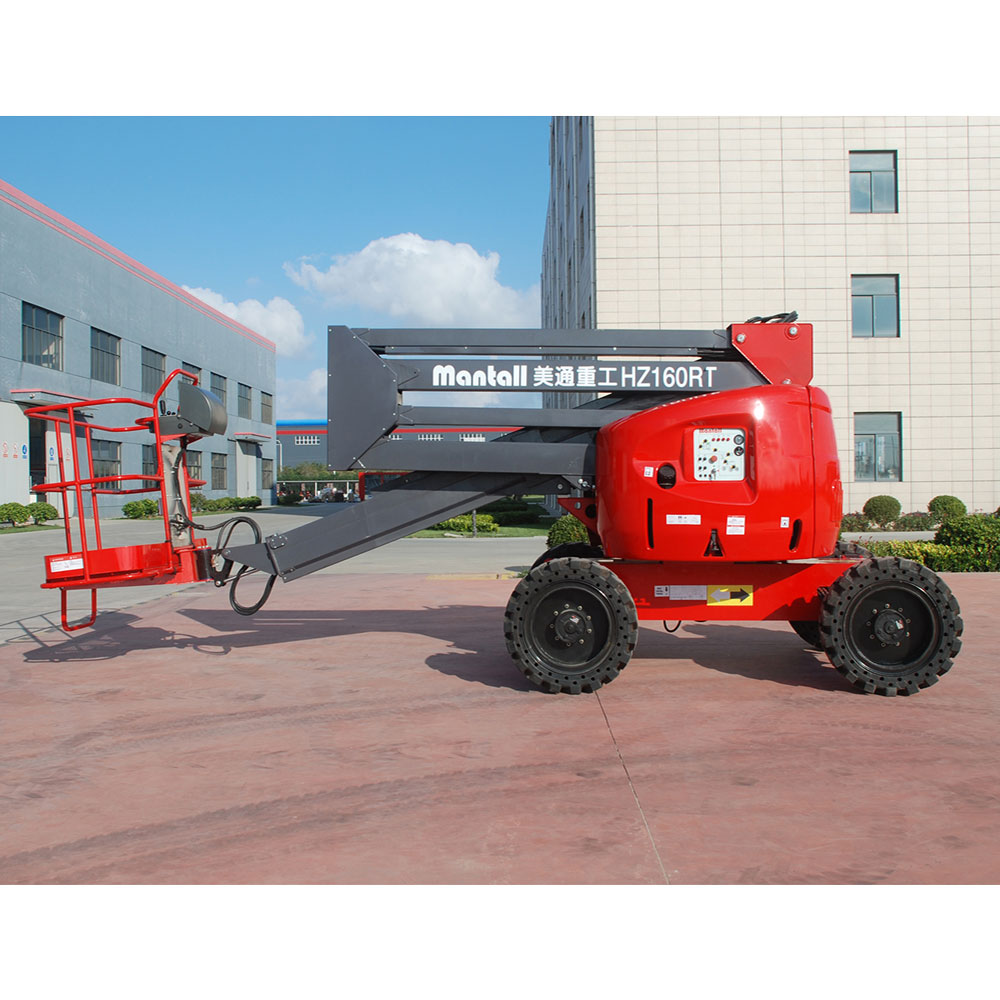

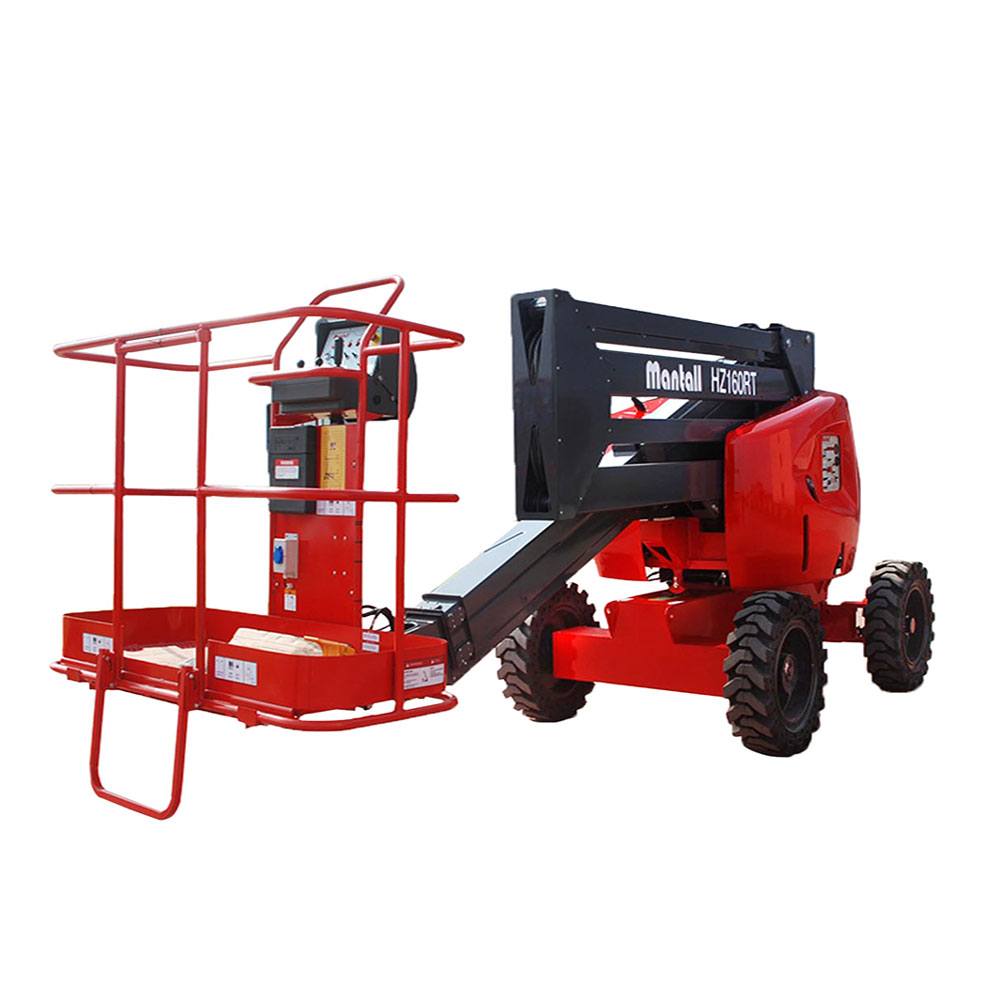

Mantall HZ160RT/HZ160JRT -16m

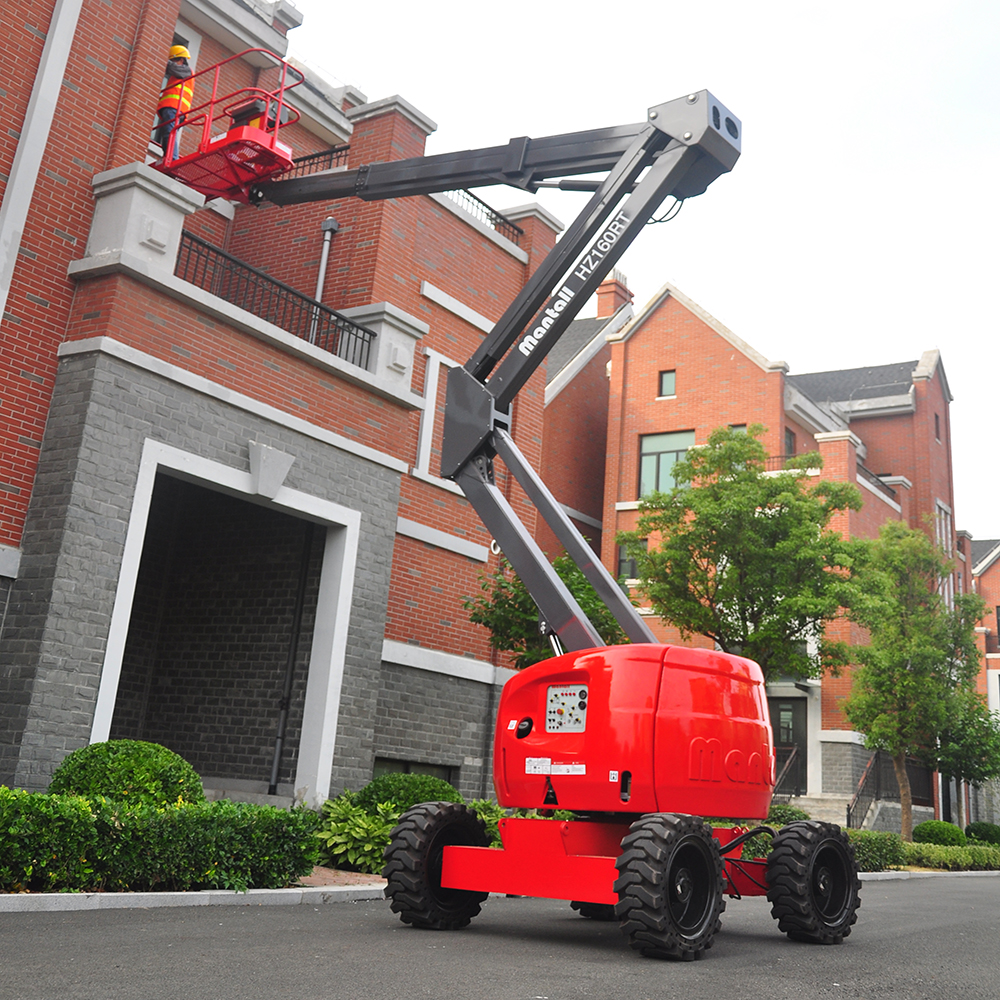

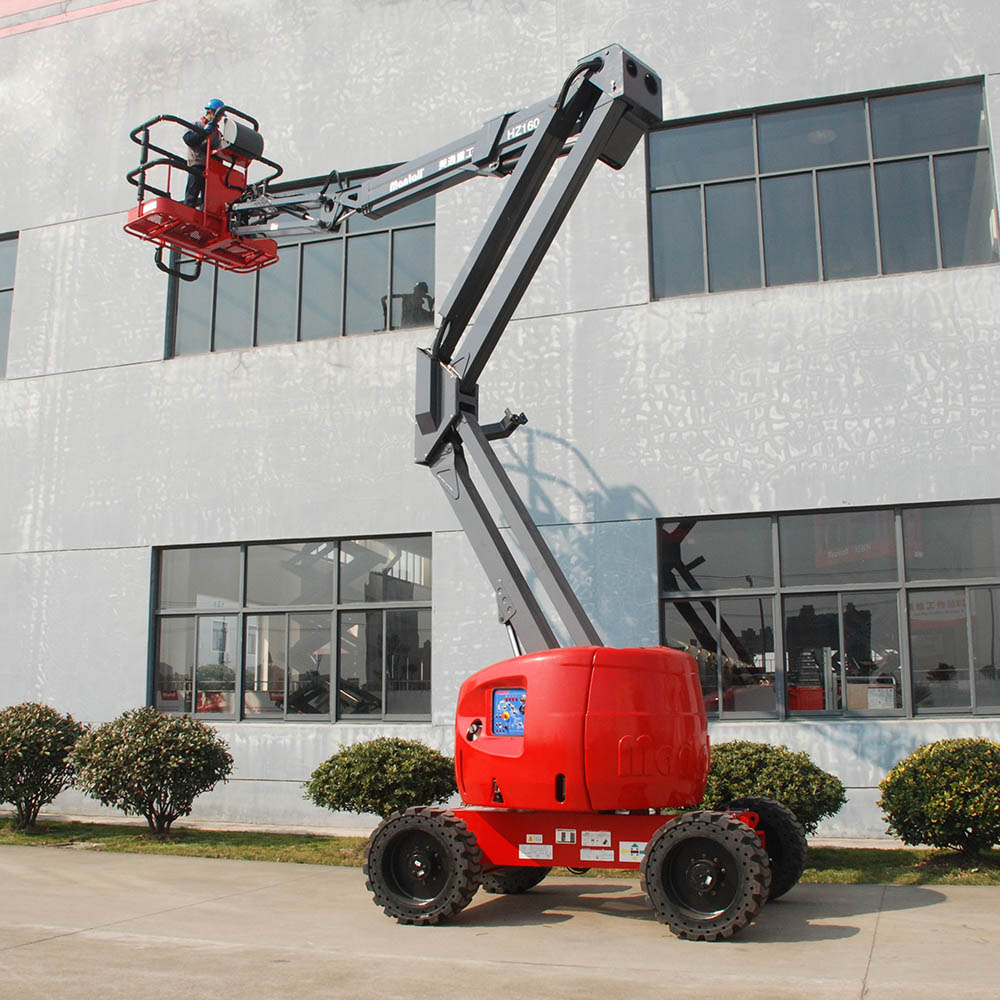

Our HZ160RT/HZ160JRT self-propelled articulated boom lifts are designed to support working heights up to 16 meters, they are suited for multi-directional precise positioning and lifting operations and enable workers to reach work areas that are difficult to access while avoiding obstructions.
The self-propelled articulated boom lift makes it easier for workers to accomplish their tasks because of its 360-degree rotating turntable and working platform that can move up, down, left and right. It is also perfect for indoor applications and can protect flooring thanks to its ultra-quiet non-marking tires.
Our HZ160RT/HZ160JRT self-propelled articulated boom lifts have a fully proportional Hall effect joystick and CAN intelligent control system, making maintenance and upgrading simpler while performing multiple actions simultaneously.
Call for Price
Send RequestStandard Features
- Self-leveling platform
- Hydraulic rotation platform
- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
Optional
- 2.4m platform
- Platform swing gate
- Platform alternate leverage
- Airline to platform
- Hydraulic oil cooler
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
