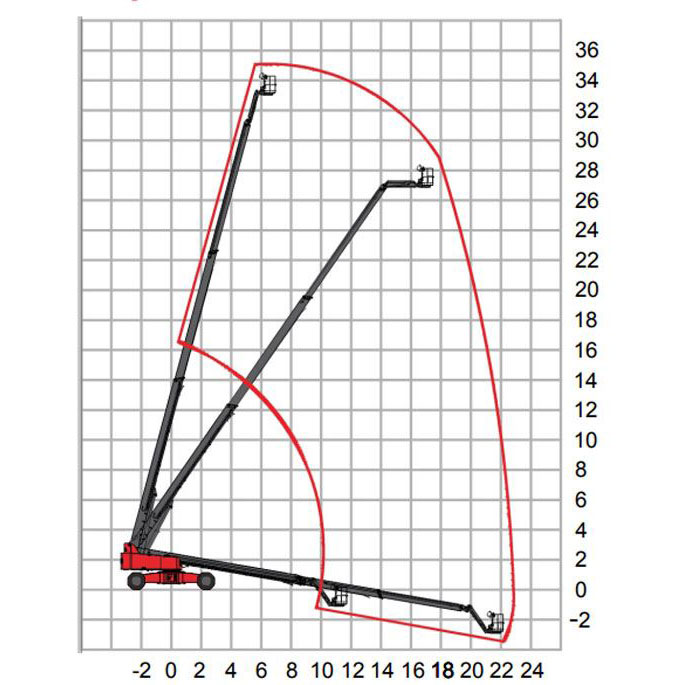

| Working height max H1 | 35m |
|---|---|
| Platform height max H2 | 33m |
| Max range | 23m |
| Lifting capacity | 340kg |

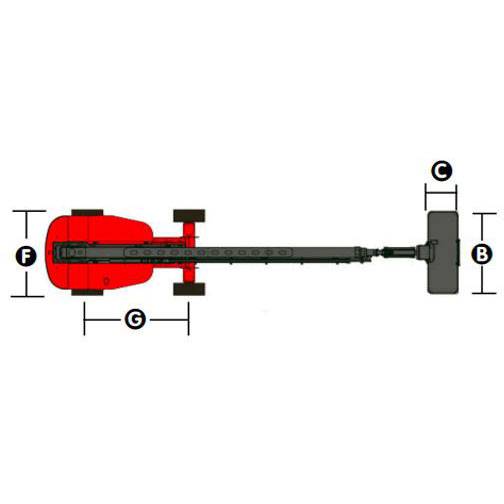

| Platform dimension B*C*A | 2.44*0.91*1.1m |

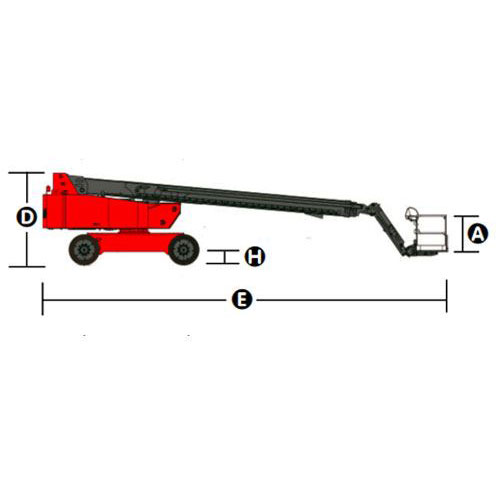

| Height D | 3.11m |
| Length E | 15.311m/13.1m |
| Width F | 2.49/3.95m |
| Wheelbase G | 4.846/4.633m |
| Ground clearance H | 0.33m |
| Rotation° | 360° |
| Rear swing | 1.4m |
| Platform rotation | 180° |
| Jib swing | 135° |
| Speed, platform down | 4.2km/h |
| Speed, platform up | 1.1km/h |
| Max gradeability (4WD) | 40% |
| Turning radius inside | 4.08m |
| Turning radius outside | 6.89m |
| Drive wheel | 4 |
| Steering wheel | 4 |
| Controller | Electro hydraulic proportional control |
| Voltage | DC 12V |
| Tire | 445/65-24 |
| Max. tilt angle° | 3° |
| Power source | Cummins engine QSF2.8T-C72 54kw |
| Weight | 22100 kg |
| Dimensions | 1531 × 395 × 311 cm |

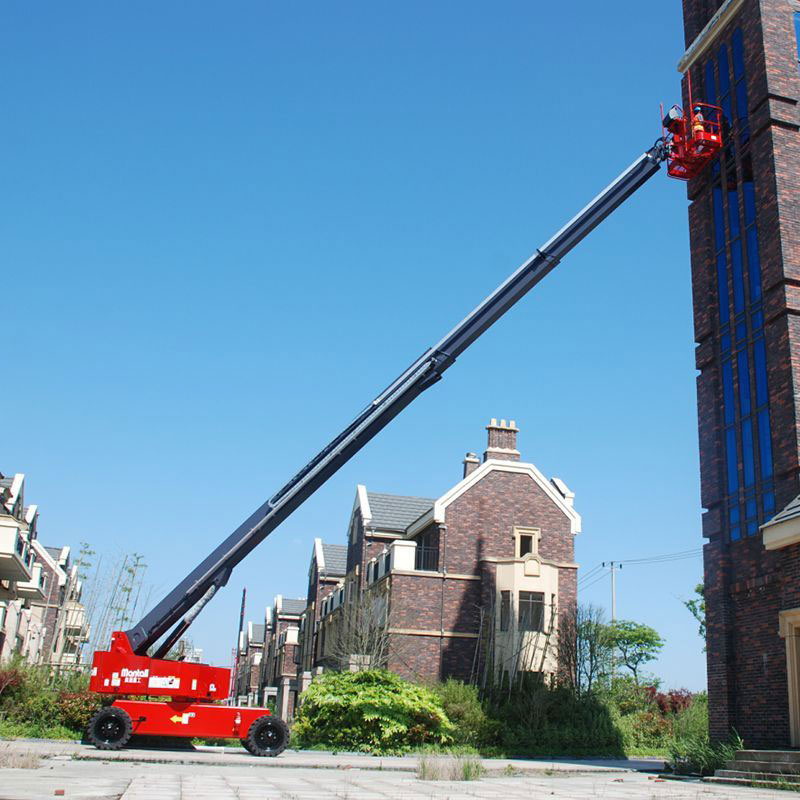

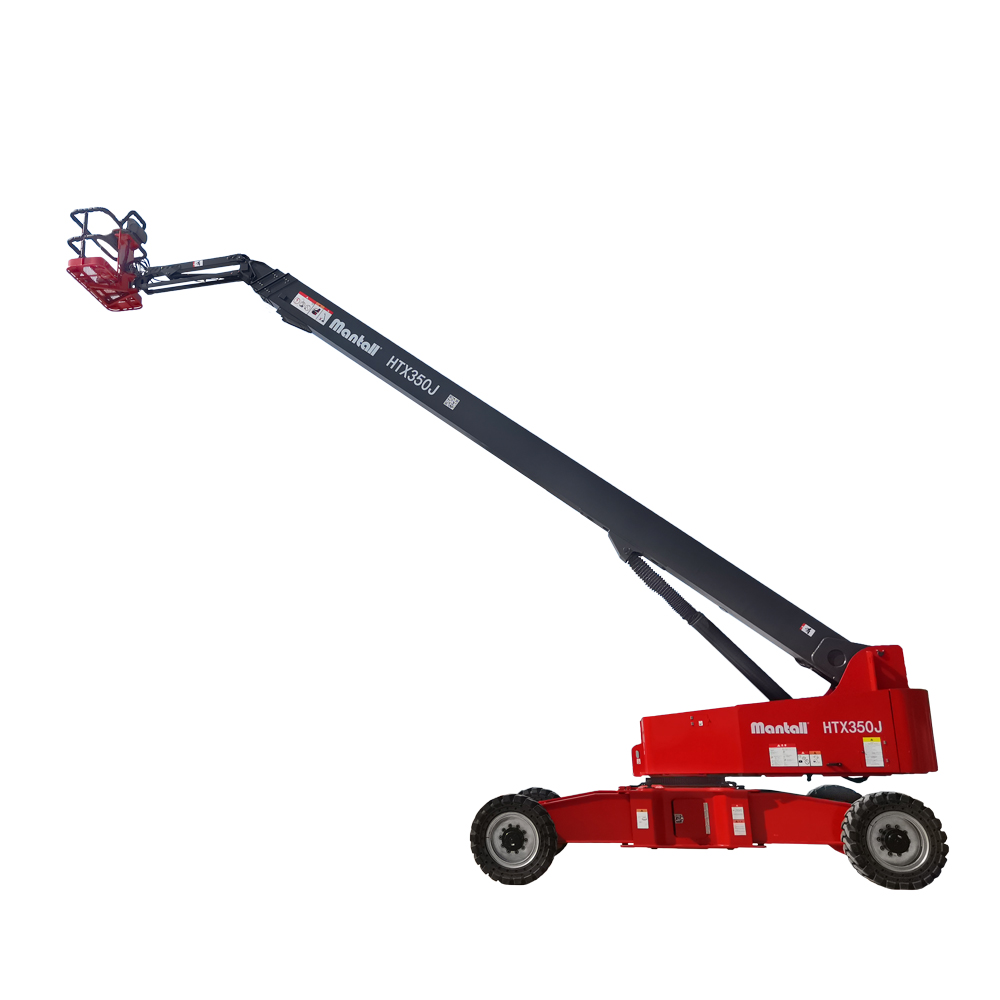

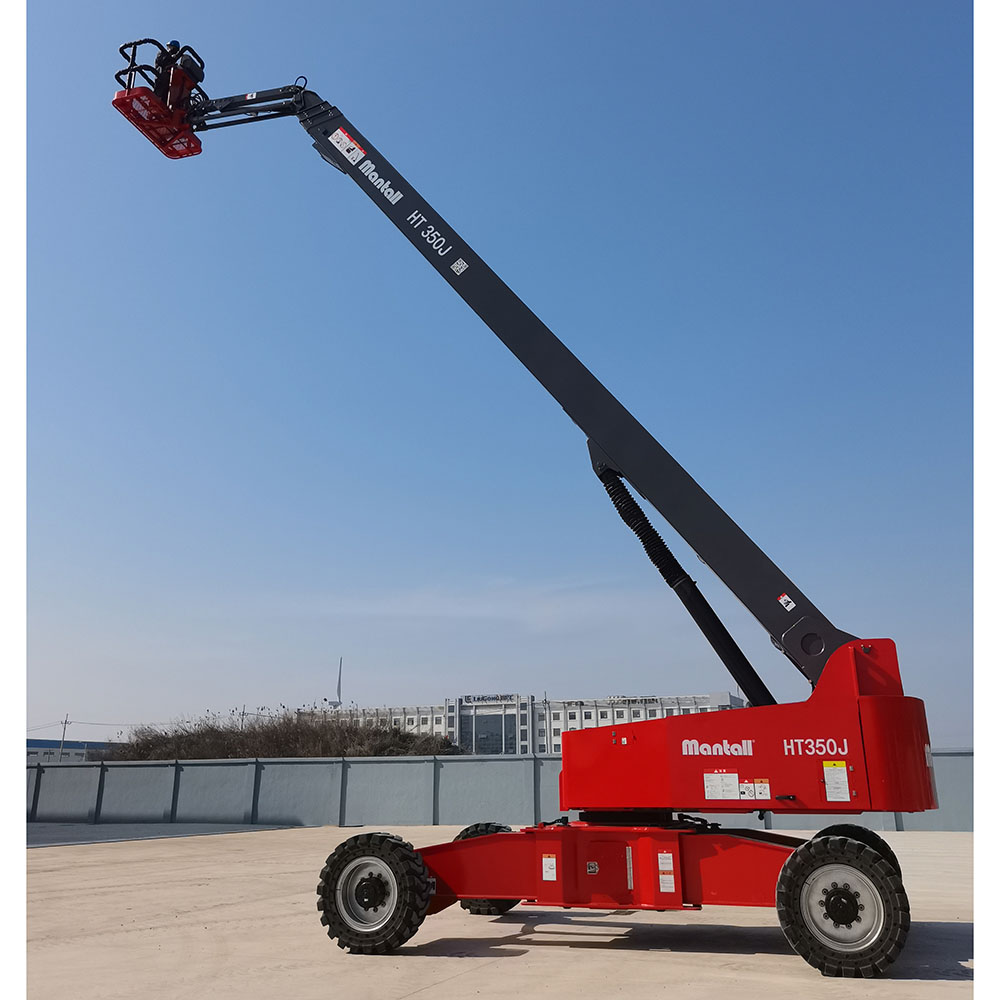

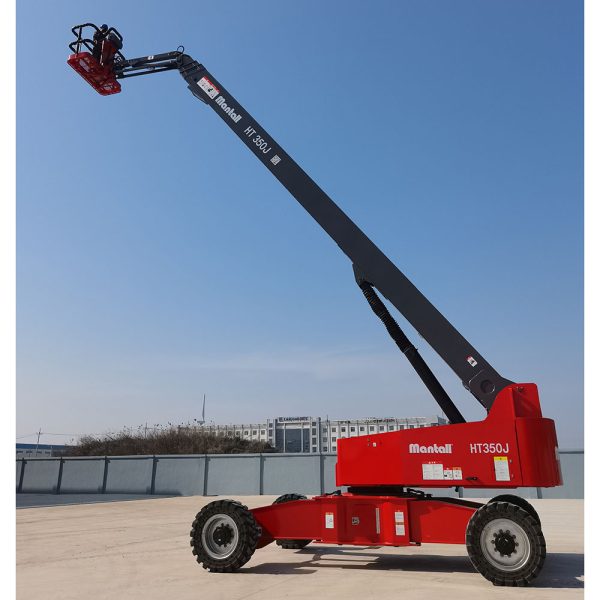

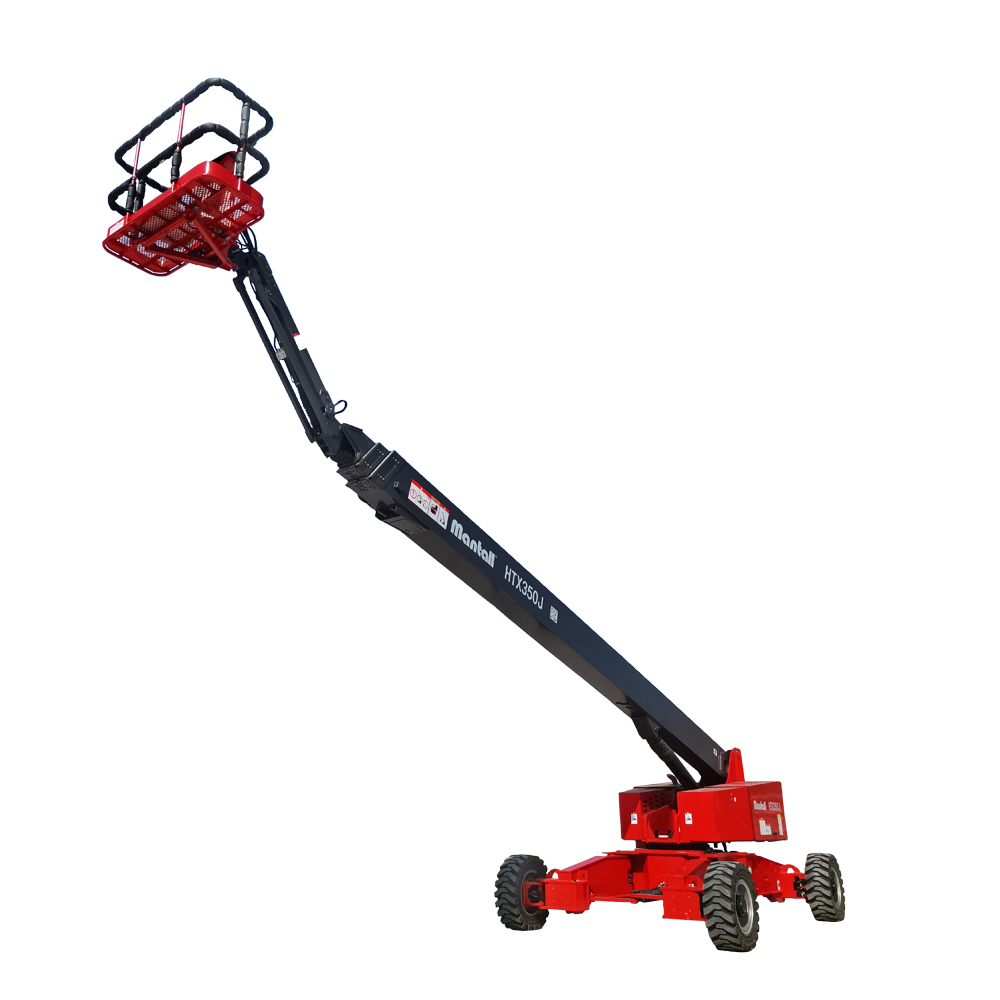

Mantall HT350J – 35m
Mantall® HT350J telescopic boom lift has a working height of up to 35m with a jib, a maximum lifting capacity of 340kg, and is equipped with a large platform that can accommodate up to three workers and tools.
360-degree turntable rotation provides excellent flexibility for difficult work site applications. HT350J telescopic boom lift has a change mode of travel speed, which can adapt to various rough terrains.
Call for Price
Send RequestStandard Features
- Self-leveling platform
- Hydraulic rotation platform
- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- 360° Turntable rotation
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
Optional
- Platform swing gate
- Platform alternate leverage
- Welder connecting packages
- Welder wire connecting to the platform
- Airline to platform
- Hydraulic oil cooler
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
- Traction packages
- AC power source
- Oscillating axle
