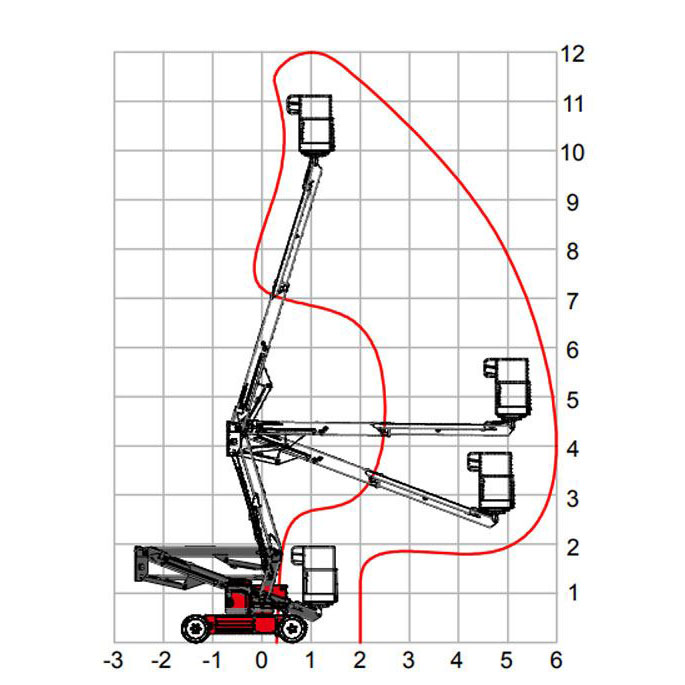

| Max. working heigh H1 | 12m |
|---|---|
| Max. platform height H2 | 10m |
| Max. outreach | 6m |
| Max. up and over clearance | 4.2m |
| Lifting capacity | 200kg |

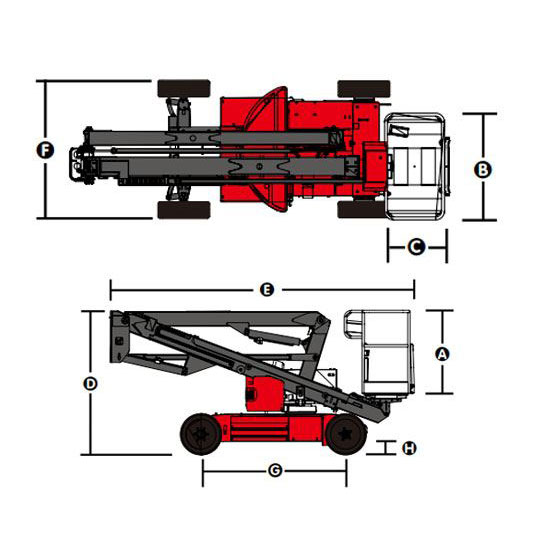

| Platform size B*C*A | 1.16m×0.65m×1.1m |
| Height D | 1.96m |
| Length E | 4.2m |
| Width F | 1.5m |
| Wheelbase G | 1.96m |
| Ground clearance H | 0.18m |
| Rotation | 360° discontinuously |
| Rear swing | |
| Platform rotation | – |
| Jib Swing | – |
| Platform level | Hydraulic leveling |
| Speed, platform down | 4.0km/h |
| Speed, platform up | 1.0km/h |
| Gradeability | 25% |
| Tilt angle max | 3° |
| Lateral force N max | 400N |
| Wind speed allowed max | 12.5m/s |
| Turning radius inside | 1.9m |
| Turning radius outside | 4.2m |
| Drive wheel | 2 |
| Steering wheel | 2 |
| Controller | Electrical hydraulic proportional control |
| Voltage | DC24V |
| Wheels | 22*7*16 |
| Power source | DC48V/225Ah |
| Weight | 4000 kg |
| Dimensions | 420 × 150 × 196 cm |

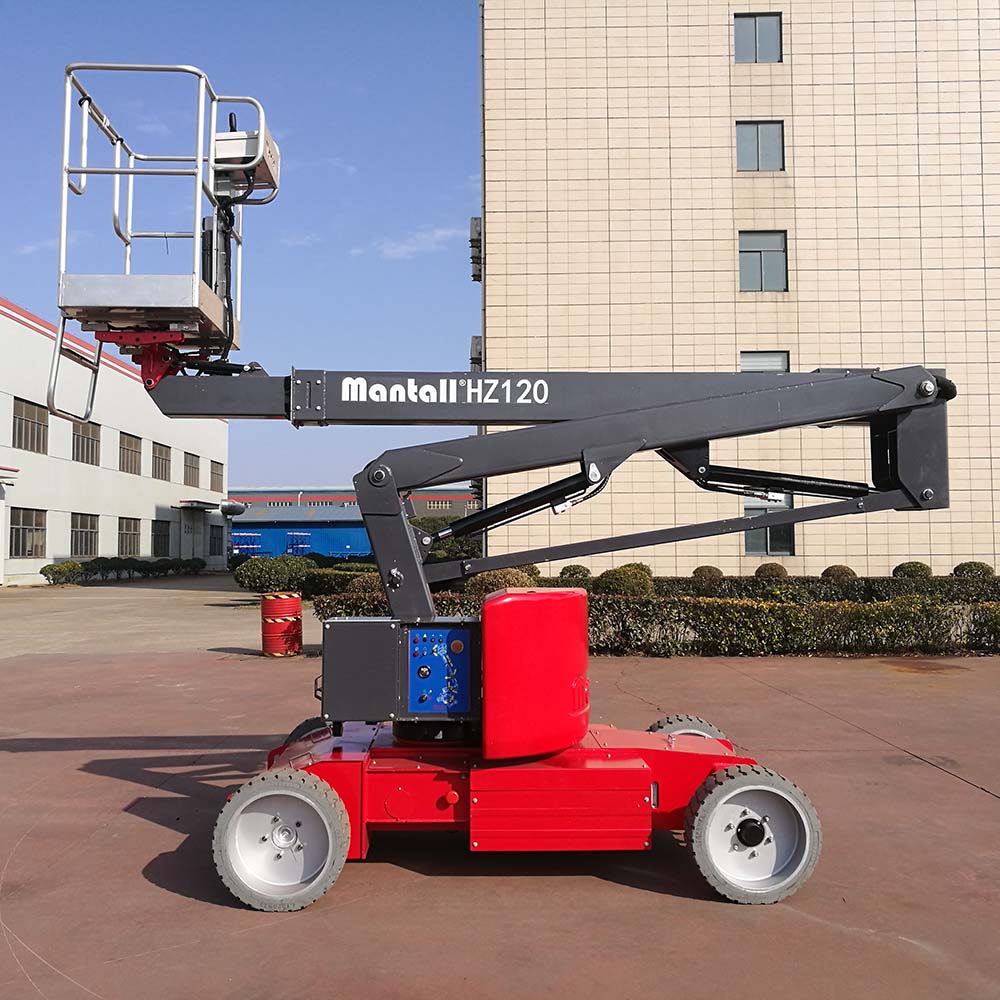

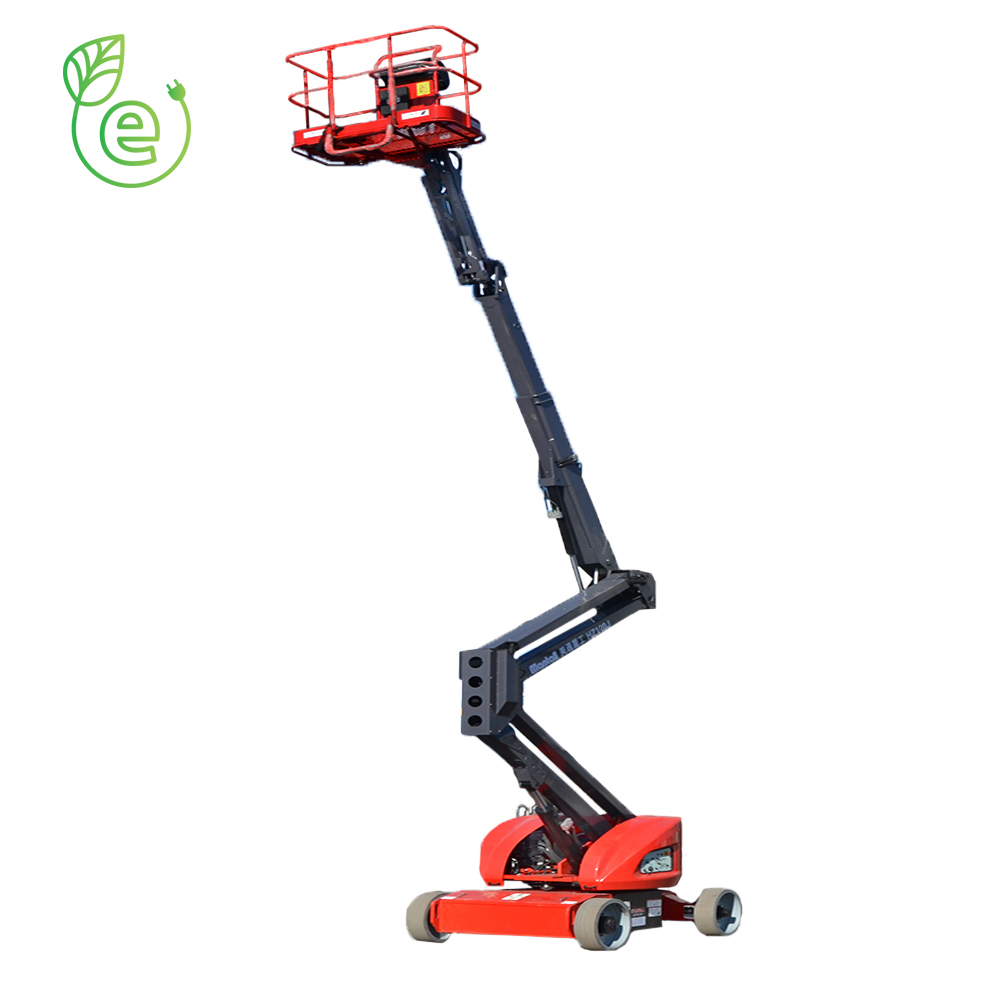

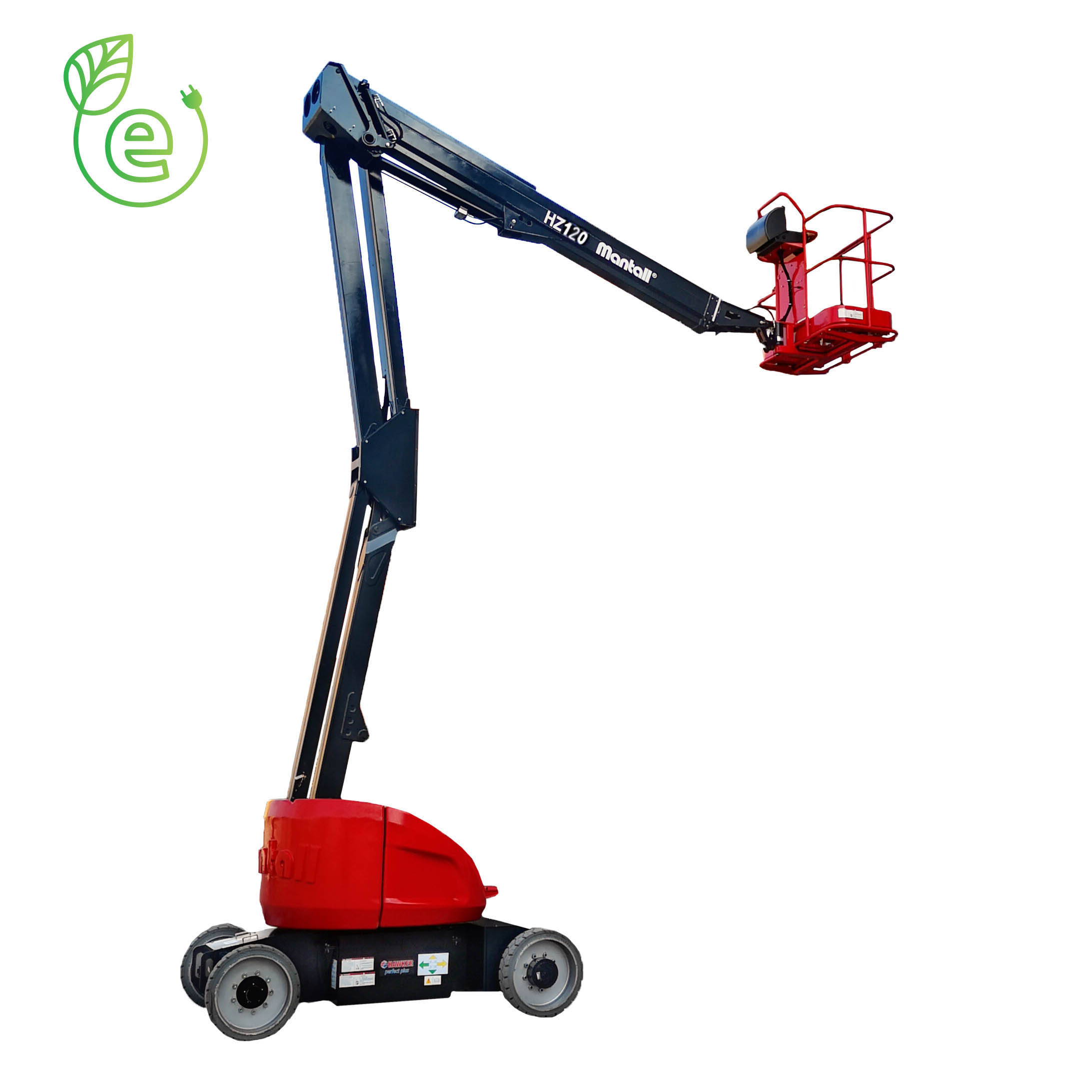

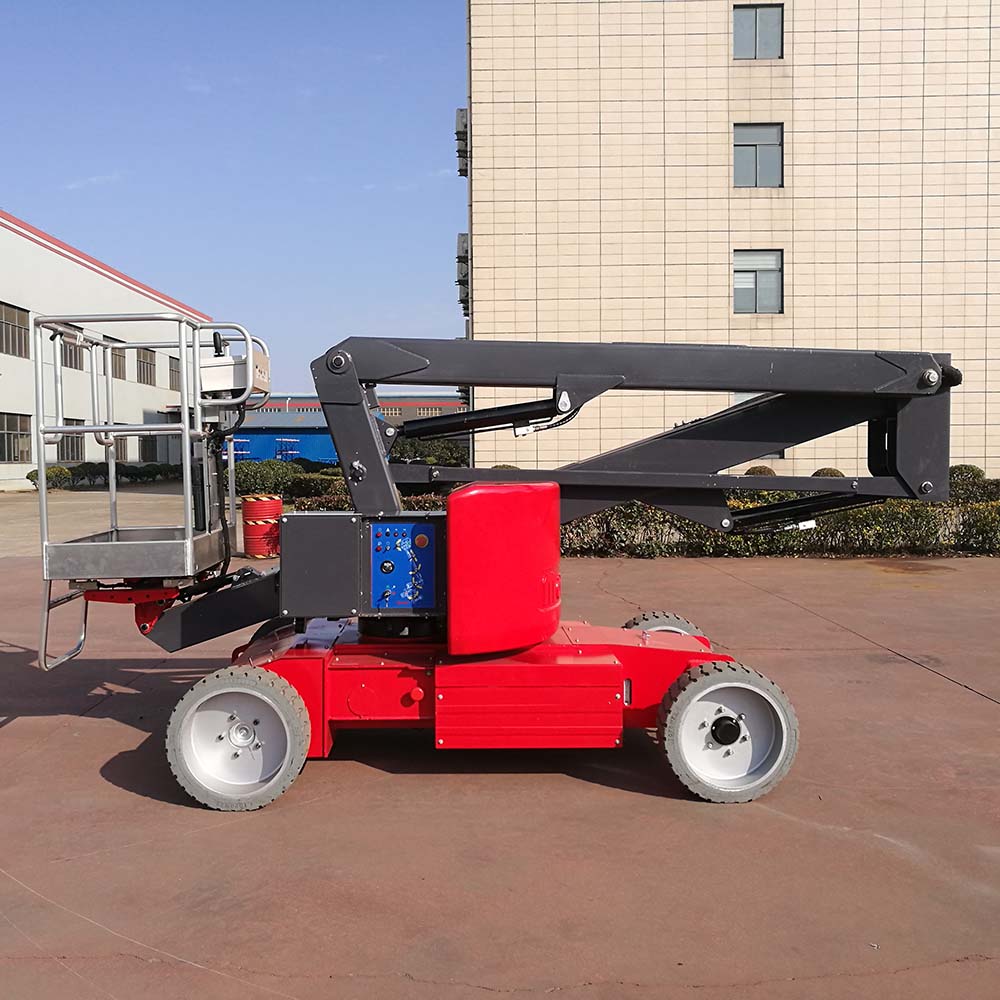

Mantall HZ120 electric – 12m
Mantall HZ120 articulated boom lift can reach a working height of 12m. Equipped with 360-degree rotating turntable, electro-hydraulic proportional control, and CAN intelligent control system, it is easier to maintain and upgrade.
HZ120 also allows the operator to perform multiple movements simultaneously, enabling multi-directional precise positioning and lifting operations, enabling workers to access hard-to-reach places and avoid obstacles. HZ120 articulated boom lift are zero emission and suitable for indoor applications.
Call for Price
Send RequestStandard Features
- Self-leveling platform
- Hydraulic rotation platform

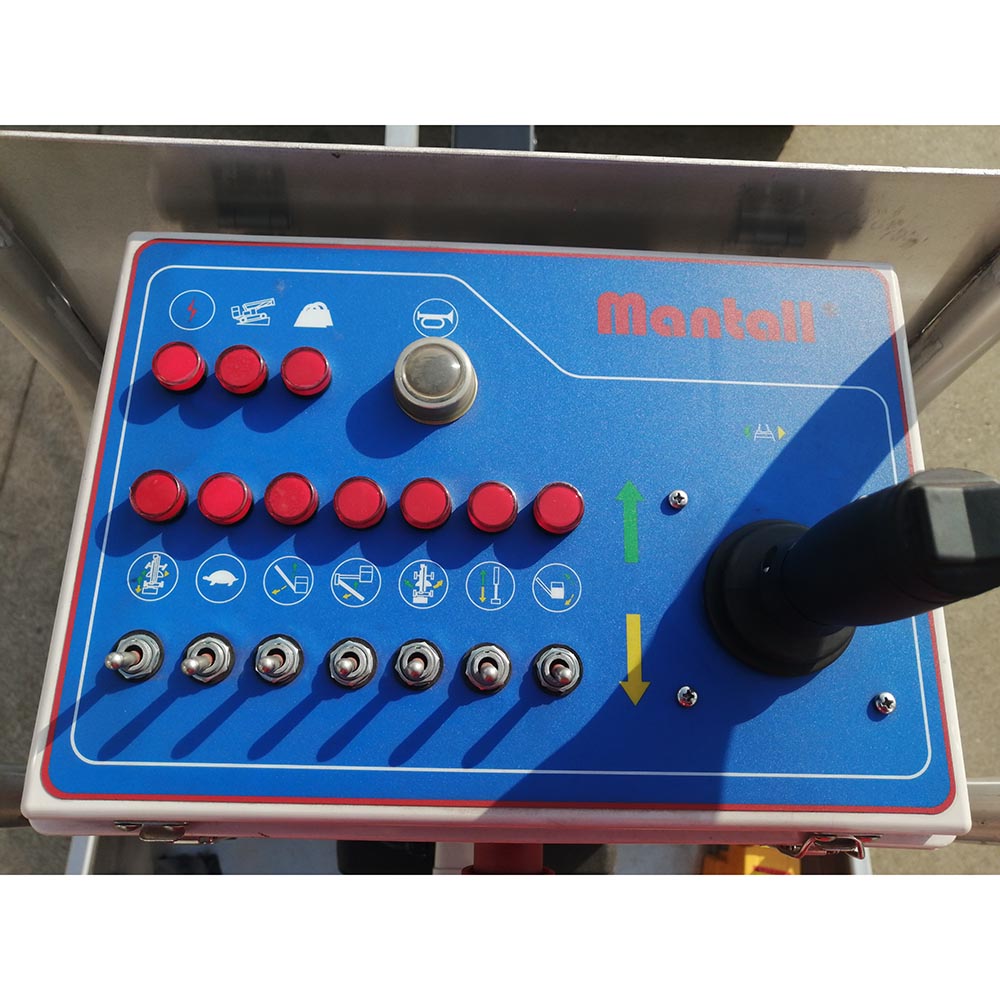

- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
Optional
- Platform swing gate
- Platform alternate leverage
- Airline to platform
- Hydraulic oil cooler
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
