| Working height max | 5,9m |
|---|---|
| Platform height max | 3,9m |
| Lifting capacity | 240kg |
| Lifting capacity on extension | 105kg |
| Maximum number of people in the lift | 2 |
| Platform dimension (LxW) | 1,15 x 0,7m |
| Push | 0,55m |
| Length of platform with extension | 1,7 x 0,7m |
| Ground clearance | 0,05m |
| Turning radius inside / outside | 0m / NA |
| Speed, high / low (km / h) | 4 / 0,8 |
| Rise ability max | 25% |
| Raise / lower time (sec) | 24 / 26 |
| Deck | marking-free |
| Drive | 2WD |
| Power source | 2 * 12/105 V / Ah batteries |
| Battery charger | 24/12 V/A |
| Length | 1,49m |
| Width | 0,76m |
| Height (railing up / down) | 1,93m / 1,59m |
| Weight | 860 kg |
| Dimensions | 149 × 76 × 193 cm |

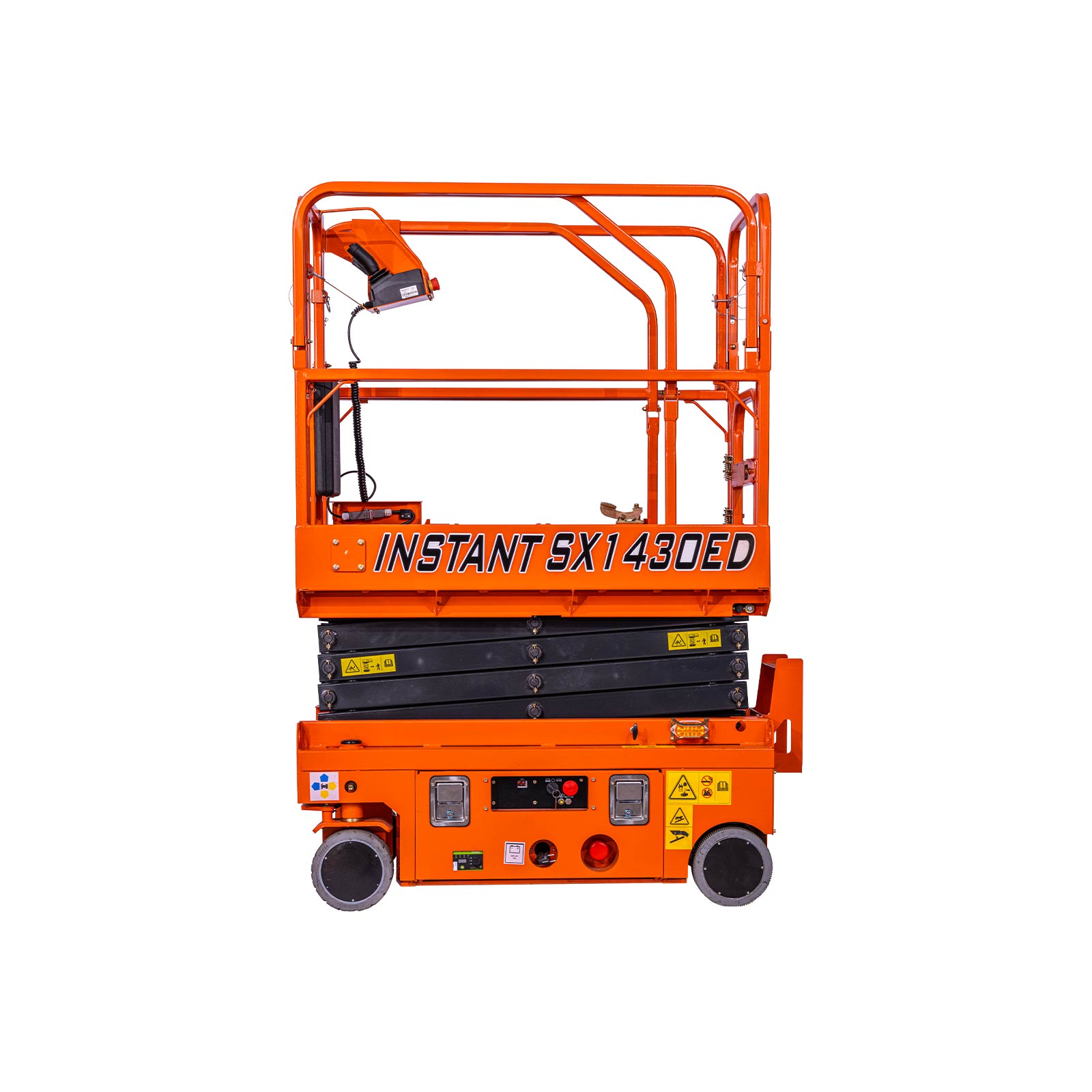

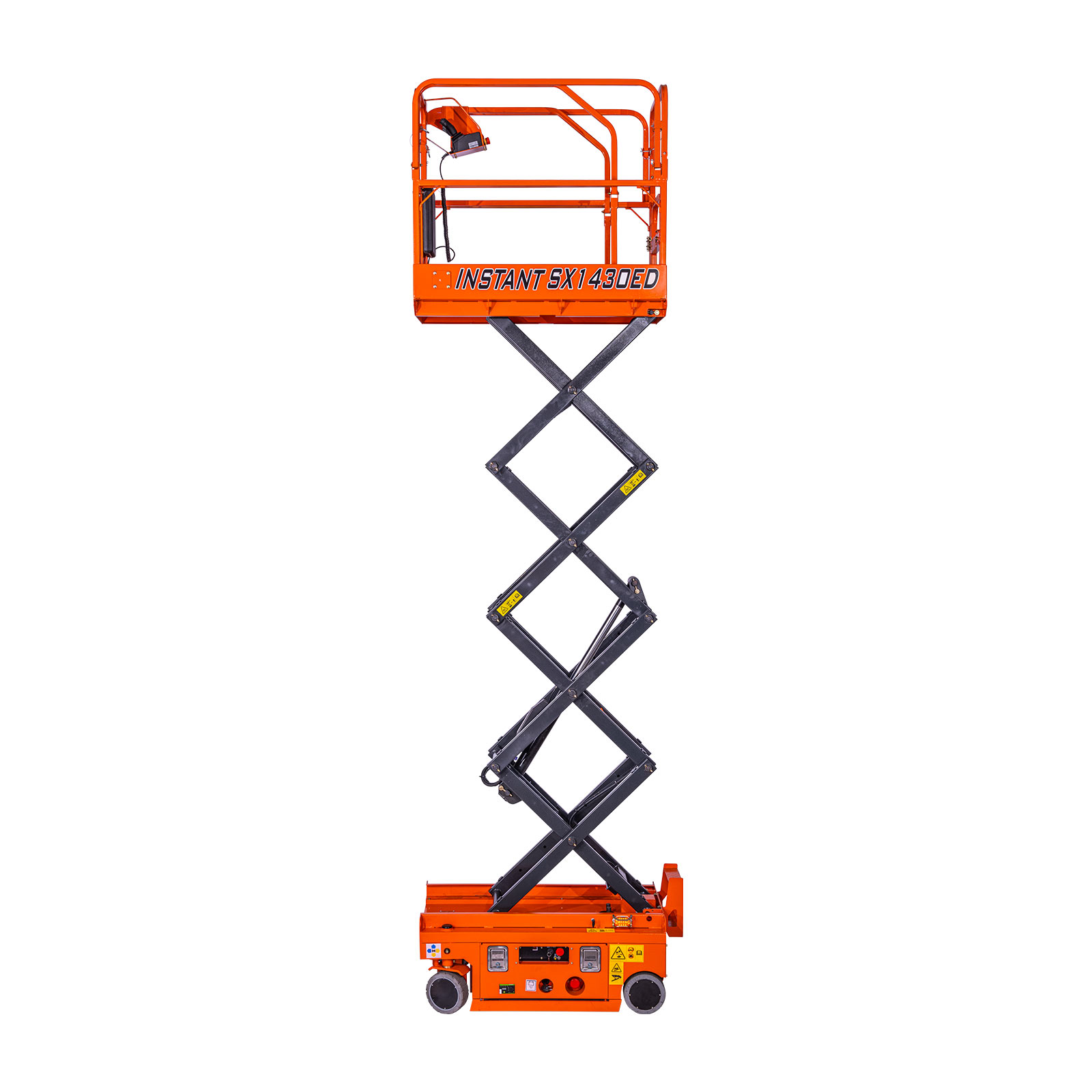

Instant SX1430ED – 6m
Versatile electric scissor lift for indoor use and / or flat surface. Lifting capacity of 240 kg and working height up to 5.9 m.
Instant SX1430ED has a very low noise level, no emissions and is well suited for indoor use. It can be driven from full height and has a extendable platform of 0.55m.
The lift also has a number of safety functions for safe operation, as well as a joystick with proportional control for lifting and driving which makes the lift very easy to use.
Call for Price
Send RequestStandard equipment:
- Battery powered
- Proportional driving
- 2WD
- Slide on platform
- Foldable railing
- Marking-free wheels
- Automatic braking system
- Emergency sink
- Emergency stop
- Self-diagnosis System
- Tilt sensor with alarm
- Motion alarm
- Hour meter
- Forklift pockets
- Warning light
- Integrated battery charger
- CE marked
